Brief Overview

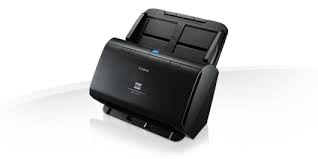

DR-C240, DUPLEX, 60SHT FEEDER 45PPM DOCUMENT SCANNER
Product Description
The DR-C240 is an ultra-compact and powerful desktop scanner featuring a
robust design and reliable paper handling for capturing multiple
document sizes and formats, including passports.
Type : Desktop type sheet-fed scanner
Scanning Sensor Unit: CMOS CIS 1 Line Sensor
Optical Resolution : 600 dpi
Light Source : RGB LED
Scanning Side: Front/ Back / Duplex
Interface : High speed USB 2.0
Dimensions (W x D x H)
Trays Closed : 291 mm x 175 mm x 182 mm (before the pickup tray is set)
Trays Opened : 291 mm x 603 mm x 363 mm
Weight: Approx. 3 kg
Power Requirements : AC 100 - 240V (50/60 Hz)
Power Consumption
Operation : 22W max
Sleep Mode : 1.7W max
Power Switch OFF: 0.5W max
Operating Environment: 10 - 32.5 °C
Humidity : 20 - 80 % RH
Environmental Compliance: RoHS and ENERGY STAR
Scanning Speed
Black and White
200dpi: 45ppm (simplex) / 90ipm (duplex)
300dpi: 45ppm (simplex) / 90ipm (duplex
Colour
200dpi: 30ppm (simplex) / 60ipm (duplex)
300dpi: 20ppm (simplex) / 40ipm (duplex)
Document Size
Plain Paper: Width: 50.8 mm to 216 mm
Length: 54 mm to 356 mm
(You can scan documents up to 3,000 mm long by setting the scanner to the Long Document Mode)
Business Card: 50.8 mm x 85 mm or lager
Plastic Card: 53.9 mm x 85.5 mm
Document Thickness
Plain Paper: 27 - 209 g/m2 (0.06 - 0.25 mm)
Business Card: Less than 0.45 mm
Plastic Card: 0.76 mm (Embossed Card up to 1.4 mm thick is supported)
Passport Scanning: Up to 4 mm thick (via carrier sheet)
Paper Separation: Retard Roller Method
Feeder Capacity: 6mm high document stack (up to a maximum of 60 sheets)
Output Resolution: 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Output Mode: Black & White / Error Diffusion / Advanced Text
Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level),
24-bit Colour
Suggested Daily Duty Cycle: Approx. 4000 scans
Special Features: Automatic Page Size Detection, Deskew, 3-Dimensional
Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Auto
Colour Detection, Shadow Cropping, MultiStream, Adjustable gamma
settings, Skip Blank Page, Folio Mode, Scan Area Setting, Batch
Separation with white blank sheet or patchcode, Moiré Reduction, Prevent
Bleed Through/Remove Background, Contrast Arrangement, Background
Smoothing, Shadow Cropping, Auto Resolution Setting, Double Feed
Release, Double Feed Detection (Ultrasonic Sensor, Length)
Bundled Software: ISIS / TWAIN Driver (Windows VISTA SP2 / 7 SP1 / 8 /
8.1 / Server 2008 R2 SP1 / Server 2012 R2), CapturePerfect,
CaptureOnTouch, eCopy PDF Pro Office, Kofax VRS, Plug-in: EMC Captiva
Cloud Runtime Controls
Consumables: Exchange Roller Kit, Carrier sheet (Passport), Carrier Sheet (A4)
Accessories: Flatbed Scanner Unit 101, Flatbed Scanner Unit 201, Barcode Module, 2D Code Module
Disclaimer
Disclaimer: All data is based on Canon standard testing methods except where indicated.
What's in the box?
- DR-C240 scanner
- Setup Disc
- Setup Guide
- Power Adapter
- USB Cable
- Carrier sheet
Product Specifications
45ppm Simplex & 90ipm Duplex
Up to Optical Res 600 dpi
60 Sheets Feeder Capacity
RGB LED Light Source
4K Scans Daily Volume
USB 2.0 Interface
Contact Image Sensor (CMOS)
Brochure for Canon imageFORMULA DR-C240 A4 Document Scanner
