Product Description

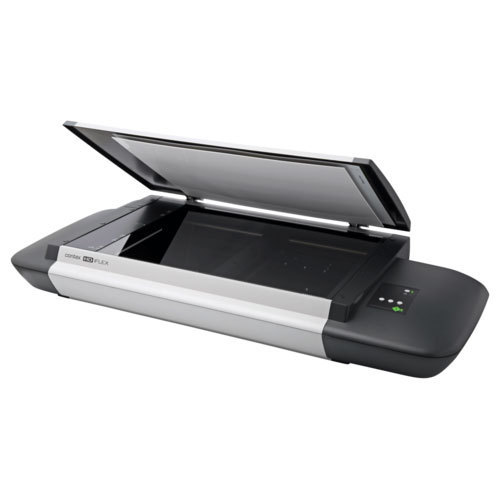

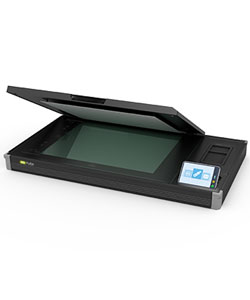

The IQ FLEX flatbed scanner is ideal for fragile originals, book scanning, textiles and artwork you would like to transform into digital content. Suitable for use by artists, colleges, designers, archivists, agencies, repro shops, textiles, furniture, construction and in engineering
Specifications
Scan Area : 18 x 24 in.
Maximum Image Area : 19.2" x 25.2"
Optical Resolution : 1200 x 1200 dpi
Maximum Resolution : 9600 dpi
Camera Type : CIS Camera (coupled with Contex CleanScan image enhancement)
Scan Speed : @ 200 dpi RGB Color or Grayscale or monochrome
Full Color 200 dpi Scan in 6 seconds.
Accuracy : 0.1% +/- 1 pixel
Data Capture (color/mono) : 48-bit/16-bit
Color Space : Adobe RGB / sRGB / Device RGB / Raw RGB
Connectivity
Supported OS : Windows 10, 8, ONLY
Cloud Destinations : Dropbox, Google Drive, Microsoft OneDrive, Box.com, HP Eprint
Network : Wireless (IEEE 802.11b, IEEE 802.11g, IEEE 802.11n) up to 150Mbps / Gigabit Ethernet
Software
Contex LINK networking and cloud access utility. WIDEsystem driver and scanner maintenance utility.64 Bit TWAIN Driver included for use with many applications
File formats : PDF, PDF/A, TIF and JPG
Extended File Formats (with Optional NextImage5) : TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, multi-page PDF and others
Embedded Controller
Touch Screen : 7” Multi Touch Screen. 800 x 480 pixels
Processor : Atom Quad-Core
Memory (RAM/Flash) : 8GB / 16GB
Destinations : Network PCs, Cloud, Email, Copy and USB key (USB3.0)
File Formats : PDF, PDF/A, TIF and JPG
Power, Weight & Dimensions
Weight & Dimensions LxWxH : 77 lbs. LxWxH: 46 x 26 x 8”
shipping weight 95 lbs.
Certifications/compliance
RoHS, cUL, CE, Customs Union, CCC, VCCI, KC, BSMI, Ukr, ENERGY STAR certified
Power Consumption (Ready / Sleep Mode / Scanning) : Max 10W / 0.5W / 23W – ENERGY STAR certified
Power Requirements : 100 – 240V, 60/50Hz, 80W
Product Specifications
Up to Scan Speed 6 Sec.
Up to Optical Res 1200 dpi
48-bit/16-bit Data Capture
7” Multi Touch Screen
8GB/16GB RAM Memory
USB, Network & Wireless
2 Year On Site Warranty
