Product Description
The Contex IQ Quattro 4400 Series feature an optical resolution of 1200 dpi and maximum resolution of 9600 dpi. The Contex IQ Quattro 4450 features a scan speed of 7 inches per second at 200dpi for both colour and monochrome and the Contex IQ Quattro 4490 features a scan speed of 14 inches per second at 200dpi for both colour and monochrome. The Contex IQ Quattro 4400 Series scan up to 44 inches/1118 mm and can take a maximum media width up to 47 inches/1194 mm. A maximum media thickness of up to 0.08 inch/2mm of flexible documents can be scanned. The IQ Quattro 4400 Series feature 64,800 pixels and for professional colour results, the Contex IQ Quattro 4400 Series uses X-Rite i1 profiles.
Contex applications create industry standard raster file formats that can be used with any CAD or GIS application, including AutoCAD, Microstation, ArcGIS, and all other CAD, GIS, image editing and storage applications.
Scan and archive all your document types easily with the Contex IQ Quattro 4400 Series. Engineering or construction plans can be scanned in standard file formats directly into project folders. The Contex IQ Quattro 4400 Series support standard document formats including PDF and PDF/A. These are formats that can be opened and printed in scale using Adobe Reader. PDF/A is designed for long term storage, and is a file format protected from changes and is recommended for storing as-builds and documentation. For sharing and collaboration, use the standard PDF as this enables highlighting and annotations.
Contex IQ Quattro 4000 Series large format scanners includes Nextimage software, an award-winning scanning software which features easy creation of TIF, JPG, PDF and PDF/A files and integration with cloud destinations including Google Drive, Box.com, DropBox, email, HP ePrint, Microsoft Sky Drive and more. Nextimage software is available in two versions: Nextimage Scan + Archive (included) for scan-to-file or Nextimage REPRO (30 day evaluation copy included) for scan-to-file & copy. Nextimage Scan+Archive software is a full featured scanning software including multipage (PDF, PDF/A and TIF), full image quality controls, and accounting tools. Nextimage features Automatic Image Quality for instant clean-up and alignment and comes with an integrated image viewer and an enable automatic file naming. The software is available in multiple languages, including English, Chinese, Dutch, French, German, Italian, Japanese, Korean, Spanish, Russian and Polish. Nextimage REPRO includes multifunction capabilities plus touch-screen compatibility and Network printer support. Nextimage REPRO includes ICC colour management, full copy functions, batch copy, set copy, nesting, and closed loop colour calibration. Nextimage can be installed on as many PC’s as you like, and is compatible with Windows 10, 8, 7, and Vista.
Optional items for the Contex IQ Quattro 4400 Series include: a low stand with paper catcher for side by side operation, and a high stand with paper catcher for side by side operation. The IQ Quattro 4450 is easily upgradable to meet your needs today and then grow along with your business. The IQ Quattro 4400 Series can be configured as part of a multi-function (MFP) solution. The IQ Quattro 4400 MFP ready solutions include the MFP REPRO, and ScanStation Pro, to fit the same space as your printer for convenient collaboration and use with existing printers for direct scan-to-print capabilities.
As you would expect from Contex, reliable performance is a given. For added peace of mind, Contex IQ Quattro 4400 Series large format scanners feature a 2-year return to factory warranty including a first year on-site swap-out extended warranty. Count on dependable support to create the best image possible from Contex and Design Supply. Ask us at Design Supply, and we can tailor the best solution possible for your needs.
What's in the box?
Contex IQ Quattro 4400 large format CIS scanner – 44-inch: (choose either IQ Quattro 4450 or IQ Quattro 4490)
2 m USB cable
power cable
Installation Sheet
Normalisation and calibration target
2 year return to factory warranty
First year on-site swap-out extended warranty
Software included:
WideSystem drivers
Nextimage TWAIN
Nextimage 30-day evaluation
Options:

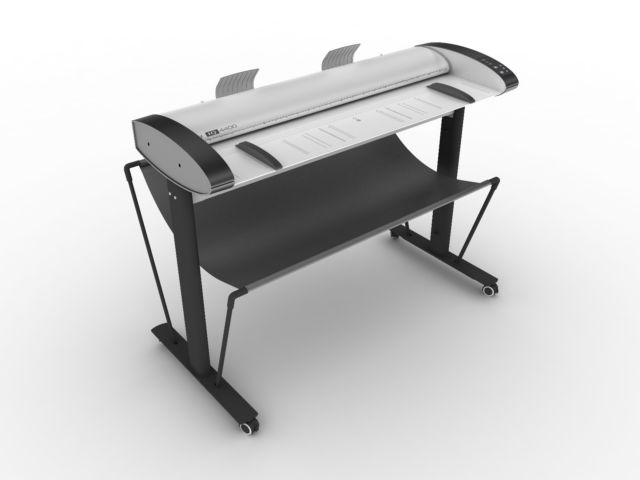

Ergonomic Low IQ Quattro 4400 Floor Stand with paper catcher (side by side operation or for scanning only) 32.3 x 33.3 x 34.3 inch/821 x 846 x 871 mm
High IQ Quattro 4400 Floor Stand (single footprint MFP solutions)
Nextimage Scan+Archive software (scan-to-file)
Nextimage REPRO software (scan-to-file & copy)
Electronic Upgrade from IQ Quattro 4450 to IQ Quattro 4490 for faster colour scan speeds
MFP Repro, full-featured solution with built-in work group collaboration capabilities (includes scanner, touch screen, Nextimage REPRO software, high stand or low stand)

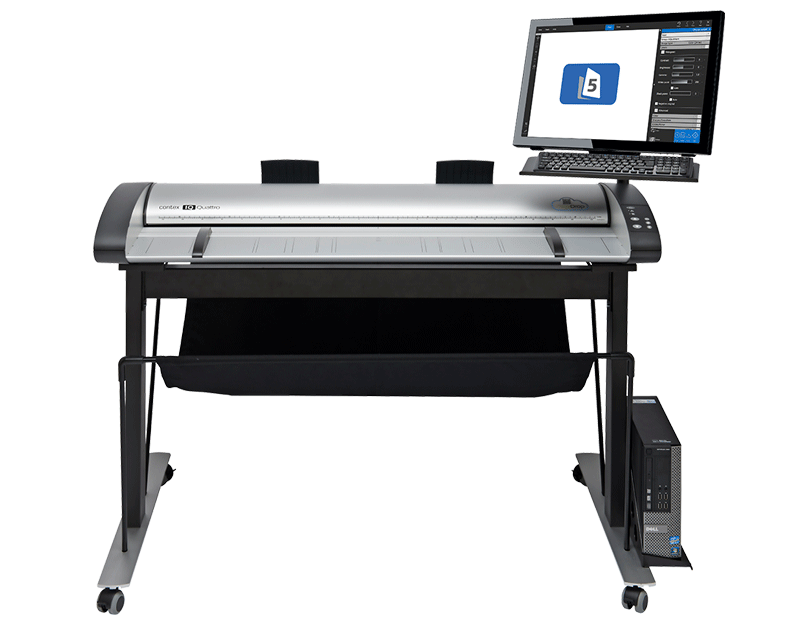

ScanStation Pro, a professional scan, copy, file and archive solution (includes scanner, 21.5 HD touchscreen, Nextimage REPRO software, height-adjustable stand, PC basket and keyboard tray, just add your choice of PC)
Large format printer
Warranty upgrade options (annual price for Year 2 onwards):
Diamond – on-site first 2 years PLUS installation and training
Platinum – on-site first 2 years OR additional years annual cost
Platinum – on-site first 3 years
Gold – swap-out first 2 years OR additional years annual cost
Gold – swap-out first 3 years
Annual on-site supplement for Ireland (£150 plus transport from airport)
Scanner installation and training (1 day)
Product Specifications
Up to Print Width 36"
Up to Optical Res 600 dpi
64800 Number of Pixels
0.08" Max. Media Thickness
48-bit/16-bit Data Capture
USB & Network Interface
2 Year on Site Warranty
Brochure for Contex IQ Quattro 4400 36" Large Format Scanner
