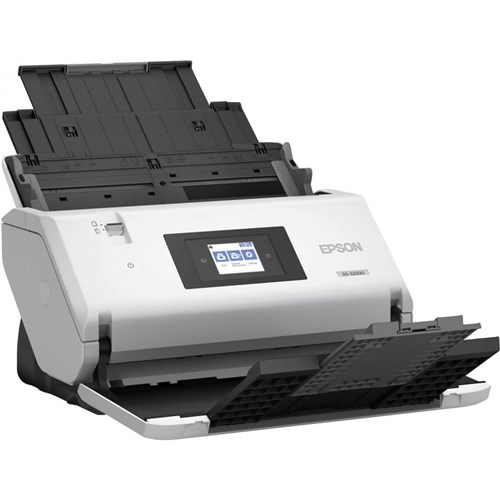

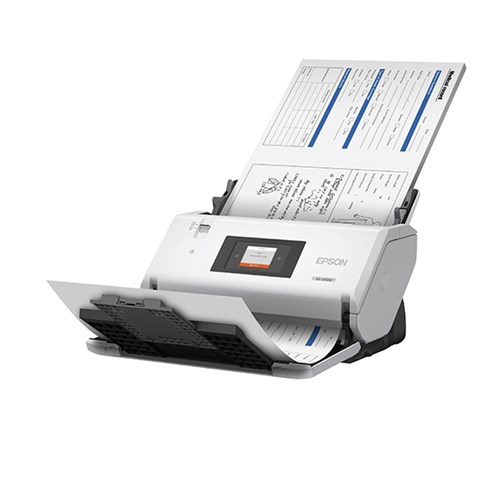

Epson WorkForce DS-32000 A3 Document Scanner

Brief Overview

EPSON WORKFORCE DS-32000 A3 90PPM 120SHT ADF DESKTOP SCANNER

Product Description

Thanks to Epson's new Complex Production Architecture, the DS-32000 has been engineered to the highest standards to meet the demands of busy office environments. The DS-32000 features a unique adjustable chassis design - Normal, Horizontal and Compact - allowing customers to choose the best physical position for their scanning needs. When in the compact position, the unit folds for easy storage. The inbuilt advanced paper-protection sensors also prevent documents from being damaged and ultra-sonic sensors ensure all documents are scanned, maintaining data integrity.

High in capacity and with a robust design, the Automatic Document Feeder (ADF) has the ability to scan the widest range of media in its class¹. Scan passports, passbooks, ID cards and large-format documents

Put users in control with a 2.7" backlit touchscreen that can display pre-defined scan jobs and highlights machine cleaning and maintenance requirements with easy-to-follow, step-by-step instructions.
The DS-32000 comes with Document Capture Pro 3.0 software with inbuilt OCR functionality supporting crisp, clear images. A wide range of drivers, including TWAIN, ISIS, WIA, SANE, and ICA, allow for easy integration into most document management systems.

Features:
Ultra fast speeds – up to 90 ppm / 180 ipm1
Built for busy offices – 120-sheet Auto Document Feeder; plus, peak daily duty cycle of 40,000 sheets2
Flexible feed options – vertical feed for high-volume scanning; horizontal feed for sealed envelopes, folded papers and delicate sheets
Reliability you can count on – industry-leading service and support
Versatile paper support – scan documents up to 12" x 17", folded pages, plastic cards, sealed envelopes, passports3 and more
Easy to use – large, adjustable, 2.7" touchscreen display for easy access to scan jobs, settings and maintenance features
Compact – flexible design fits your workspace and makes storage easy
Seamless compatibility with document management systems – TWAIN and ISIS® drivers included
Advanced paper feeding system – Slow Mode for delicate sheets; Double-feed Detection to prevent missing pages; also features Paper Protection function, Power Seperation Mode and more
Create Searchable PDF's – or scan to online storage accounts with powerful Document Capture Pro Software

WorkForce DS-32000 B11B225508
TECHNOLOGY
SCANNER TYPE Sheet Feed, one pass duplex A3 colour scanner
OPTICAL RESOLUTION 600 DPI x 600 DPI (Horizontal x Vertical)
PAPER FORMATS A4, A5, A6, B6, B5, B4, Letter, Legal, Postcard, Business cards, Plastic cards, A3 with stitching function
COLOUR DEPTH Input: 30 Bits Colour , Output: 24 Bits Colour
ULTRASONIC DETECTOR Yes
APPLICATION High Capacity, General Office
PEAK DAILY VOLUME 40,000 pages per day
FILE COMPRESSION TIFF Compression (JPEG(7) , CCITT G4, LZW), PDF Compression, JPEG compression
MAXIMUM EFFECTIVE SCAN AREA
DOCUMENT SIZE A3, A4, A5, A6, A7, A8, C4 (Envelope), C5 (Envelope), C6 (Envelope), Postcard, Business cards, Plastic cards
INPUT TRAY CAPACITY 120 sheets (Based on 75g/m2 paper) A4/Letter: 120 sheets; A3: 60 sheets; Plastic Card (embossed): 1 card; Plastic Card (without emboss): 5 cards; Business Card: 30 cards; Postcard: 40 sheets; Long Paper: 1; Envelope: 10 envelopes; Carrier Sheet: 10 carrier sheets; Passport: 1 passport with passport carrier sheet; Delicate position Letter/A4: 20 sheets
PAPER WEIGHT Auto loading: 20 - 413 g/m², Manual loading:20 - 413 g/m²
SCANNING SPEED
(A4/Letter Size) Monochrome: 90 pages/min - Colour: 90 pages/min measured with Size: A4 , Resolution: 300dpi, Monochrome: 180 image/min - Colour: 180 image/min measured with Size: A4 , Resolution: 300 dpi
FUNCTIONS
OUTPUT FORMATS BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, JPEG(Colour/Greyscale), PNG, docx, xlsx, pptx
BUNDLED SOFTWARE Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2
SUPPORTED PLATFORMS
OPERATING SYSTEMS Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP SP3
INTERFACE USB 3.0
DRIVERS TWAIN, ISIS (Web download), Epson Scan2 (TWAIN), SANE (Linux), WIA (Windows)
ENVIRONMENTAL CONDITIONS
TEMPERATURE Operation 5° C - 35° C, Storage 25° C - 60° C
HUMIDITY Operation 15% - 80%, Storage 15% - 85%
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 100-240V
FREQUENCY 50 to 60Hz (Rated)
47 to 63Hz (Input)
POWER CONSUMPTION Operating: 30W
Ready mode: 10W
Sleep mode: 1.5W
Power Off: 0.1W
DIMENSIONS
WIDTH x DEPTH x HEIGHT 371 x 208 x 219 mm (Width x Depth x Height)
WEIGHT Approx. 5.8kg
WHAT'S IN THE BOX
AC adapter, Driver and utilities (CD), Main unit, Power cable, Setup guide, USB cable, Warranty card
PRODUCT OPTIONS Item Code Description
B12B819611 Pickup Roller
B12B819631 Separation Roller
B12B819051 Carrier Sheet (5)
B12B819651 Passport Carrier Sheet
B12B819291 Cleaning Kit

WARRANTY
Standard 12 Months Warranty RTB (Return to base)

What's in the box?

AC adapter, Driver and utilities (CD), Main unit, Power cable, Setup guide, USB cable, Warranty card
