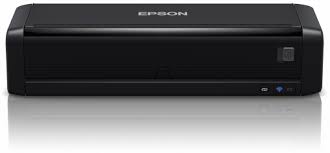

Epson WorkForce DS-360W A4 Document Scanner

Brief Overview

The wireless, compact duplex document scanner with exceptional speed.

Product Description

The Epson WorkForce DS-360W is an A4 business scanner that delivers high quality document scanning. This scanner reliably provides a cable-free scanning solution with a built-in battery and wireless connectivity for scanning to mobiles, tablets and computers.
Epson WorkForce DS-360W     B11B242501
SCANNER TYPE     Sheet-fed, one-pass duplex A4 colour image scanner
OPTICAL RESOLUTION     ADF: 600 x 600 dpi (Horizontal x Vertical)
SENSOR TYPE     Contact Image Sensor (CIS)
LIGHT SOURCE     3 Colour RGB LED
MAXIMUM EFFECTIVE SCAN AREA
SIZE     ADF: 215.9 x 1,117.6mm (Horizontal x Vertical)
GRAYSCALE     24-bit external
24-bit internal
COLOUR     48-bit external
48-bit internal
INTERFACE     USB 3.0++
Optional Network Interface Unit (RJ-45, 10BaseT/100BaseTX)
++The functionality of the USB port(s) must be ensured by the vendor of the Host.
USAGE
DAILY DUTY CYCLE     500 sheets
BUTTONS     Power, Scan, Stop, Connect
SCANNING SPEED*
MONOCHROME
COLOUR     A4 300dpi
A4 300dpi     25ppm/50ipm
25ppm/50ipm
*Scanning speed test results vary according to system configuration, dpi setting, and scan mode setting.
*Resolution : 200/300dpi, using AC adaptor
ADF
TYPE     Sheet-fed through, duplex scanning
PAPER SUPPLY     A4, A5, A6, B5, B6, C4 (Envelope), C5 (Envelope), C6 (Envelope), No. 10 (Envelope), Letter,Letter Legal, Postcard, Business cards, Plastic cards
DOCUMENT SIZE     Max. size: 215.9 x 1,117.6 mm
Min. size: 50.8 x 70 mm
PAPER SETTING CAPACITY     20 pages (75g/m2)
PAPER WEIGHT     50-230g/m2
FUNCTIONS
EASY DOCUMENT SCANNING     Double sided scanning of PDF
Searchable PDF (Windows only)
Scan to Mutli PDF
Encrypted pdf
Compression pdf
Stand-Alone Application and Scan to File Feature
Multi Purpose User Interface
Auto Skew Correction
Multi Marquee
DOCUMENT IMAGE ADJUSTMENT     Text enhancement
Colour enhancement
Dropout colour
Unsharp Mask
De-Screening with Document Type Optimiser
Tone Curve Adjustment with Histogram
SUPPORTED PLATFORMS
Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP SP2 or higher
ENVIRONMENTAL CONDITIONS
TEMPERATURE     10°C to 35°C (Operating)
-25°C to 60°C (Storage)
HUMIDITY     20% to 80% without condensation (Operating)
20% to 85% without condensation (Storage)
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE     AC100-240V     50-60Hz
POWER CONSUMPTION     Approx. 11W (Operating)
Approx. 0.8W (Sleep Mode)
Approx. 5.8W (Ready Mode)
Approx. 1.5W (Power Off)
BUNDLED SOFTWARE*
Epson Scan2
Epson Document Capture Pro
ABBYY FineReader
NewSoft Presto! Page Manager
Online User Guide
ISIS driver for Windows**
WARRANTY
12 months return to base: Standard
Optional Additional 2 Year Warranty: 3YWDS3630W
Epson Warranty
DIMENSIONS
WIDTH: 288mm
DEPTH: 88.5mm
HEIGHT: 67/5mm
WEIGHT:Approx. 1.3kg

What's in the box?

CD Manual, Main unit, Power cable, USB cable, User guide
