Brief Overview

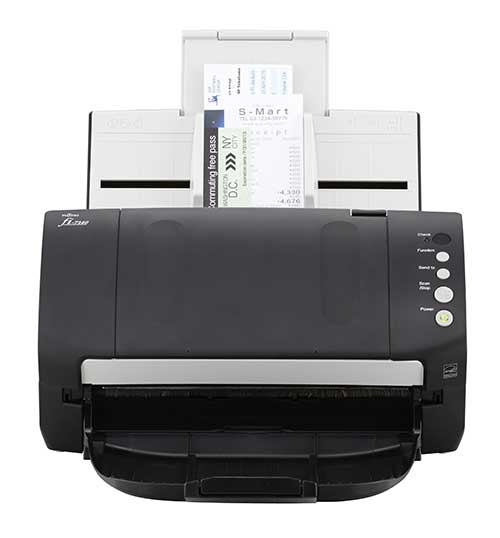

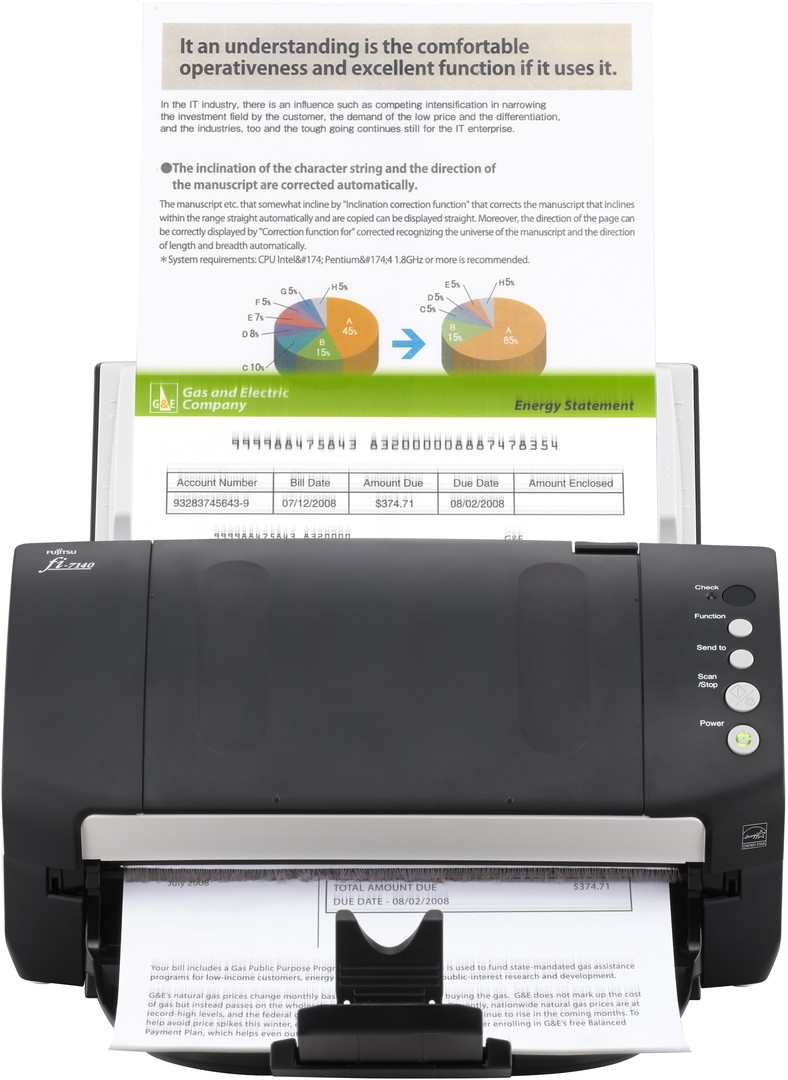

Fujitsu fi-7140 - Document scanner - Duplex -40ppm (80ipm), 80p ADF, A4, True Duplex, USB2. 1 year warranty RTB.
Product Description
The Fujitsu fi-7280 is a desktop A4 document scanner, featuring a large volume hopper with an 80 page ADF and a high speed A4 flatbed. It replaces the Fujitsu fi-6240Z scanner. Fujitsu's fi-7280 ADF scanning speed is rated at an amazing 80ppm or 160ipm in duplex mode.
Specifications
Description fi-7140
Supported operating systems Windows® 10 (32-bit/64-bit), Windows® 8/8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Linux (Ubuntu 16.04 / 14.04 LTS)
Sensor type Automatic Document Feeder (ADF)
Scanning modes Simplex / Duplex, Color / Grayscale / Monochrome
Image sensor type Color CCD (Charge-coupled device) x 2 (front x 1, back x 1)
Light source White LED Array x 2 (front x 1, back x 1)
Multifeed detection Ultrasonic multi-feed detection sensor x 1, Paper detection sensor
Document size Maximum 216 x 355.6 mm (8.5 x 14 in.)
Minimum(1) 50.8 x 54 mm (2 x 2.13 in.) (Landscape / Portrait)
Long paper scanning(2) 216 x 5,588 mm (8.5 x 220 in.)
Paper weight(3)
(Thickness) Paper 27 to 413 g/m² (7.2 to 112 lb.)
*A8 size: 127 to 209 g/m² (34 to 56 lb.)
Plastic Card 1.4 mm or less(4)
Scanning speed(5)
(A4, Portrait) Color(6) Simplex: 40 ppm, Duplex: 80 ipm
(200 / 300 dpi)
Grayscale(6)
Monochrome(7)
Paper chute capacity
(A4 Portrait)(8) 80 Sheets ( A4: 80 g/m² or 20 lb. )
Background colors White / Black (Selectable)
Optical resolution 600 dpi
Output resolution(9) Color (24-bit) 50 to 600 dpi
(adjustable by 1 dpi increments), 1200 dpi (driver)(10)
Grayscale (8-bit)
Monochrome (1-bit)
Output format Color 24-bit
Grayscale 8-bit
Monochrome 1-bit
Internal video processing 1,024 levels (10-bit)
Interface USB 2.0 / USB 1.1
Connector shape B type
Image processing functions Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Halftone, De-Screen, Emphasis, Color cleanup, Dropout color (None / Red / Green / Blue / Saturation), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Automatic page size detection
Power requirements AC 100 to 240 V ±10%
Power consumption Operating: 36 W or less
Sleep mode: 1.8 W or less
Auto standby (OFF) mode: 0.35 W or less
Operating environment Temperature: 5 to 35 °C (41 to 95 °F)
Relative humidity: 20 to 80% (Non-condensing)

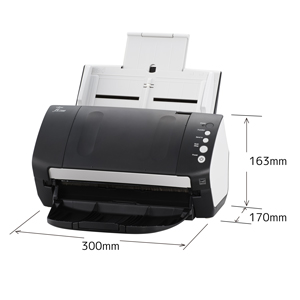

Dimensions: Width x Depth x Height(11) 300 x 170 x 163 mm (11.81 x 6.69 x 6.42 in.)
Weight 4.2 kg (9.26 lb.)
Included software / drivers PaperStream IP (TWAIN/TWAIN x64/ISIS), Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series(12), Scan to Microsoft SharePoint(12), ABBYY FineReader for ScanSnap™(12), Scanner Central Admin Agent
Environmental compliance ENERGY STAR® / RoHS
Included items ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
What's in the box?
ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
Product Specifications
40ppm Simplex & 80ipm Duplex
Up to Optical Resolution 600 dpi
80 Pages ADF Capacity
4K Sheets Daily Duty Cycle
White/Black Background Colors
USB 2.0 / USB 3.0 Interface
One Year Return to Base Warranty
Brochure for Fujitsu Image FI-7140 A4 Document Scanner
