Brief Overview

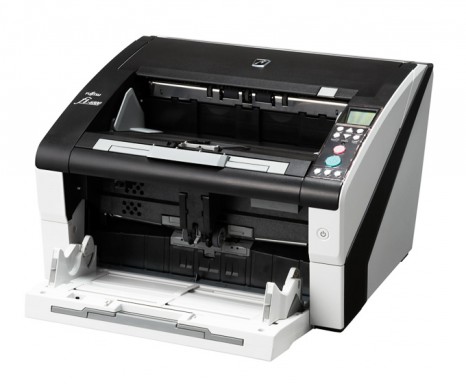

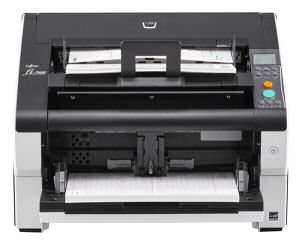

Ricoh FI-7900 Document Scanner A3 Duplex, 140 PPM, 500 Sheet, USB3.1
Product Description
The Ricoh fi-7900 is a production level A3 document scanner, featuring a 500 page ADF. Ricoh's fi-7900 ADF scanning speed is up to 140ppm or 280ipm in duplex mode even in colour. The fi-7900 features advanced image processing functions.
The fi-7900 also offers excellent paper handling for such a fast scanner, enabling the scanning of batches of documents of varying thickness and size. Consumables are easy to replace and far more cost effective than competing products.
Specifications:-
Product Name fi-7900
Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed(1) (A4 Landscape)(Color(2)/Grayscale(2)/Monochrome(3)) Simplex: 140 ppm (200/300 dpi)
Duplex: 280 ipm (200/300 dpi)
Scanning Speed(1) (A4 Portrait)(Color(2)/Grayscale(2)/Monochrome(3)) Simplex: 105 ppm (200/300 dpi)
Duplex: 210 ipm (200/300 dpi)
Image Sensor Type Color CCD x 2 (front x 1, back x 1)
Light Source White LED Array x 4 (front x 2, back x 2)
Optical Resolution 600 dpi
Output Resolution(4)
(Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)(5)
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White / Black (selectable)
Document SizeMaximum304.8 x 431.8 mm (12 x 17 in.)
Minimum52 x 74 mm (2 x 3 in.)
Long Page Scanning(6)5,588 mm (220 in.)
Paper Weight (Thickness)A4 to A5 Size20 to 209 g/m² (5.4 to 56 lb)
Less than A5 Size / Over A4 Size41 to 209 g/m² (11 to 56 lb)
ADF Capacity(7) 500 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume(8) 120,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor), Length detection
Paper Protection Lag detection
Interface USB 2.0 / USB 1.1
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode 200 W or less
Sleep Mode 3.2 W or less
Auto Standby (Off) Mode Less than 0.3 W
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions(9) (W x D x H) 460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.)
Weight 32 kg (70 lb) or less
Supported Operating System Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit)
Included Software / Drivers PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA Driver(10), PaperStream Capture, 2D Barcode for PaperStream(11), Software Operation Panel, Error Recovery Guide, Scanner Central Admin
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal, Automatic profile selection
Included Items AC cable, USB cable, Setup DVD-ROM
What's in the box?
AC cable, USB cable, Setup DVD-ROM
Product Specifications
140ppm Simplex & 280ipm Duplex
Up to Optical Res 600 dpi
500 Sheet ADF Capacity
120K Sheet Daily Volume
4xWhite LED Light Source
USB 1.1 / USB 2.0 Interface
One Year Limited Warranty
Brochure for Ricoh Image FI-7900 A3 Document Scanner
