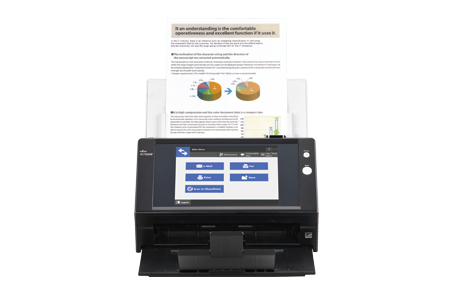

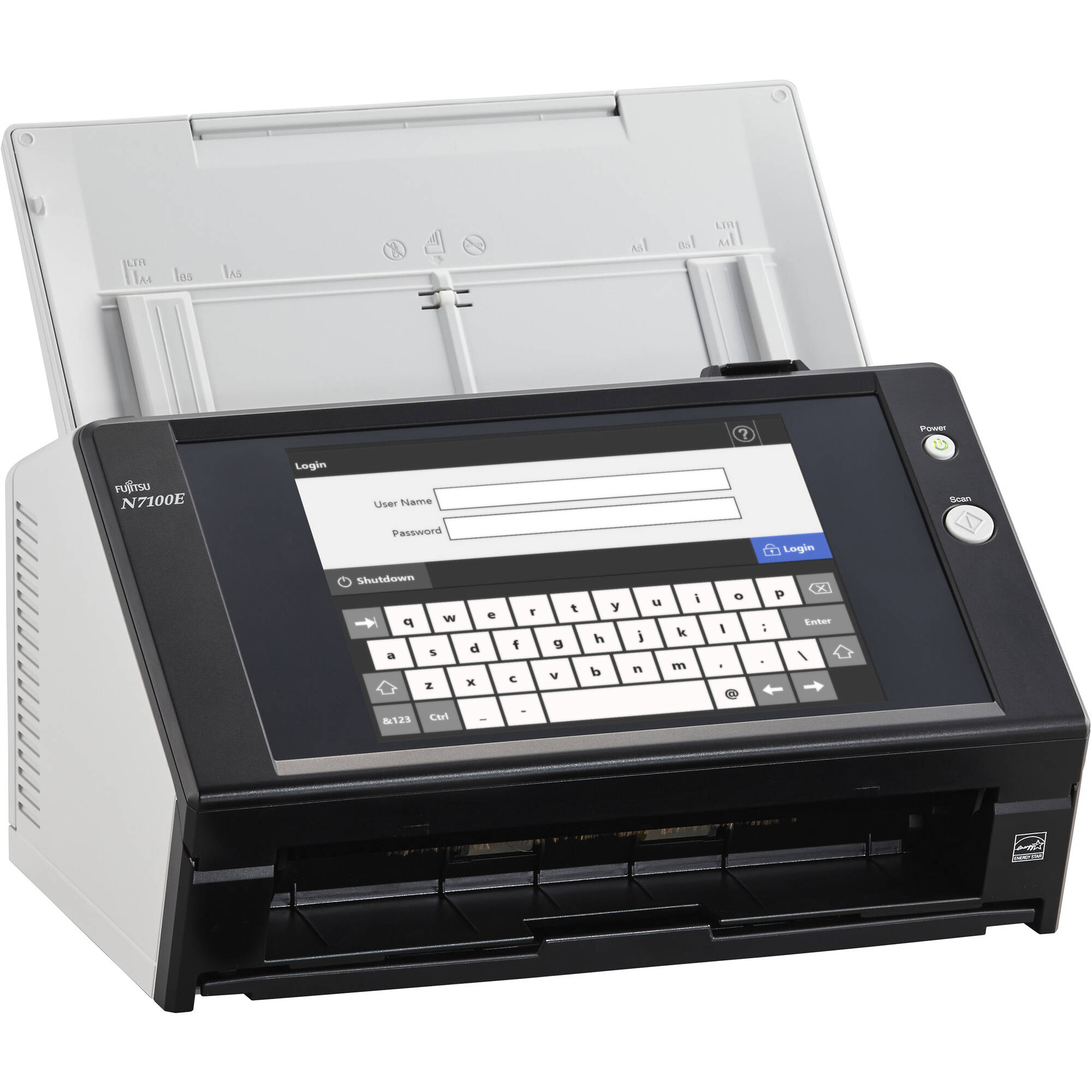

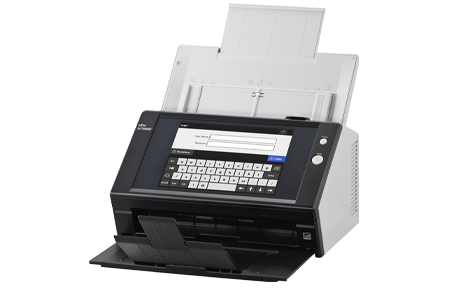

Ricoh Image N7100E A4 Document Scanner

Brief Overview

Product Description

The N7100E network scanner secures stand-alone network operations and improves business processes with scanning speeds of 25 ppm/50 ipm (A4 portrait, 200/300 dpi), ADF capacity of 50 sheets.

Scanner Type ADF (Automatic Document Feeder), Duplex
Scanning Speed (1) (A4 Portrait)
(Color (2)/Grayscale (2)/Monochrome (3)) Simplex 25 ppm (200/300 dpi)
Duplex 50 ipm (200/300 dpi)
Image Sensor Type Color CIS x 2 (front x 1, back x 1)
Light Source 3 Color LED
Optical Resolution 600 dpi
Output Resolution (4)
(Color / Grayscale / Monochrome) 150, 200, 300, 600 dpi, Custom (50 to 600 dpi), Auto
Output File Formats PDF (searchable/password-protected/compressed/marker index processed), JPEG, TIFF (single/multipage), page output in reverse order
Output Methods Save image data to network folder/SharePoint/FTP server, Send image data by E-mail, Print (5) (Send image data to printer server or network printer), Send image data by FAX (Send image data to FAX server or internet FAX in E-mail format)
Background Colors White
Document SizeMaximum (6)216 x 355.6 mm (8.5 x 14 in.)
Minimum50.8 x 50.8 mm (2 x 2 in.)
Long Page Scanning (6) (Maxim)3,048 mm (120 in.)
Paper Weight (Thickness)Paper40 to 209 g/m² (11 to 56 lb) (8)
Plastic Card0.76 mm (0.029 in.) or less (9)
ADF Capacity (10)(11) 50 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume (12) 4,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor)
Authentication User Authentication Active directory or Open LDAP (for Solaris or Linux), Standalone authentication (13)
Folder Authentication Active directory or Open LDAP(for Solaris or Linux)
Network Interface 10BASE-T, 100BASE-TX, 1000BASE-T
Network Protocols TCP/IP (IPv4/IPv6), DHCP (IPv4/IPv6), SMTP, SMB, LDAP, LDAPS, NTP, FTP, FTPS, HTTP,HTTPS
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode 38 W or less
Energy-saving Mode 2 W or less(14)
Power Off Mode 0.3 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Display LCD 8.4 in. XGA (1,024 x 768 pixels) TFT color monitor
Touch Screen Analog resistive touch screen
Keyboard Software keyboard
Dimensions (15) (W x D x H) 300 x 232 x 172 mm (11.8 x 9.1 x 6.8 in.)
Weight 6 kg (13 lb)
Included Items AC cable, AC adapter, LAN cable, Getting Started

What's in the box?

AC cable, AC adapter, LAN cable, Getting Started
