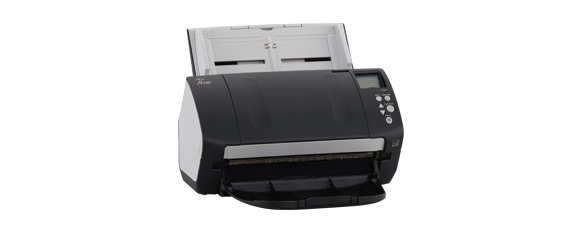

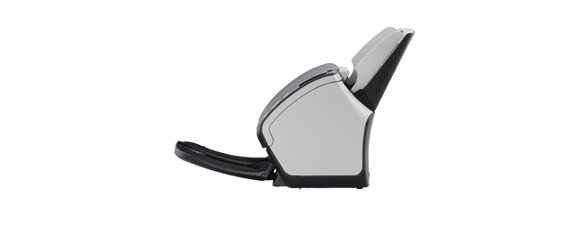

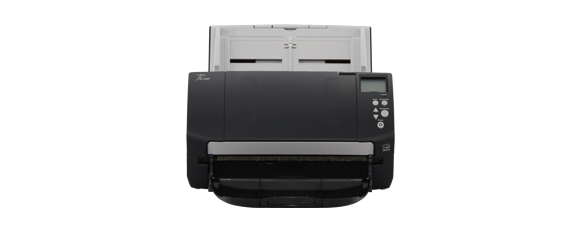

Fujitsu Image fi-7180 A4 Document Scanner

Brief Overview

FUJITSU FI-7180 DOC SCANNER (A4, DUPLEX) 80PPM,80SHT ADF,600 DPI

Product Description

The fi-7180 has been introduced to support increasingly diverse business related document capture routines at the desktop of individual knowledge workers or small workgroups. Simple, productivity-boosting operation virtually eliminates training requirements

Specifications
Model fi-7180
Functional Specifications
Image Sensor Type Color CCDs (Color Charge Coupled Device)
Light Source White LED Array
Optical Resolution 600 dpi
Output Resolution(1) Color (24-bit) 50 to 600 dpi
(adjustable by 1 dpi increments, 1,200 dpi(2))
Grayscale (8-bit)
Monochrome
Output Color Depth Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Internal Video Processing 65,536 levels (16-bit)
Image Processing Function
Hardware Dropout color (Red /Green /Blue), Deskew cropping
Software Multi-image, Blank page skip, i-DTC, Advanced-DTC, Simplified-DTC, sRGB, Auto color, Deskew cropping, Hole punch removal, Tab cropping, Upper lower separation, Error diffusion, Dither, Moire removal, Image Emphasis, Color cleanup, Dropout color (R,G,B, None, white, Specified, Color Saturation), Edge repair, Vertical Streaks Reduction
Scanning Speed(3)
(A4, Portrait) Color(4)
Grayscale(4)
Monochrome(5) ADF Simplex: 80 ppm, Duplex: 160 ipm
(200 dpi / 300 dpi)
ADF capacity(6) 80 Sheets (A4: 80 g/m² or 20 lb.)
Daily Duty Cycle 6,000 Pages
Document Size ADF minimum 50.8 mm x 54 mm (2 in. x 2.13 in.)
ADF maximum(7) 216 mm x 355.6 mm (8.5 in. x 14 in.)
Long Document 216 mm x 5,588 mm (8.5 in. x 220 in.) (18.3 ft.) (8)
ADF Feeding
Paper Weight
(Thickness) Letter 27 to 413 g/m² (7.2 to 110 lb.)
A8 sheets 127 to 209 g/m² (34 to 56 lb.)
Card(9) Up to 1.4 mm portrait and landscape feeding(10)
Interface(11) USB 3.0 / USB 2.0 / USB 1.1 (backward compatible)
Minimum PC Specification PaperStream IP i5 2.5 MHz Processor, 4 GB RAM
Physical Specifications
Power Requirements 100 to 240 VAC ± 10 %
Power Consumption Operating mode: 38 W or less, Sleep mode: 1.8 W or less, Auto Standby(Off) mode: 0.35 W or less
Dimensions (WxDxH) 300 mm x 170 mm x 163 mm (11.8 in. x 6.7 in. x 6.4 in.)
Weight 4.2 kg (9.26 lb.) or less
Environmental Compatibility ENERGY STAR® / RoHS
Operating Environment Temperature 5 °C to 35 °C (41 °F to 95 °F )
Relative Humidity 20 % - 80 % (non-condensing)
Inbox Contents ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM,
Getting Started Guide
Bundled Software PaperStream IP (TWAIN/ISIS) Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, 2D Barcode for PaperStream , ABBYY FineReader for ScanSnap, Scanner Central Admin Agent
Options Post-scan Imprinter, Carrier Sheet, PaperStream Capture Pro
OS Support Windows® 10 (32-bit/64-bit), Windows® 8 / 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows XP® (32-bit/64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Linux(Ubuntu 16.04 / 14.04 LTS)
Feed Detection Features Ultrasonic Double Feed Detection Sensor, iSOP (Intelligent Sonic Paper Protection), Intelligent Multi-Feed Function (Manual Bypass)
Other Features Embossed Card Scanning Capability, Long Document Scanning, Scanner Central Admin management, USB 3.0 Support, iSOP (Intelligent Sonic Paper Protection), Automatic: Color Recognition, Paper-Size Detection, De-skew Correction

What's in the box?

ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM,
Getting Started Guide
