Brief Overview

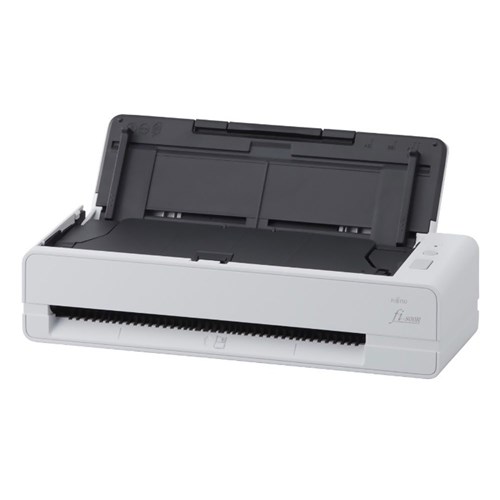

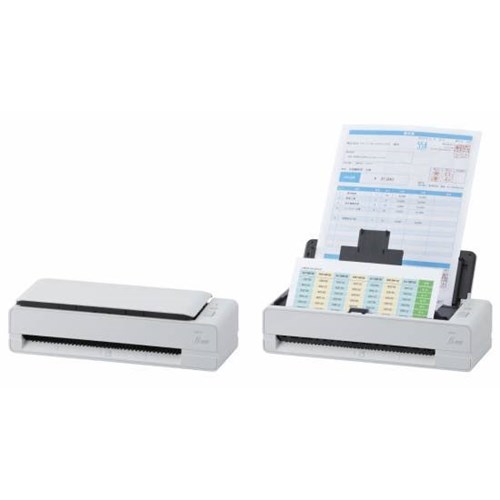

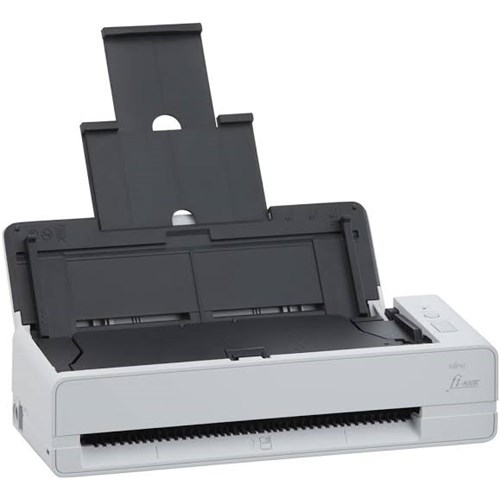

Ricoh FI-800R A4 Duplex Colour 40PPM Twain ISIS USB 3.2 Scanner - 1 Year Warranty
Product Description
The fi-800R achieves scanning speeds of 40 ppm/80 ipm with ADF and 3.5 seconds per sheet with Manual Feed (A4 portrait, color, 200/300 dpi), and is capable of scanning up to as many as 4,500 sheets a day.
With its compact design, the scanner is ideal to use when space is limited, enabling better customer onboarding in spaces like reception desks and service counters. Its unique technologies assist both booklet scanning and continuous ADF document scanning with stable feeding, and reduce operator workload allowing users to provide better customer service.
Return Scan for passports and ID cards scanning
U-turn Scan with Automatic Stacking Technology for comfortable continuous scanning
Automatic Skew Correction and Active Separation structure to ensure reliable feeding
Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
PaperStream Capture Pro available as an option
Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed (1) (A4 Portrait)
(Color (2)/Grayscale (2)/Monochrome (3)) ADF Simplex: 40 ppm (200/300 dpi)
Duplex: 80 ipm (200/300 dpi)
Manual Feed 3.5 seconds (200/300 dpi)
Image Sensor Type CIS x 2 (front x 1, back x 1)
Light Source RGB LED (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution (4)
(Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) (5)
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White
Document SizeMaximum215.9 x 355.6 mm (8.5 x 14 in.)
Minimum50.8 x 50.8 mm (2 x 2 in.)
Long Page Scanning (6)5,588 mm (220 in.)
Paper Weight (Thickness)ADFPaper: 40 to 127 g/m² (11 to 34 lb)
For A6 or smaller: 40 to 209 g/m² (11 to 56 lb)
For A8 or smaller: 127 to 209 g/m² (34 to 56 lb)
Manual FeedPaper: 20 to 413 g/m² (5.4 to 110 lb)
Plastic card: 1.4mm or less
Booklet: 5mm or less
ADF Capacity (7) 20 sheets (A4 80 g/m² or Letter 20 lb)
30 sheets (A4 52 g/m² or Letter 14 lb)
Expected Daily Volume (8) 4,500 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor)
Interface USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode 19 W or less
Sleep Mode 1.7 W or less
Auto Standby (Off) Mode 0.15 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions (9) (W x D x H) 296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.)
Weight 2.0 kg (4.4 lb)
Supported Operating System Windows® 10 (10), Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008 (11), macOS, Linux (Ubuntu)
Included Software / Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver (12), Image Scanner Driver for macOS (ICA) (12)(13), Image Scanner Driver for Linux (SANE) (12)(13), PaperStream Capture, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™ (13), Scanner Central Admin
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal
Included Items AC cable, AC adapter, USB cable, Setup DVD-ROM
What's in the box?
AC cable, AC adapter, USB cable, Setup DVD-ROM
Product Specifications
40ppm Simplex & 80ppm Duplex
Up to Optical Res 600 dpi
20 Sheet ADF
4.5K Sheets Daily Volume
White Background Colors
USB Interface
One Year Limited Warranty
Brochure for Ricoh Image fi-800R A4 Document Scanner
