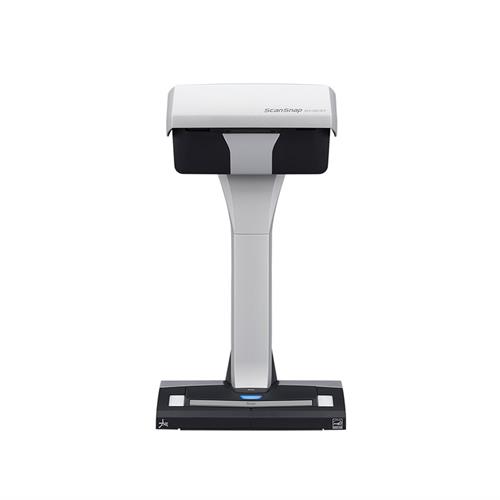

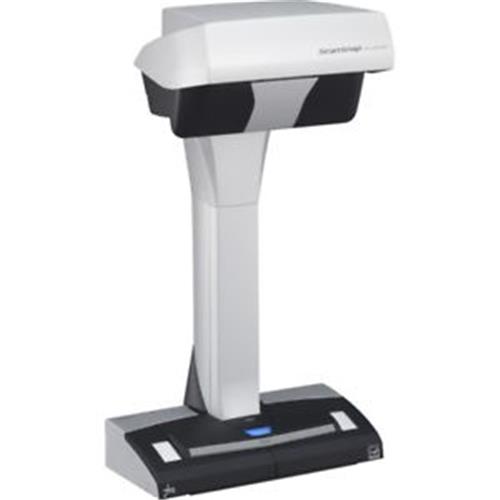

Ricoh ScanSnap SV600 A3 Overhead Document Scanner

Brief Overview

Ricoh Scanner SV600, Overhead Scanning, Up to A3, USB 2.0, 1 year Warranty

Product Description

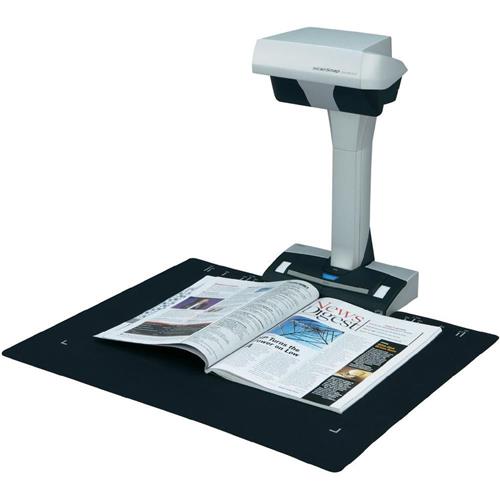

The ScanSnap SV600 Contactless scanner provides a new perspective on document scanning. Easily scan newspapers, magazines, documents or books directly without cutting or damaging them.

Specifications:-
Product Name ScanSnap SV600
General Technical Specifications
Scanner Type Over Head system, simplex scanning
Scanning Modes Color, Grayscale, Monochrome, Automatic (color, grayscale, monochrome detection)
Image Sensor Lens reduction optics / color CCD x 1
Light Source (White LED + lens illumination) x 2
Optical Resolution Horizontal scanning: 285 to 218 dpi,
Vertical scanning: 283 to 152 dpi (1)
Scanning Speed
(A3 landscape)(2) Auto Mode(3) "Better mode" or "Best mode": 3 seconds / page
Normal Mode Color / Grayscale: 150 dpi, Monochrome: 300 dpi
3 seconds / page(4)
Better Mode Color / Grayscale: 200 dpi, Monochrome: 400 dpi
3 seconds / page(4)
Best Mode Color / Grayscale: 300 dpi, Monochrome: 600 dpi
3 seconds / page (4)
Excellent Mode Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi
3 seconds / page(4)
Document Size Automatically recognizes document size,
A3 (landscape), A4 (landscape), A5 (landscape)
A6 (landscape), B4 (landscape), B5 (landscape), B6 (landscape), Post Card,
Business Card, Double Letter (landscape), Letter, Legal (landscape) and Customized size (Max: 432 x 300 mm (17.0 x 11.8 in.),
Min: 25.4 x 25.4mm (1 x 1 in.)(5)
Document Thickness 30 mm (1.18 in.) or less
How to Start Scanning(6) Select one of the below.
1. Normal scan: Press "Scan" button for every page
2. Timed interval Scanning (Timed Mode)
3. Page turning detection
Interface(7) USB 2.0 / USB 1.1 (connector B Type)
Image Processing functions Deskew by text on document,
Auto paper size detection, Auto image rotation,
Auto color detection, Book image correction(8)
Multiple document detection(9)
Magnification in Vertical Scanning
(length) ± 1.5 %
Power Requirement AC 100 V to 240 V, 50 Hz / 60 Hz
Power Consumption During operation: 20 W or less
During sleep mode: 2.6 W or less
During standby: 0.4 W or less
Operation Environment Temperature: 5 °C to 35 °C (41 °F to 95 °F)
Relative humidity: 20 to 80 % (Non-condensing)
Dimensions ( W x D x H ) 210 mm x 156 mm x 383 mm
Device Weight 3 kg (6.61 lb.)
Environmental compliance ENERGY STAR® / RoHS
Driver Specific driver:
* Does not support Twain/ISIS®
Inbox Contents AC cable, AC adapter, USB cable, Background Pad, Setup DVD-ROM, Nuance® Power PDF Standard / Nuance® PDF Converter for Mac DVD-ROM, Extenders (x2)

What's in the box?

AC cable, AC adapter, USB cable, Background Pad, Setup DVD-ROM, Nuance® Power PDF Standard / Nuance® PDF Converter for Mac DVD-ROM, Extenders (x2)
