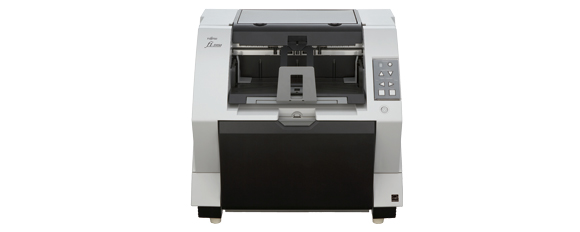

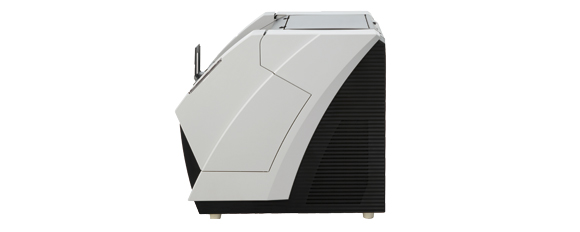

Fujitsu fi-5950 A3 Color Duplex Document Scanner

Brief Overview

FUJITSU FI-5950 DOCUMENT SCANNER (A3, DUPLEX) 135PPM, 500SHT ADF, USB2+SCSI

Product Description

Color Duplex High-Volume Production Scanner

Every second counts and the fi-5950 features ensure increased scanning efficiency and maximum productivity.

Specifications
Model fi-5950
Functional Specifications
Image Sensor Type Dual Color Charge Coupled Device (CCD) image sensor
Output Resolution(1) 50 to 600 dpi, 1200 dpi(2)(3)
Halftone patterns 4 Dither Patterns and error diffusion
Grayscale 10-bit/1,024 level (internal), 8-bit/256 level (output)
Color 24-bit single pass color
Scanning Speeds
(200 or 300 dpi, Letter, Color, Grayscale and Monochrome)
Output Simplex Duplex
Portrait 105 ppm 210 ipm
Landscape 135 ppm 270 ipm
Scanning Mode Simplex and Duplex
Document Feeding Mode Automatic document feeder (ADF)
ADF Capacity 500 Sheets (A4: 80 g/㎡or 20 lb.)
Daily Duty Cycle 100,000 Pages
Document Size ADF Minimum A8 Portrait (52 mm x 74 mm or 2 in. x 3 in.)
ADF Maximum A3 Portrait (297 mm x 420 mm or 11.7 in. x 16.5 in.) Double letter (279.4 mm x 431.8 mm or 11 in. x 17 in.)
Interface Ultra Wide SCSI / USB 2.0 / and Third Party Slot
JPEG Compression Hardware real time JPEG compression available
Physical Specifications
Power Requirements (auto-switching) 100 to 240 VAC, 50/60 Hz
Power Consumption 250 W or less
Operating Environment Temperature 15 ° C to 35 ° C (59 ° F to 95 ° F)
Relative Humidity 20 % to 80 % (non-condensing)
Not operating: 8 % to 95 %
Dimensions (HxWxD) 500 mm x 540 mm x 540 mm (20 in. x 21 in. x 21 in.)
Weight 50 kg (110.4 lb.)
Inbox Contents Document smoother, AC cable, USB cable, Setup DVD-ROM, 2D Barcode for PaperStream Setup CD-ROM, Operator panel overlay, fi-5950 Convenient Operation, Cleanning Guide
Bundled Software
(DVD format) PaperStream IP (TWAIN/ISIS) Driver, 2D Barcode for PaperStream, Software Operation Panel, Error Recovery Guide, PaperStream Capture, Scanner Central Admin Agent
Options Pre and Post Imprinter
Features Ultrasonic Intelligent MultiFeed Function Double Feed Detection (3x) and Long Document Scanning(4)
OS Support Windows® 10 (32-bit/64-bit), Windows® 8 / 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows XP® (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit)

What's in the box?

Document smoother, AC cable, USB cable, Setup DVD-ROM, 2D Barcode for PaperStream Setup CD-ROM, Operator panel overlay, fi-5950 Convenient Operation, Cleanning Guide
