Brief Overview
High speed, unattended document scanning with duplex automatic
document feeder (ADF). Get the job done quickly with scan-to-PDF
simplicity and bundled NewSoft Presto! PageManager document management
software. ISIS compliance included.

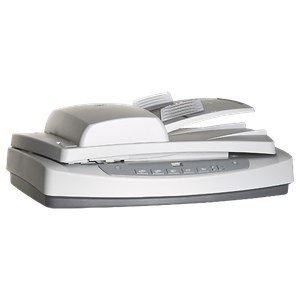

The HP Scanjet 5590 scanner is
designed for home office/small office users who want to digitise
multi-page paper documents. Key requirements are fast, automatic
processing of two-sided documents and the versatility to scan
transparent materials.
Features
Get more done with automatic two-sided, multi-page scanning.
Load
up to 50 pages in automatic document feeder (ADF) and set them
scanning. Automatic processing of double-sided documents for streamlined
workflow. High unattendedness – digitise multi-page documents while you
get on with business.
Do the job faster and return to work sooner with high speed document processing.
Scan
up to 8 pages per minute (or 4 images per minute) using the duplex ADF.
No waiting around – view preview scans in about seven seconds. Store,
organise and access digitised documents using bundled NewSoft Presto!
PageManager software.
Digitise images from slides and negatives with included transparent materials adapter (TMA).
Complete
out-of-the-box scanning solution – capture high quality scans from 35
mm slides and negatives. Easy plug-in connection – no need to remove the
standard scanner lid. TMA can also be used as a light box for
viewing/selecting slides.
Product Description
Specifications
Bit Depth 48-bit
Dimensions (WxHxD) 488mm x 162mm x 340mm
Imaging Technology
Interface Hi-Speed USB 2.0
Model L1910A
Paper Handling Standard, 50 sheets, Paper (banner, inkjet, photo, plain), envelopes, labels, cards (greeting, index), 3-D objects, 35 mm slides and negatives (using transparent materials adapter), iron-on transfers
Performance
Resolution Up to 2400 dpi
Software CD-ROM(s) for Windows and MacintoshI.R.I.S. Readiris Pro for WindowsArcSoft Photo Studio for Windows and MacintoshHP Commercial Scanjet 5590 TWAIN (Windows)
Warranty 1 Year
Weight 5.73 kg
PC Connect 1 Hi-Speed USB 2.0
Automatic document feeder speed Up to 8 ppm/4 ipm (b&w)
Button functions 5 front-panel buttons (Copy, E-mail, File document, Scan document, Scan photo)
Cable included Yes, 1 USB
Compatible Operating System PC: Microsoft Windows 7 ready, Windows Vista: 1.3 GHz processor, 1 GB RAM (2 GB for 64-bit); Windows XP: 1.3 GHz processor, 512 MB RAM (1 GB for 64-bit); Windows 2000: 800 MHz processor, 256 MB RAM, for all systems: 450 MB available hard disk space (additional 500 MB and Hi-Speed USB 2.0 port recommended for extensive ADF use), CD-ROM drive, 800 x 600 SVGA monitor, 16-bit colorMacintosh: Mac OS X v10.2, 10.3, 10.4: PowerPC G3, G4, G5, or Intel Core processor, 128 MB RAM, 240 MB available hard disk space; Mac OS X v10.5: PowerPC G4, G5, or Intel Core processor, 512 MB RAM, 7 GB available hard disk space; Mac OS X v10.6 (available on HP.com): Intel Core processor, 1 GB RAM, 25 MB available hard disk space
Daily duty cycle Recommended daily duty cycle: 500 pages
Energy Star Qualified Yes
Levels of grayscale 256
Media weights, recommended 16 to 24 lb
Operating humidity 0 to 90% RH
Operating temperature range 41 to 104 F (5 to 40 C), 50 to 95 F
Photo automatic document feeder capacity None
Power consumption 36 watts maximum
Preview scan speed Up to 10 sec
Scan file format Windows: BMP, JPEG, GIF, TIFF, TIFF compressed, PNG, PCX, Flashpix (FPX), PDF, PDF searchable, RTF, HTM, TXT; Macintosh: TIFF, PICT, JPEG, GIF, FlashPix, Plain Text, PDF, HTML, Rich Text
Storage humidity 0 to 90% RH
Task speed 10 x 15 cm (4 x 6 in) color photo to Microsoft Word: less than 24 sec, to share/e-mail: less than 18 sec; OCR Letter/A4 text page to Microsoft Word: less than 36 sec
Transparency adapter Included
Twain version Version 1.9
What's in the box hp scanjet 5590 digital flatbed scanner, Hi-Speed USB cable compatible with USB 2.0 specifications, power cable, power supply (where applicable), automatic document feeder (ADF), ADF cleaning cloth, transparent materials adapter (TMA) for scanning slides and negatives, TMA instruction sheet, user's manual, setup poster, warranty sheet, CD-ROM(s) with software for Microsoft Windows and Macintosh: hp photo & imaging software with hp memories disc creator & hp instant share, Integrated I.R.I.S. Readiris OCR, NewSoft Presto! PageManager 7, hp commercial scanjet 5590 TWAIN, (Windows only)
What's in the box?
Hp scanjet 5590 digital flatbed scanner, Hi-Speed USB cable compatible
with USB 2.0 specifications, power cable, power supply (where
applicable), automatic document feeder (ADF), ADF cleaning cloth,
transparent materials adapter (TMA) for scanning slides and negatives,
TMA instruction sheet, user's manual, setup poster, warranty sheet,
CD-ROM(s) with software for Microsoft Windows and Macintosh: hp photo
& imaging software with hp memories disc creator & hp instant
share, Integrated I.R.I.S. Readiris OCR, NewSoft Presto! PageManager 7,
hp commercial scanjet 5590 TWAIN, (Windows only)
Product Specifications
Up to Scan Speed 8ppm/4ipm
Up to Resolution 2400 dpi
50 Sheet ADF
256 Levels Grayscale
500 Pages Daily duty Cycle
USB 2.0 Interface
One year Return to Base Warranty
