Product Description

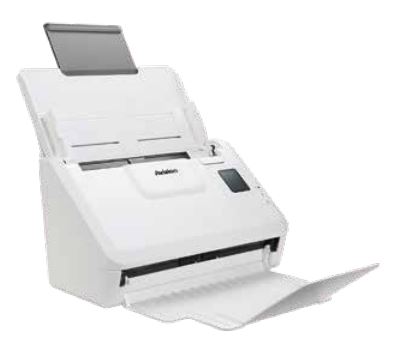

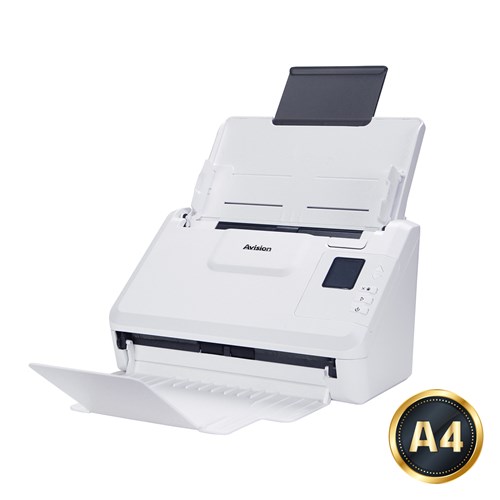

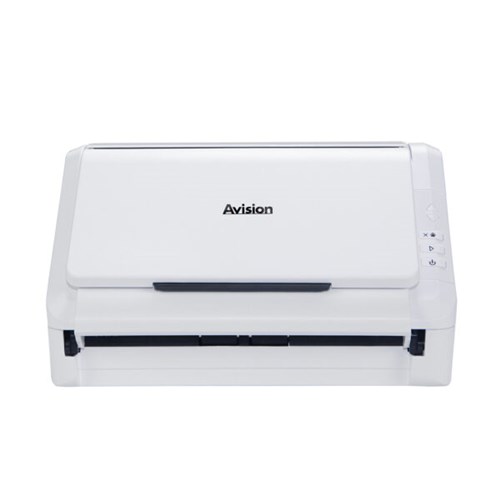

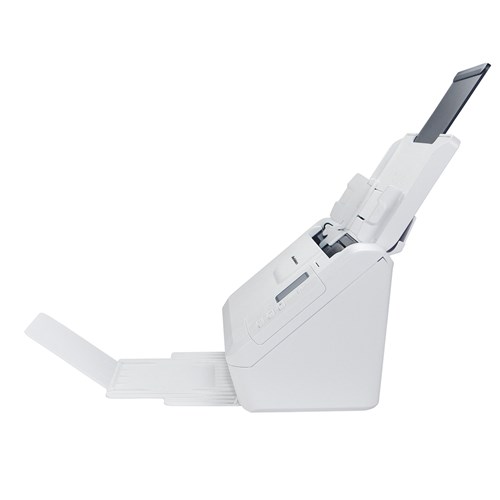

A Compact and Affordable Duplex Scanner
The AD340G is 40ppm/80ipm, duplex sheetfed scanners that are fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary.
Features:
40 ppm/80ipm at (A4, Color, 300 dpi)
Easy to carry due to the slim design
Support embossed plastic cards
Ultrasonic multi-feed detection
Professional bundled software applications include Avision Button Manager , AVScan , PaperPort
Earth-friendly LED technology
Compact ADF holds up to 50 pages
Press and scan to cloud servers such as Google Drive, FTP, Evernote, and Microsoft SharePoint via Button Manager
General Specification
Technology Contact Image Sensor (CIS)
Light Source LED
Document feeding mode ADF
Optical Resolution (dpi) 600
Output Resolution (dpi) 1200
File Formats BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML
Halftone Patterns Dither and Error Diffusion
Grayscale mode 16-bit input 8-bit output
Color mode 48-bit input 24-bit output
Memory Size 512MB SDRAM
Dimensions (WxDxH) Maximum:282 x 457 x 334 mm (11 x 18 x 13.15 in), Minimum:282 x152 x 165 mm ( 11 x 5.98 x 6.49 in)
Weight 2.5 Kg
Interface USB3.2 Gen1x1
Power Consumption Operation < 17 W;Ready < 6 W;Sleep < 1.9 W;Off < 0.2 W
Acoustical Noise Operation < 52 dB;Ready < 25 dB
Recommended Daily Volume Up to 8,000 pages
OS Support Win 7, Win 8, Win 10
Bundled Software TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver, WorldCard Team
Features
Ultrasonic paper jam detection Yes
Long Paper Mode Up to 200 dpi Color Duplex 240 in. ( 6096 mm );Up to 300 dpi Color Duplex 218 in. ( 5540 mm );Up to 600 dpi Color Duplex 59 in. ( 1500 mm )
Card Scan Embossed card ( Thickness 1.25 mm )
Scan Size
ADF Minimum 74 x52mm(A8) (2.9 x 2.0 in)
ADF Maximum 216 x 356 mm ( Legal )( 8.5 x 14 in. )
ADF Capacity 50 sheets (80 g/m+² or 20 lb. Paper)
Paper Weight (Thickness ) 27g ~ 413 g/m² ( 7 to 110 lb )
Scanning Speed
B/W @ 200dpi, A4 Simplex : 40 ppm;Duplex : 80 ipm
B/W @ 300dpi, A4 Simplex : 40 ppm;Duplex : 80 ipm
Color @ 200dpi, A4 Simplex : 40 ppm;Duplex : 80 ipm
Color @ 300dpi, A4 Simplex : 40 ppm;Duplex : 80 ipm
Product Specifications
Up to Scan Sped 40ppm/80ipm
Up to Optical Res 600 dpi
50 Sheets ADF Capacity
512 MB SDRAM Memory
8K Sheets Daily Scan Volume
USB3.2 Gen1x1 Interface
1 Year Return to Base Warranty
