Product Description

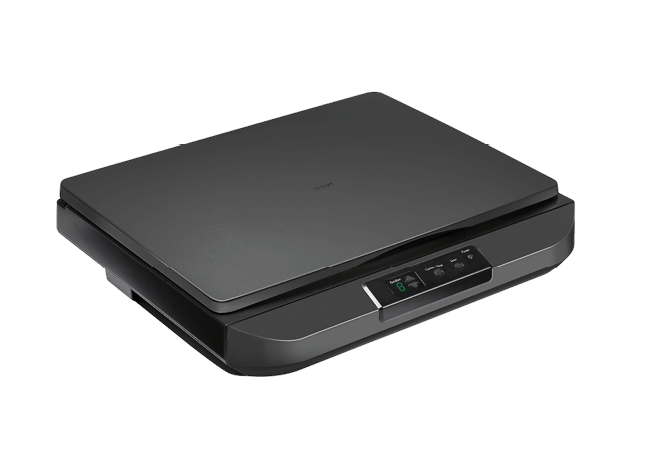

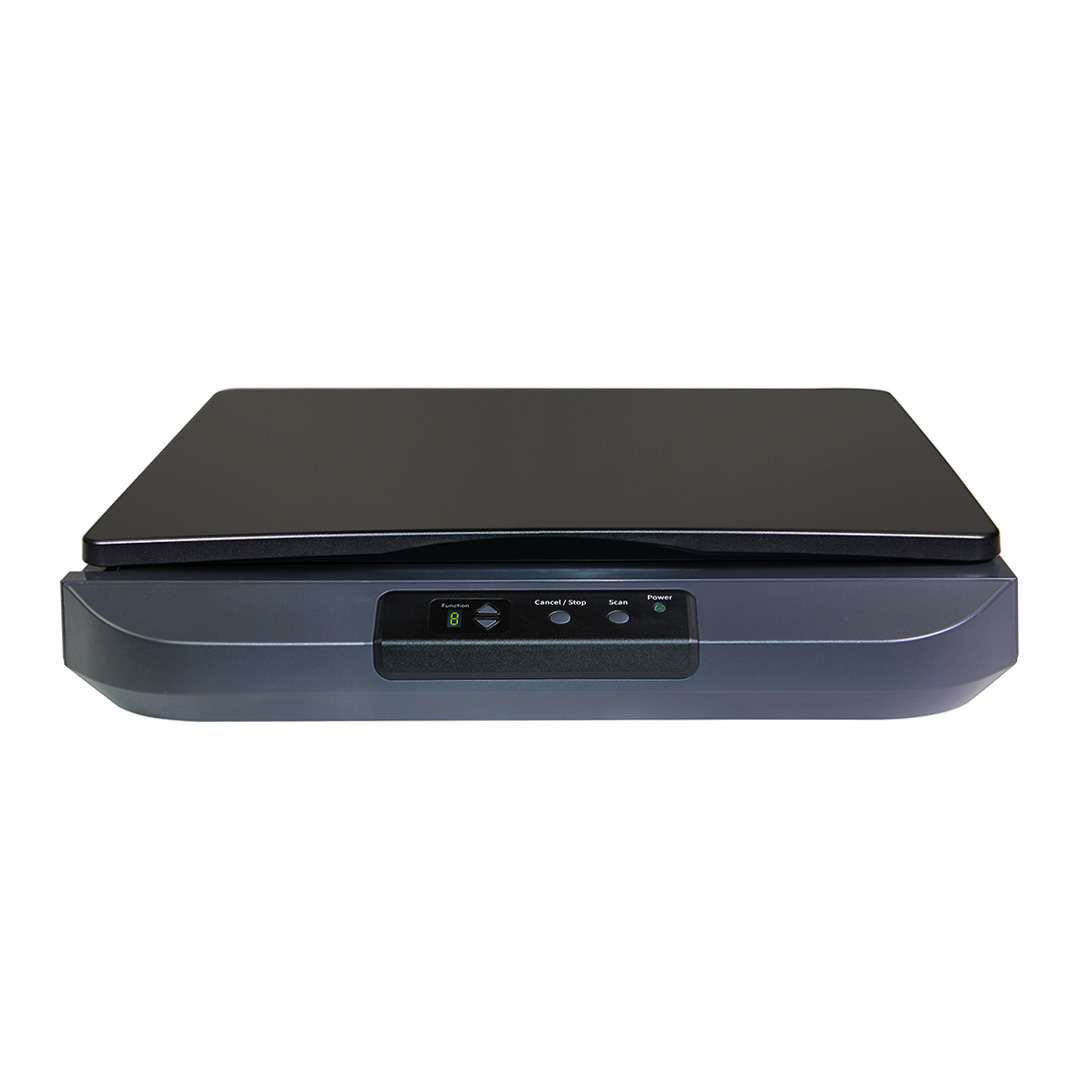

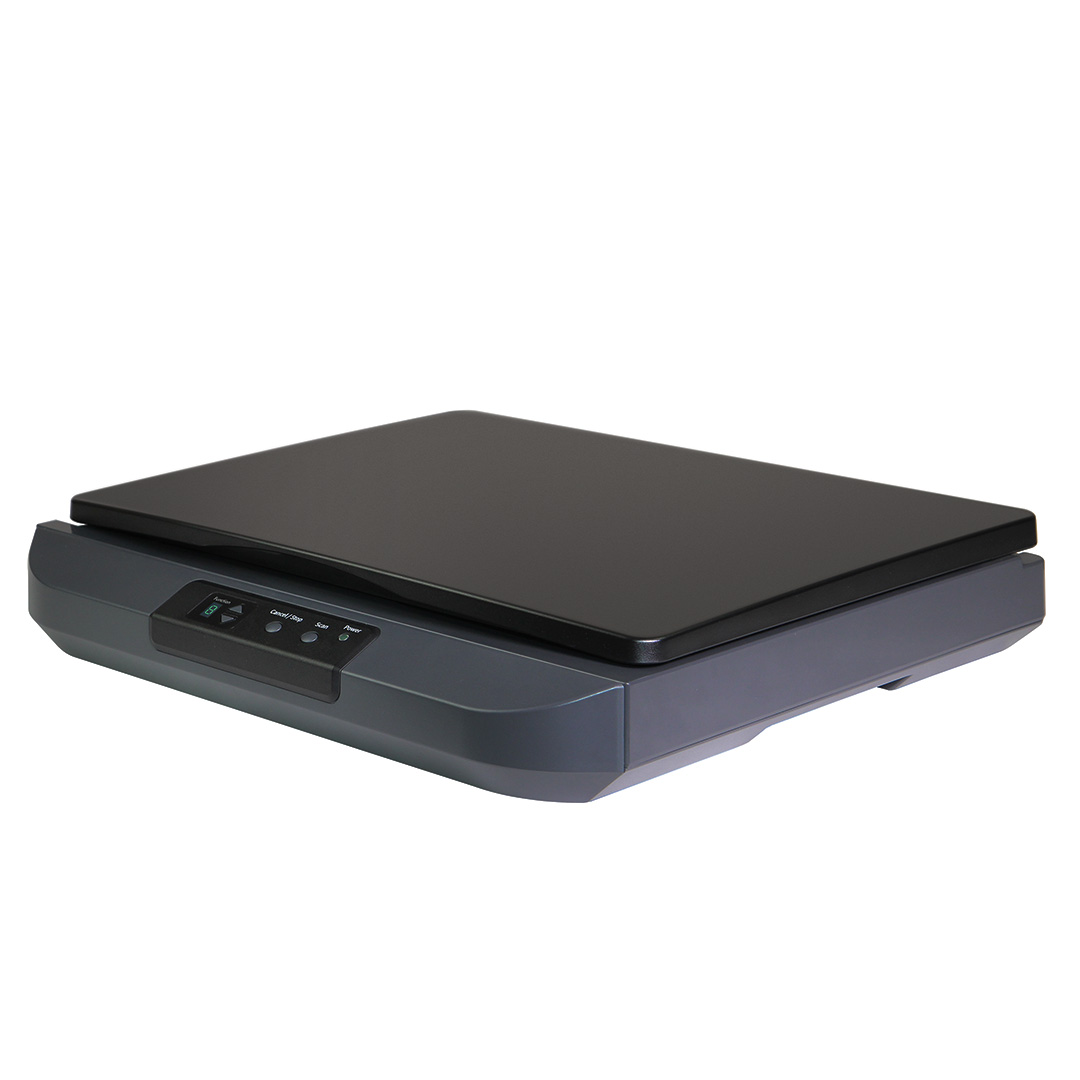

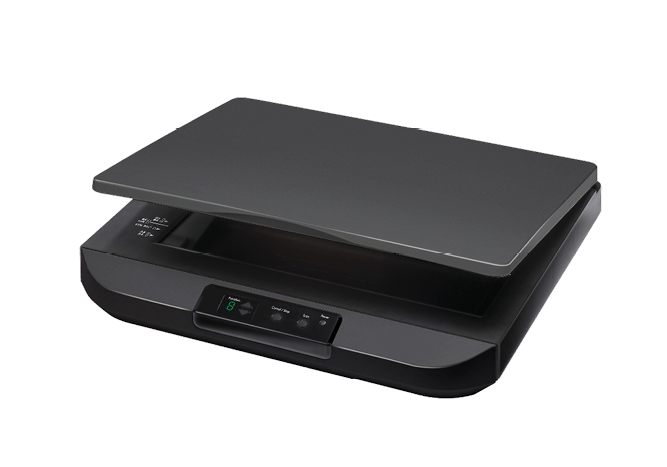

Avision FB5100 is a high-speed flatbed scanner that is able to scan an A3-size document in color mode in 2 seconds. It is ideal for prepress, graphic designers, scrapbooking, maps, libraries, schools, small office/home office (SOHO) users, and anyone who needs to scan A3-sized graphics and documents.
Easy to scan – auto scan
When the option of [ Auto Scan from Flatbed ] is enabled, after closing the document cover, the scan will be automatically started through Button Manager and the scanned image will be sent to the destination you have specified. it is simply that easy to complete a scan without pressing any button!
Advanced multiple-image cropping
The Avision FB5100’s driver comes with advanced features such as multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes in one single scan.
Auto crop, deskew, and thresholding image-enhancing features
FB5100 incorporates the latest TWAIN driver with new features and enhancements such as the ability to adjust the sensitivity of dynamic threshold, document/photo color matching, custom color dropout, automatic multiple cropping, and reduced despeckle. We are committed to improving the TWAIN driver continuously to enrich your scanning experience as never before.
Complete Your Scan With A Simple Press
Avision FB5100 is designed with ease of use in mind. Simply press the Scan button on the front panel, the scan can be started and the scanned image can sent to a preprogrammed destination such as E-mail, printer, image editing software application, or even a cloud server such as Google Drive or Microsoft SharePoint. Scanning is simply that easy!
Features
Fast scan rate of 2 seconds in color mode in 300 dpi
Accepts paper up to A3 size (300 x 432 mm) (11.8 x 17 in.)
LED light source requires no warm-up time
Deliver color, grayscale, or black-and-white image simultaneously in one scan
Press a button to scan, create searchable PDF, print, e-mail, or link to cloud servers such as Google Drive or Microsoft SharePoint
Multiple image cropping automatically scans and crop various sizes of documents in one scan
Includes industry standard TWAIN/ ISIS drivers
Easy to scan – auto scan
General Specification
Technology Contact Image Sensor (CIS)
Light Source LED
Document feeding mode Flatbed
Optical Resolution (dpi) 600 x 600 dpi
Output Resolution (dpi) 1200 x 1200 dpi
File Formats BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX, HTML
Halftone Patterns Dither and Error Diffusion
Grayscale mode 16-bit input 8-bit output
Color mode 48-bit input 24-bit output
Dimensions (WxDxH) 585 x 500 x 115 mm ( 23.03 x 19.69 x 4.53 in )
Weight 6.5 Kg ( 14.33 lb )
Interface USB3.2 Gen1x1
Power Consumption Operation:<30W ; Standby:<10W ; Power saving:<2.9W
Recommended Daily Volume Up to 2,500 pages
OS Support Win 7, Win 8, Win 10, Win11, Fedora, openSUSE, Debian, Ubuntu, macOS10.12~10.15, macOS11 Big Sur, macOS12 Monterey, macOS13 Ventura, macOS14 Sonoma
Bundled Software TWAIN Driver, Button Manager, PaperPort, AVScan, Linux Driver, Mac Driver
Features
Ultrasonic paper jam detection Yes
Scan Size
Flatbed Maximum 300 x 432 mm ( 11.8 x 17 in )
Scanning Speed
B/W @ 200dpi, A4 2 sec
B/W @ 300dpi, A4 2 sec
Color @ 200dpi, A4 2 sec
Color @ 300dpi, A4 2 sec
