Product Description

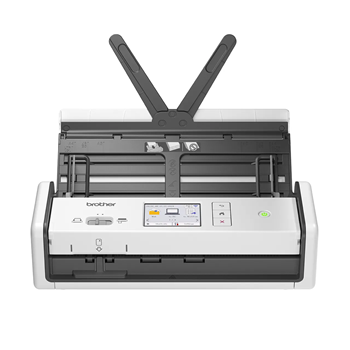

Our compact ADS-1800W allows for easy scanning from anywhere. Compatible with power banks, scan conveniently and wirelessly via mobile or tablet, enhanced by powerful PDF editing and document management software.
Scan from anywhere
Compatible with most external batteries or power banks via USB Type C, wireless network connectivity, and built-in cloud scanning, you can truly scan from anywhere.
Seamless performance, every time
With duplex scan speeds of up to 60 images per minute (2-sided), documents are saved quickly and effortlessly to a file, email server, USB host, or network or scanned directly to your PC.
Intelligent and effortless
Reduce the time you spend on repetitive tasks with one-touch shortcuts to frequently used locations - you can be confident that all your documents are reliably saved to the right place.
Versatile media handling
The Automatic Document Feeder (ADF) easily manages various sizes and thicknesses of paper (up to 128gsm), whilst the dedicated card slot handles plastic ID cards. An optional, detachable Output Tray is also available separately.
Bundled with Industry-leading software
Create, convert, edit and share documents with PowerPDF. Together with PaperPort, a document management solution to easily share, search and organise your documents.
Basic Specs
Scanning Speed 30ppm/300dpi, 7ppm/600dpi
Document Size - Multiple Sheets - Width 50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length 70 mm to 355.6 mm
Colour / Monochrome Yes / Yes
2-Sided (Duplex) Scan Yes
Colour Depth - Input 48-bit colour processing
Colour Depth - Output 24-bit colour processing
Resolution - Optical Up to 600 x 600 dpi
Resolution - Interpolated Up to 1200 x 1200 dpi
Document Scanning Width / Length Up to 215.9 mm
Product Dimensions (Width X Depth X Height) 288 mm × 101 mm × 85 mm
Weight 1.42 kg
ADF (Automatic Document Feeder) Up to 20 sheets
Memory Capacity
SDRAM: 512MB
Connectivity
Connectivity Wireless LAN IEEE 802.11 b/g/n (Infrastructure Mode), IEEE 802.11 g/n (Wi-Fi Direct)
Network
Wireless Network Security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
Setup Support Utility WPS
Display Type
Touchscreen LCD 2.8"(71.1mm) Colour Touchscreen LCD
Operation
Power Source AC Adapter (optional): 100 - 240 V AC 50/60 Hz
DC: 5V, 3A
Power Consumption - Scanning
AC: Approximately 12 W
DC: Approximately 10 W
Power Consumption - Ready
AC: Approximately 6.4 W
DC: Approximately 5.2 W
Power Consumption - Power Saving / Deep Sleep
AC: Approximately 1.5 W
DC: Approximately 1.1 W
Power Consumption - Power OFF
AC: Approximately 0.1 W
DC: Approximately 0.1 W
Temperature Operating 5 ℃ to 35 ℃
Humidity - Operating 20% to 80%
Humidity - Storage 10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows 10 / 11
WIA Compliant - Windows® Windows 10 / 11
Product Specifications
Up to Scan Speed 30ppm/60ipm
Up to Print Res 1200 x 1200 dpi
Up to 20 Sheets ADF
Dedicated Plastic ID Card Slot
2.8" LCD Colour Touch Screen
USB & Wireless Interface
One-Year Return to Base Warranty
