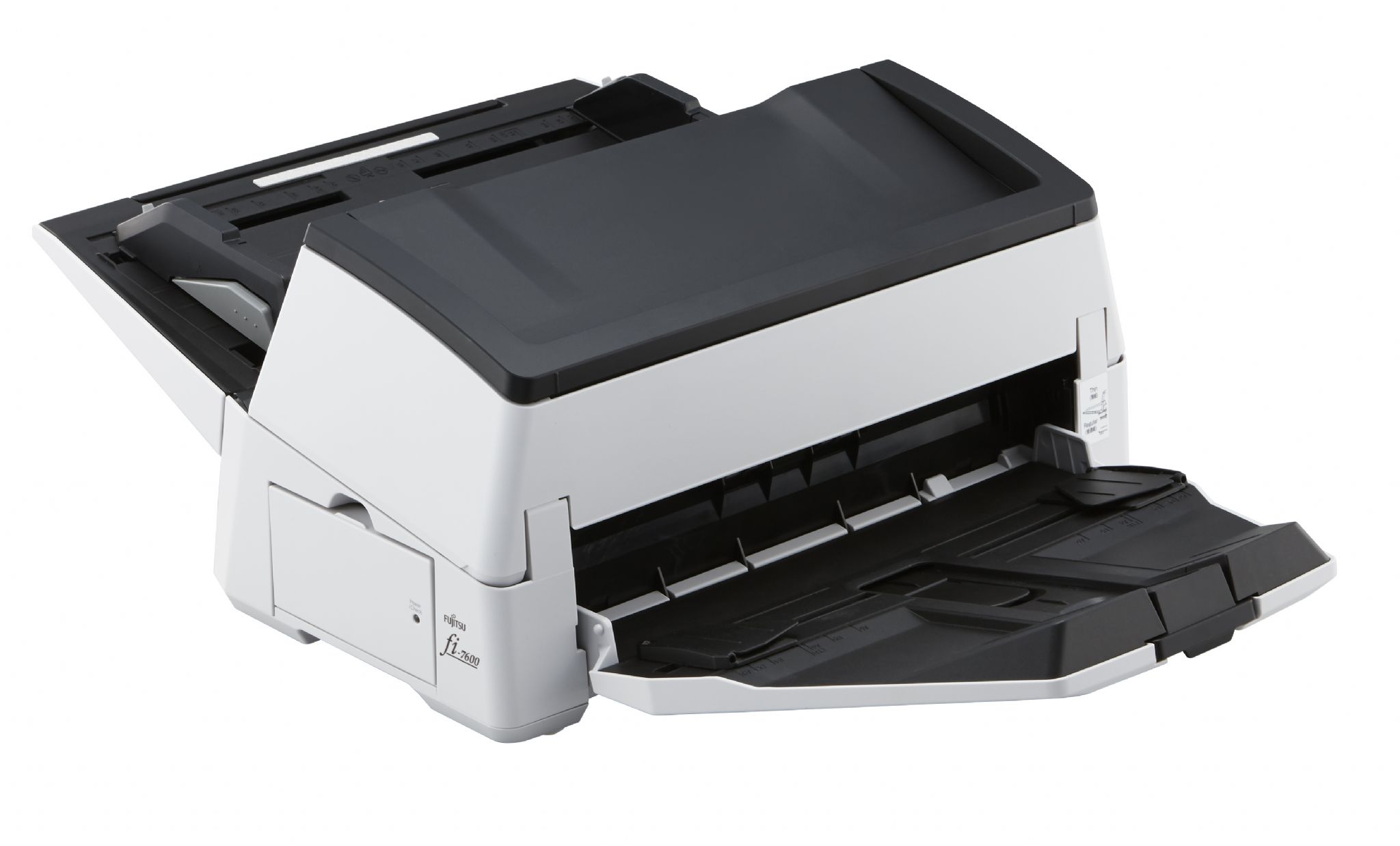

Fujitsu fi-7600, A3 Document Scanner
Product Description
The Fujitsu fi-7600 is a high performance A3 document scanner, featuring a 300 page ADF. It's important to note that the feeder can be topped up during scanning, which makes the fi-7600 remarkably productive compared to scanners where you have to wait for the batch to finish and the tray to come down, etc.. Fujitsu's fi-7600 ADF scanning speed is up to 100 ppm or 200 ipm in duplex mode. The fi-7600 also offers excellent paper handling, enabling the scanning of batches of documents of varying thickness, quality and size. This remarkable Fujitsu scanner is designed to scan up to 30,000 pages per day.
Specifications
Description fi-7600
Functional Specifications
Image Sensor Type Color CCD (Charge-coupled device) x 2 (front x 1, back x 1)
Light Source White LED Array x 4 (front x 2, back x 2)
Multifeed Detection Ultrasonic multi-feed detection sensor, Paper detection sensor
Optical Resolution 600 dpi
Output resolution(1) Color (24-bit) 50 to 600 dpi
(adjustable by 1 dpi increments), 1,200 dpi (driver)(2)
Grayscale (8-bit)
Monochrome
Output format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Internal Video Processing 4,096 levels (12-bit)
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-Screen,Emphasis, Halftone, Dropout color (None /Red /Green /Blue /White /Saturation /Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Dither, Static threshold, Divide Long Page
Scanning Speed(3)
(A4 Landscape) Color(4)
Grayscale(4)
Monochrome(5) Simplex: 100 ppm, Duplex: 200 ipm
(200 dpi / 300 dpi)
Scanning Speed(3)
(A4 Portrait) Color(4)
Grayscale(4)
Monochrome(5) Simplex: 80 ppm, Duplex: 160 ipm
(200 dpi / 300 dpi)
Paper chute capacity (A4 Landscape)(6) 300 Sheets (A4: 80 g/m² or 20 lb.)
Background Colors White / Black (switching with command available)
Document Size Minimum 50.8 mm x 69 mm (2 in. x 2.72 in.)
Maximum 304.8 mm x 431.8 mm (12 in. x 17 in.)
Long page scanning(7) 304.8 mm x 5,588 mm (12 in. x 220 in. )
Paper Weight
(Thickness) Paper 20 to 413 g/m² (5.3 to 110 lb.), A8 size: 128 to 209 g/m² (34 to 56 lb)
Plastic Card Up to 1.4 mm (8)
Interface USB 3.1 Gen1 / USB 3.0 / USB 2.0 / USB 1.1
Minimum PC Specification CPU: Intel® Core i5 2400S @ 2.5Ghz
Memory: 4.0GB
OS:Windows® 7 SP1 (32-bit)
Software: PaperStream Capture
Physical Specifications
Power Requirements 100 to 240 VAC ± 10 %
Power Consumption Operating: 64 W or less, Sleep mode: 1.7 W or less, Auto Standby(OFF) mode: Less than 0.35 W
Dimensions (WxDxH)(9) 236 mm x 432 mm x 214 mm (9.3 in. x 17.0 in. x 8.4 in.)
Weight 11 kg (24 lb.) or less
Environmental Compatibility ENERGY STAR® / RoHS
Operating Environment Temperature 5 °C to 35 °C (41 °F to 95 °F )
Relative Humidity 20 % - 80 % (non-condensing)
Included Items ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
Included Software / Drivers PaperStream IP (TWAIN/ISIS) ,2D Barcode for PaperStream(10), Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series(10), Scan to Microsoft SharePoint(10), ABBYY FineReader for ScanSnap(10), Scanner Central Admin
Options Post Imprinter (fi-760PRB)(11), PaperStream Capture Pro
Supported Operating Systems Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit)
What's in the box?
Stacker, ADF paper chute, AC cable, AC adapter,
USB cable, Setup DVD-ROM
Product Specifications
100ppm Simplex & 200ipm Duplex
Up to Optical Resolutoin 600 dpi
4xWhite LED Light Source
USB 2.0 Interface
One Year Limited Warranty
