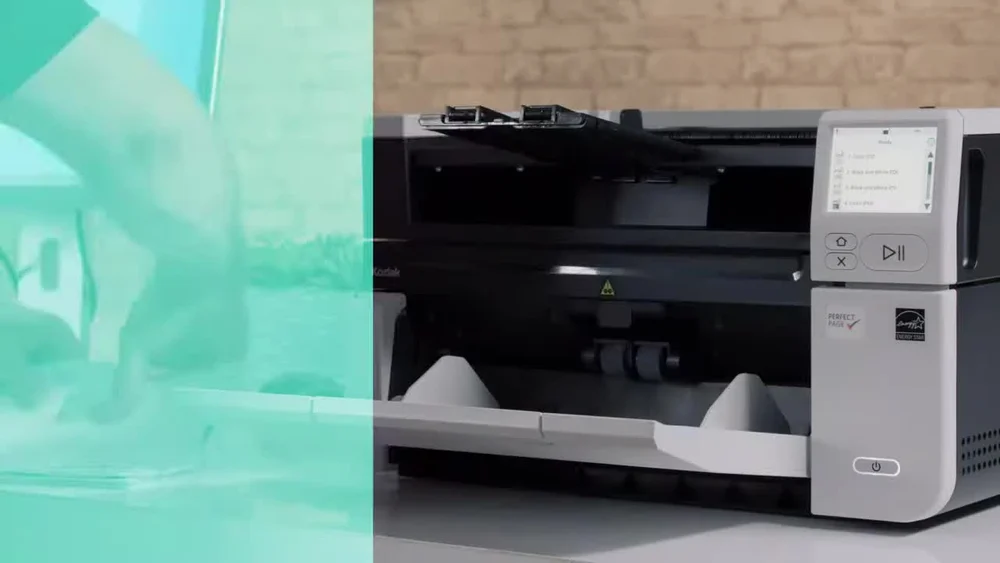

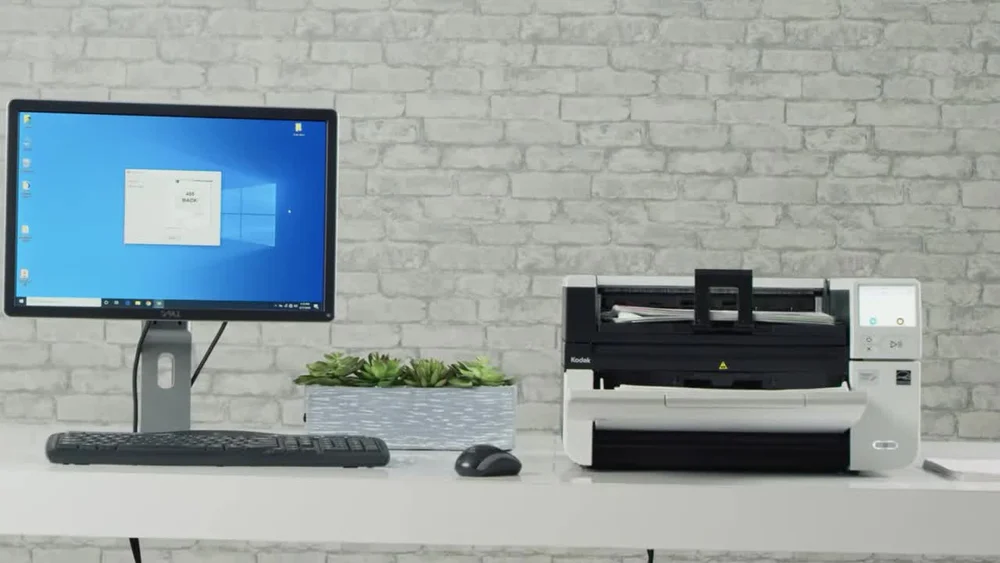

Kodak s3120 Max A3 Document Scanner

With throughput up to 120 pages per minute (ppm) and a 60,000 page recommended daily volume, the Kodak S3120 Max Scanner offers unmatched speed for its class. Built-in image processing and networking capability help you transform your data capture workflows to a higher level of efficiency and productivity. The industry-leading image enhancement technology optimizes OCR accuracy while reducing file size, so you can capture data with superior speed and accuracy and get it into your business processes immediately. The exceptional paper handling minimizes time spent at the scanner to further improve the speed, accuracy and efficiency of your business processes.

• Compact departmental duplex A3 scanner

• on-board image processing

• Automatic feeding of up to 120 ppm / 240 ipm

• Rotary and Straight-Through Paper Path

• USB 3 and Network Interface

• 500 Sheets Feeder Capacity (Adjustable)

• Kodak Perfect Page Image Processing with Intelligent Document Protection (IDP)

• WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers; KODAK Capture Pro Limited Edition (LE) Free software; Smart Touch; TWAIN driver * (available via web download only)

• Fully supported by KODAK Capture Pro Software Group D license (when connected via USB interface)

• Smart Touch fast and simple way to scan documents (PDF, Searchable PDF, TIFF, JPEG, etc) to a local/network folder, FTP, email, print, Cloud and applications including MS SharePoint

• up to 60,000 pages per day duty cycle

• 1 year On-Site Warranty limited to installations within 80km radius from CBD in all state capitals except Darwin. All other locations are RTB warranty, subject to prior approvals.

Product Highlights Compact A3 scanner with fast scan speed and a straight-through paper path to feed thick or exceptionally long documents

Throughput Speeds * 120 ppm / 240 ipm

Feeder Capacity Up to 500 sheets of 80 g/m² (20 lb.) paper

10/100/1000 ETHERNET

USB 3.2 Gen 1x1 Compatible

Maximum Document Size 305 mm x  4.06 m (12 in. x 160 in.)

Minimum Document Size 63.5 mm x 71.1 mm (2.5 in. x 2.8 in.)

Paper Thickness & Weight 34–433 g/m² (9–160 lb.) paper

Maximum Optical Capture Resolution 600 dpi

Carrier Sleeves (5 PACK)

Document Extenders

Feeder Consumables Kits

KODAK A3 Size Flatbed Accessory

KODAK Enhanced Printer Accessory

Printer Ink Cartridge and Carrier

Rear Exit Tray Accessory

Off or Ready mode: < 20 dB(A)

Scanning: <66 dB(A)

Argentina (S mark)

Australia/New Zealand (RCM)

Canada (cTUVus & ICES-003)

China (CCC)

European Union (CE)

European Union (GS Mark)

India (BIS)

Japan (VCCI)

Mexico (NOM)

Russia/Eurasian Economic Union (EAC)

South Korea (KC)

Taiwan (BSMI)

US (cTUVus & FCC)

Codabar

Code 128

Code 3 of 9

EAN-13

EAN-8

Interleaved 2 of 5

PDF417

QR

UPC-A

UPC-E

Capture Pro Limited Edition

Smart Touch

Data Security This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down. Read more about data security.



Dimensions & Weight

Size with tray in the upright position:

Height: 295 mm / 11.6 in

Width: 457.2 mm / 18 in.

Depth: 370.8 mm / 14.6 in.

Weight: 16.5 kgs / 36.29 lbs

Electrical Requirements 100-240 V (International); 50-60 Hz

2008 EuP

ENERGY STAR Qualified

EPEAT Gold

BMP

JPEG

Single-page TIFF

Microsoft Excel

Microsoft Word

Multipage TIFF

PDF

Text searchable PDF

PNG

RTF

Up to 1200 dpi

DHCP (or static IP)

TCP/IP

WINDOWS 11 (64 bit)

WINDOWS 10 (32- and 64-bit)

WINDOWS 8.1 (32-bit and 64-bit)

WINDOWS Server 2012 R2 X64 Editions

WINDOWS Server 2016 X64 Editions

WINDOWS Server 2019 X64 Editions

WINDOWS Server 2022 X64 Editions

Ubuntu 20.04 64-bit

Ubuntu 18.04 64-bit

Open SUSE Leap-15.2 & 13.1

SUSE Enterprise Desktop-15.2 & 12.4

SUSE Linux Enterprise Desktop 12 SP2 64-bit

Neokylin V7 (x86/x64 & MIPS only) (Available only in China)

UOS (x86/x64 & MIPS only) (Available in China only)

Kylin 10 (x86/x64 & MIPS only) (Available in China only)

Operating Temperature 10-35° C (50-95° F)

Operating Humidity 15% - 80% RH

Operator Control Panel 3.5 inch (89 mm) graphical color touchscreen LCD with operator control buttons

Capture Pro Software

Info Input Solution

Paper Path Options Documents can exit into the front output tray, or at the rear of the scanner if the straight-through paper path option is manually selected

Controlled stacking

Enhanced jam recovery

Intelligent Document Protection

Interactive Operator Control Panel (OCP)

Length Multifeed Detection

Rear exit

Ultrasonic Multifeed Technology

Adaptive threshold processing

Add or remove border

Aggressive cropping

Auto white balance

Autocrop

Automatic Brightness/Contrast

Automatic color balance

Automatic color detection

Automatic orientation

Automatic photo cropping

Background color smoothing

Barcode reading

Black and white image segmentation

Brightness and contrast adjustment

Color-on-the-fly toggle patch

Content-based blank page removal

Continuous Scanning Mode

Deskew

Digital stamping

Dual stream scanning

Electronic color dropout

Enhanced color adjustment

Enhanced color management

Fixed cropping

Fixed thresholding

Halftone removal

Image edge fill

Image hole fill

Image merge

Image split

Interactive multifeed with image display on host

iThresholding

Lone Pixel Noise Removal

Majority rule noise removal

Multicolor dropout

Multi-lingual auto orientation

Orthogonal rotation

Output Compression-CCITT Group IV, JPEG, Uncompressed Output

Rear side printer

Relative cropping

Sharpening

Sleeve scanning (for scanning A3 documents or multiple small documents)

Snap to Size

Streak filtering

Running: less than 50 watts

Sleep Mode: less than 4 watts

Standby: less than 0.3 watts

Recommended Daily Volume Up to 60,000 pages per day

Recommended PC Configuration INTEL CORE i3, running @ 3.5 GHz or higher, USB port 3.0 (Super Speed) or 2.0 (High Speed), 3.43 GB RAM or more

Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3)

ISIS Drivers

LINUX (TWAIN and SANE) Drivers

TWAIN Drivers

WIA Drivers

Citrix certified

KOFAX certified
