Product Description

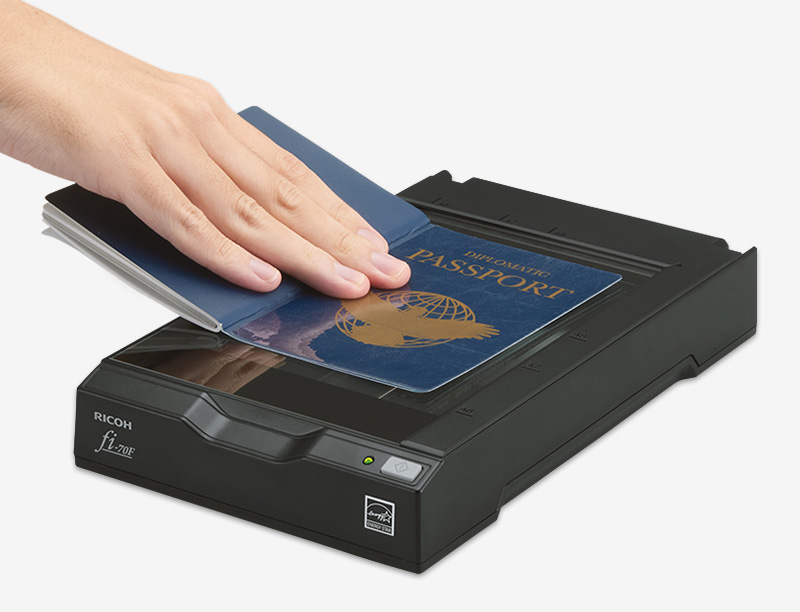

The fi-70F designed for portability and compact spaces guarantees simple and fast scanning for a variety of identification and small cards.
Scanning in 1.3 seconds (Color, A6, 200 dpi)
Coverless scanning with automatic functionalities for increased user productivity
Easy, one button touch scanning
USB power option for portability
Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
PaperStream ClickScan also available for ad-hoc use to scan in 3 simple steps
PaperStream Capture Pro software available as a premium option
Specifications
Product Name fi-70F
Scanner Type Flatbed, Simplex
Scanning Speed (105 x 148 mm/4.1 x 5.8 in./A6)
AC Adapter Color: 1.3 seconds (200 dpi)/2.0 seconds (300 dpi)
Grayscale/Monochrome: 0.9 seconds (200 dpi)/1.0 seconds (300 dpi)
USB Bus-Powered Color: 2.0 seconds (200 dpi)/2.5 seconds (300 dpi)
Grayscale/Monochrome: 2.0 seconds (200/300 dpi)
Image Sensor Type CIS (CMOS CIS)
Light Source 3 Color LED
Optical Resolution 600 dpi
Output Resolution
(Color/Grayscale/Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*2
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors Black
Document Size Maximum 105 x 148 mm (4.1 x 5.8 in.)
Interface USB 2.0/USB 1.1
Power Requirements AC 100 to 240 V ±10 %
Power Consumption (AC Adapter) Operating Mode 6 W or less
Sleep Mode 2 W or less
Auto Standby (Off) Mode 0.3 W or less
Power Consumption (USB Bus-Powered) Operating Mode 5 W or less
Sleep Mode 2 W or less
Auto Standby (Off) Mode 0.3 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (non-condensing)
Environmental Compliance ENERGY STAR, RoHS
Dimensions*3 (W x D x H) 145 x 234 x 40 mm (5.7 x 9.2 x 1.6 in.)
Weight 0.9 kg (1.98 lb)
Supported Operating System Windows 11*4, Windows 10*4, Windows Server 2022, Windows Server 2019, Windows Server 2016
Software/Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver*5, PaperStream Capture, PaperStream ClickScan*6, Software Operation Panel, Scanner Central Admin Server
Included Items AC cable, AC adapter, USB cable, USB bus power cable, Setup DVD-ROM
Product Specifications
Up to Scan Speed 1.3/Sec. 200dpi
Up to Optical Resolution 600 dpi
3 Color LED Light Source
CIS Image Sensor Type
Easy One Button Touch Scaning
USB 2.0 / USB 1.1 Interface
One Year Limited Warranty
