Product Description
A 36-INCH MULTIFUNCTION PRINTER WITH ADVANCED PRINT AND SCAN TECHNOLOGY FOR ACCELERATED PRODUCTIVITY
Faster printing
Increased print speed and continuous printing enhances productivity, up to 3.2ppm A1 CAD
Quality in print and scan
Class-leading inkjet and unique scanner technology assure high-quality printing and scanning
Accurate media handling
Added support for high-volume printing, with hassle-free media handling, automatic media switching for dual roll option
Security assured
Improved security features supporting the industry requirement
Improved usability
Redesigned UI and control panel ensure intuitive user experience in operation
Effortless creation
Updated software solutions assist efficient poster design and high-volume printing of drawings
Weather resistance
Full pigment LUCIA TD ink provides greater durability with the water resistant media option
Printer Type
5-Color 36-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh® OS 10.12.6 and later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size
5 picoliter
Ink Capacity
160 ml, 330ml or 700ml per color
Ink Types
Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet - 6” - 36”
Roll Feed - 6” - 36”
Media Thickness
0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length
Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter
6.7” (170m)
Borderless Printing Width
All sizes
Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: One Roll, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx
Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less
Physical Dimensions
46” x 55” x 47” (Main unit and TX Stacker; roll holder included, no inks, no print heads)
46” x 55” x 39” (Main unit and TX Catch Basket Opened)
Weight
approx. 257 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 231 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 115W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06), Maintenance Cartridge (MC-30), Ink Tanks (PFI-110/PFI-310/PFI-710)
Software Available
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
What's in the box?
imagePROGRAF TX-3100

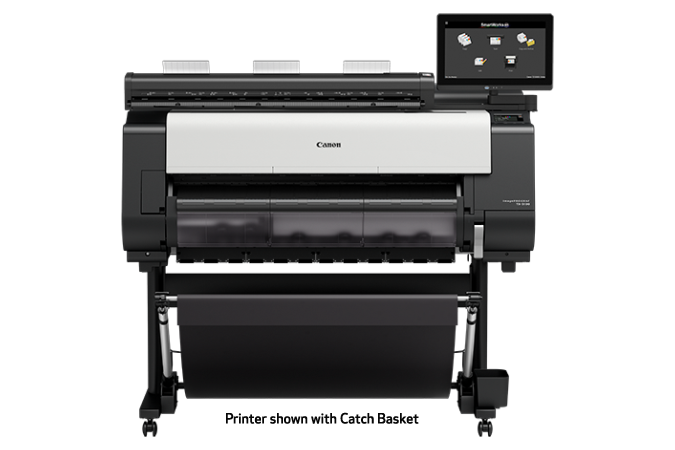

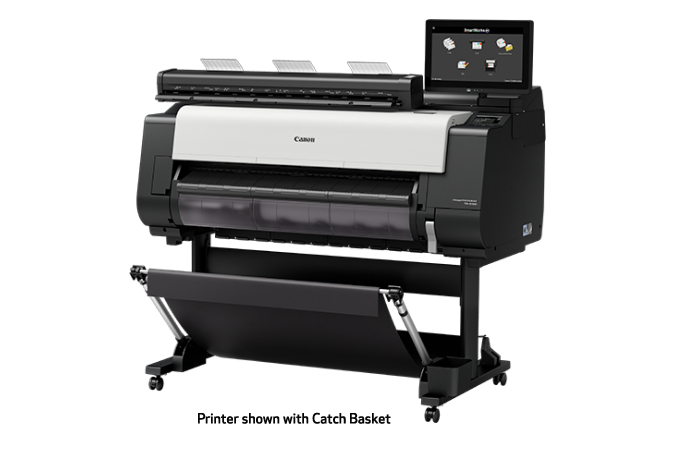

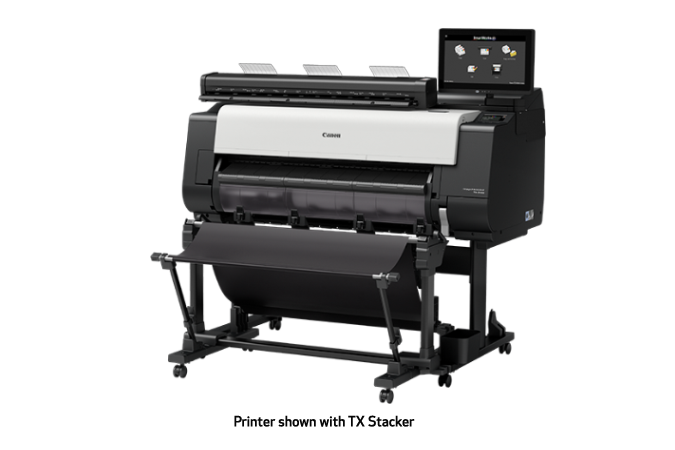

TX Stacker or Catch Basket
Printer Stand
2"/3" Core Media Spool (Adaptors Included)
AC Power Cable
Tools and Screws
Print Head PF-06
Maintenance Cartridge (Installed)
5 Ink Tanks (330 ml: MBK, 160 ml: C/M/Y/BK)
Ethernet Card (built-in)
USB 2.0 High-speed Interface
USB Connection Sheet
iWR Service Terms Leaflet
User Manual
Quick Setup Guide
User Software CD for Windows (Printer Driver Utilities)
PosterArtist Lite CD
User Registration Card
Warranty Statement
Z36 Scanner Box
Z36 Scanner with power cord
USB 3.0 Cable
15.6" System Controller
3:1 Trident Power Cord
Power Supply
Mount for system controller
(2) Paper Edge Guides
(3) Document Return Guides
Calibration Target
Assembly and Start-up Guide
