Product Description
Ultra-compact and fast "fits anywhere" 2-inch printer

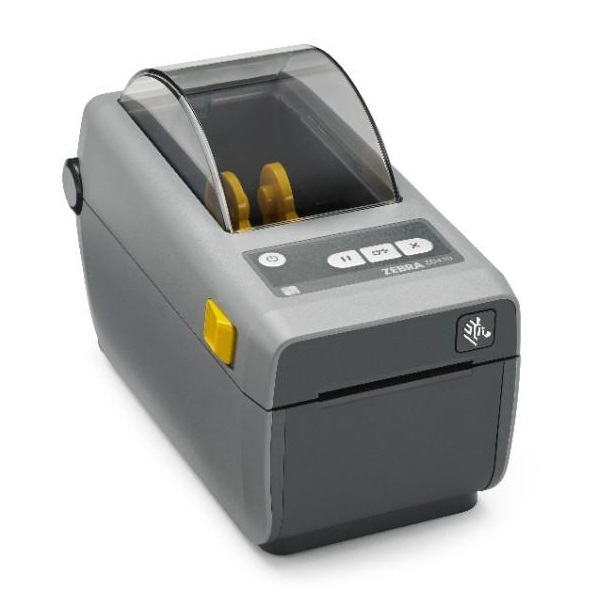

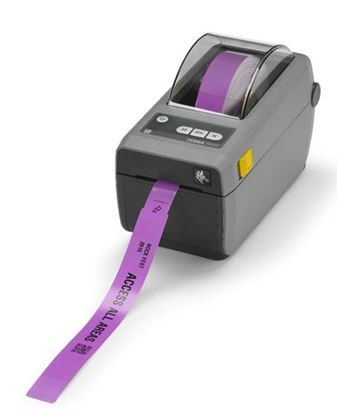

If you need fast, dependable printing in the most space constrained areas, you need the ZD410. This ultra-compact "fits anywhere" printer is designed for the smallest of work spaces. When it comes to flexibility, the ZD410 shines - this printer creates high-quality labels, receipts, tags and wristbands. This super-fast printer keeps your workers productive. Deployment is a breeze - the ZD410 is loaded with connectivity options. The ZD410 is easy to use, operate and troubleshoot, ensuring your printer is always up and running. And Zebra OneCare service maximizes the availability and productivity of your ZD410 printers with unmatched from-the-manufacturer support that covers everything - from worn out printheads to normal wear and tear. The ZD410 - the little printer designed with big business functionality.
You can support Wi-Fi and Ethernet connectivity simultaneously. Add new communication or media handling options in the future, such as serial or Ethernet connectivity, and a peeler and a cutter, right on site. Backwards compatibility with existing applications, formats and printer languages allows you to easily upgrade from your aging Zebra LP 2824 Plus - just plug in the ZD410 and you're back up and running. And with support for Zebra ZPL and EPL printer languages and many non-Zebra languages, it's easy to upgrade from competitive printers.
Easy to Use and Troubleshoot
Five status icons - status, pause, data, supplies and network - provide the additional information you need to keep your Zebra printer up, running and available. Now, at glance, users can see if the media needs to be replenished, if the network connection is down and much more.
Easy to Clean and Sanitize Healthcare Model

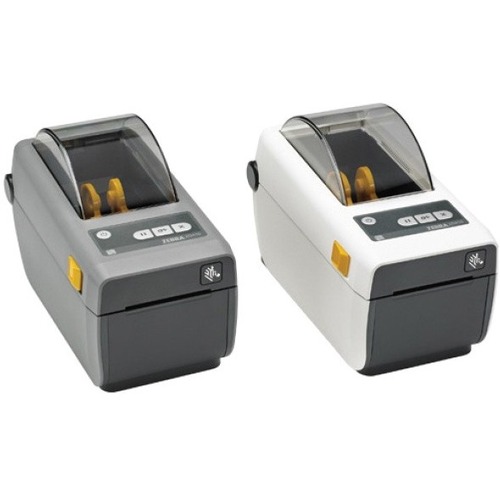

Disinfectant-ready plastics and a sealed button interface make it easy to clean and disinfect the ZD410 healthcare model - crucial in hospitals and clinics. And with the 300 dpi printing option, even the small labels on specimen containers and prescriptions are highly legible.
Ultra Compact "Fits Anywhere" Printer
The ZD410 is the smallest printer in its class, fitting easily in the most space-constrained desktop or shelf.
Adaptable to Meet Your Current and Future Needs
The movable media sensor supports media with off-center black marks, die-cut notches or multiple labels across the width. Easily deploy in practically any technology environment with virtually every modern connectivity option, including USB, auto-sensing serial or 10/100 Ethernet and the latest wireless options - 802.11ac Wi-Fi and Bluetooth 4.1.
Features
Direct Thermal print method
ZPL and EPL programming languages
5 status icon, 3 button user interface
USB 2.0, USB Host
OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR qualified
ZebraDesigner Essentials - easy label design tool free at
Technical Specs
Memory
Standard Memory 512 MB
Warranty
Limited Warranty 2 Year
Interfaces/Ports
USB Yes
USB Host Yes
Power Description
Input Voltage 120 V AC
230 V AC
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Fast Ethernet
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Technical Information
Application/Usage Desktop
Barcode Symbology Supported Codabar
German Post Code
Code 128 (A/B/C)
UPC-E
EAN-13
Code 93
EAN-8 With 2 or 5 Digit Extension
Code 39
RSS14 Stacked
RSS14 Truncated
MSI-3
RSS14 Limited
UCC/EAN 128
MSI1
Plessey
POSTNET
EAN-13 With 2 and 5 Digit Extension
RSS-14
UPC-A
EAN-8
UPC-E with 2 or 5 Digit Extension
Interleaved 2 of 5
UPC-A with 2 and 5 Add-on
Maximum Print Width 55.88 mm (2.20")
Recommended Use Label Print
Connectivity Technology Wired
Features Dispenser
Maximum Mono Print Speed 152.40 mm/s
Print Color Capability Monochrome
Real-Time Clock Yes
Maximum Print Resolution (dpi) 203
Physical Characteristics
Weight (Approximate) 997.9 g
Height 152.4 mm
Width 114.3 mm
Depth 218.4 mm
Fonts & Emulation
Language Emulation EPL2
EPL
ZPL II
EZPL
ZPL
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZD41022-D1PE00EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD410
Product Name ZD410 Direct Thermal Printer
Brand Name Zebra
Miscellaneous
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification RoHS
Energy Star Yes
Power Cable Localization UK
EU
AUS
JP
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Receipt
Continuous Paper
Roll Fed
Wristband
Fanfold
Continuous Label
Label
Die-cut Label
Black Mark
Tag
Tag Stock
Continuous Receipt
Media Sensor Full Width Sensor
Reflective Media Sensor
Transmissive Media Sensor
Head Open Sensor
Maximum Label Width 59.94 mm
Maximum Label Length 990.60 mm
