Product Description
Elevate your expectations: the advanced desktop printer that delivers the features, flexibility, reliability, and security you need
You need a reliable printer that delivers quality performance, now and for years to come. It needs to offer key features, and be easy to set up, operate, manage and maintain - onsite or remotely. It needs to be secure, whether it is integrated onto your network or not, to prevent downtime and costly cyberattacks. You need it. Zebra delivers it, for more than 50 years. We design our printers to match your workflows, ensuring they are hassle-free and ready to work. Day in and day out. We're always innovating to deliver the best to help you advance your business and be ready for what's next. Building on the legacy of Zebra's popular GK Series, ZD421 printers adds even more capabilities and security measures to set you up for years of use.
It's Time to Advance
Migrate from G to Z
The ZD421 builds on the legacy of Zebra's GK Series printers, offering you the functions and capabilities of its predecessor -and much more. The next-generation ZD421 leverages this heritage to deliver advanced features for a new era of intelligence and forward flexibility.
Simple to Use
Intuitive and Powerful Operation
The ZD421 offers new, advanced features that make it stand apart. It includes a new, more intuitive user interface, powerful architecture and field-upgradeable wireless kit. It also has new media guide and media handling designs that make daily operation even easier
Flexible to Support Nearly Every Use Case
Multiple Models to Match Your Needs

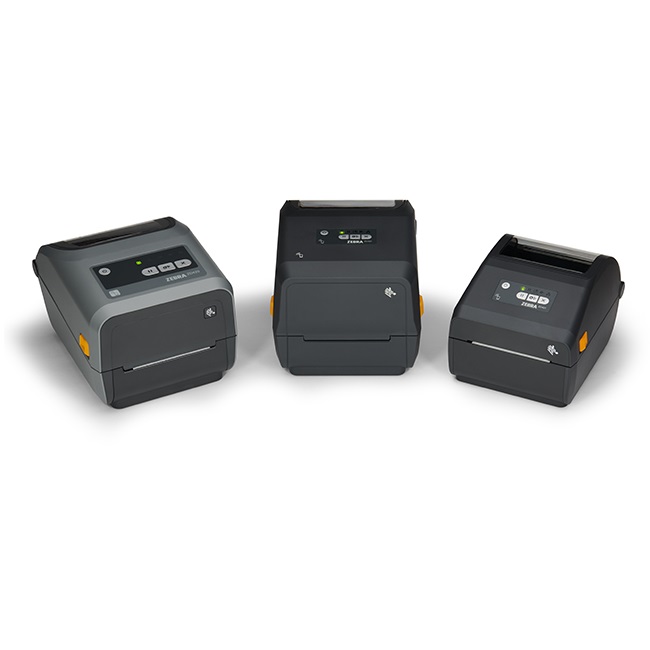

Available in direct thermal, thermal transfer, healthcare, and ribbon cartridge models, the ZD421 meets a wide variety of application requirements.
Ready for Now and What's Next
Get Years of Printing Performance
The ZD421 is designed to handle advancing technology. Featuring an innovative architecture, it's engineered to power future printing. In comparison, it's 30% more powerful than the ZD420 Series and 700% more than the GK Series. This lets you run more tasks, perform more operations simultaneously, maintain security and be ready for what's next.
Technical Specs
Memory
Standard Memory 256 MB
Interfaces/Ports
USB Yes
USB Host Yes
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Ethernet
Power Description
Input Voltage 230 V AC
120 V AC
Power Source AC Supply
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Technical Information
Application/Usage Desktop
Barcode Symbology Supported Industrial 2 of 5
POSTNET
UPC-E
Code 128
UPC 2 or 5 Digit Extension
Code 93
Interleaved 2 of 5
UPC-A
Micro PDF
LOGMARS
Code 11
AZTEC
Planet Code
Code 39
QR Code
EAN-8
EAN-13
MSI
PDF417
ISBT-128
Code 49
Standard 2 of 5
Plessey
Maxi Code
Data Matrix
Codabar
Codablock
Maximum Print Width 104 mm (4.09")
Recommended Use Label/Receipt Print
Connectivity Technology Wired
Features Status Indicator
Dual Wall Frame
Maximum Mono Print Speed 152 mm/s
Mobile Device Printing Yes
Print Color Capability Monochrome
Optional Connectivity Serial (RS-232)
Wireless LAN
Near Field Communication (NFC)
Real-Time Clock Yes
Maximum Print Resolution (dpi) 203
Physical Characteristics
Weight (Approximate) 1.35 kg
Form Factor Portable
Height 150.6 mm
Width 177.3 mm
Depth 220.7 mm
Fonts & Emulation
Language Emulation XML
ZBI
EPL
ZPL II
ZPL
EPL2
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZD4A042-D0PE00EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD421
Product Name ZD421 Direct Thermal Printer
Brand Name Zebra
Miscellaneous
Platform Supported Android
PC
iOS
Environmentally Friendly Yes
Cables Included AC
USB
Energy Star Yes
Power Cable Localization JP
AUS
UK
EU
Media Types & Handling
Media Thickness 4826 µm
Maximum Roll Diameter 127 mm
Media Type Tag Stock
Fanfold
Reflective
Black Mark
Gap
Continuous Label
Roll Fed
Continuous Receipt
Die-cut Label
Receipt
Label
Wristband
Media Sensor Full Width Sensor
Moveable Reflective/Black Mark Sensor
Multi-position Transmissive/Gap Sensor
Maximum Label Width 108 mm
Maximum Label Length 991 mm
What's in the box?
ZD421 Thermal Transfer Printer
Empty Ribbon Take-UP Cores (1 in. and 0.5 in.)
2 x 300 m Ribbon Core Adapters for Non-Zebra Ribbon
AC Power Supply
Power Cord(s)
USB Cable
Quick Start Guide
Regulatory Guide
