Product Description
Elevate your expectations: the advanced desktop printer that delivers the features, flexibility, reliability, and security you need
You need a reliable printer that delivers quality performance, now and for years to come. It needs to offer key features, and be easy to set up, operate, manage and maintain - onsite or remotely. It needs to be secure, whether it is integrated onto your network or not, to prevent downtime and costly cyberattacks. You need it. Zebra delivers it, for more than 50 years. We design our printers to match your workflows, ensuring they are hassle-free and ready to work. Day in and day out. We're always innovating to deliver the best to help you advance your business and be ready for what's next. Building on the legacy of Zebra's popular GK Series, ZD421 printers add even more capabilities and security measures to set you up for years of use.
It's Time to Advance
Migrate from G to Z
The ZD421 builds on the legacy of Zebra's GK Series printers, offering you the functions and capabilities of its predecessor -and much more. The next-generation ZD421 leverages this heritage to deliver advanced features for a new era of intelligence and forward flexibility.
Simple to Use
Intuitive and Powerful Operation
The ZD421 offers new, advanced features that make it stand apart. It includes a new, more intuitive user interface, powerful architecture and field-upgradeable wireless kit. It also has new media guide and media handling designs that make daily operation even easier
Flexible to Support Nearly Every Use Case
Multiple Models to Match Your Needs

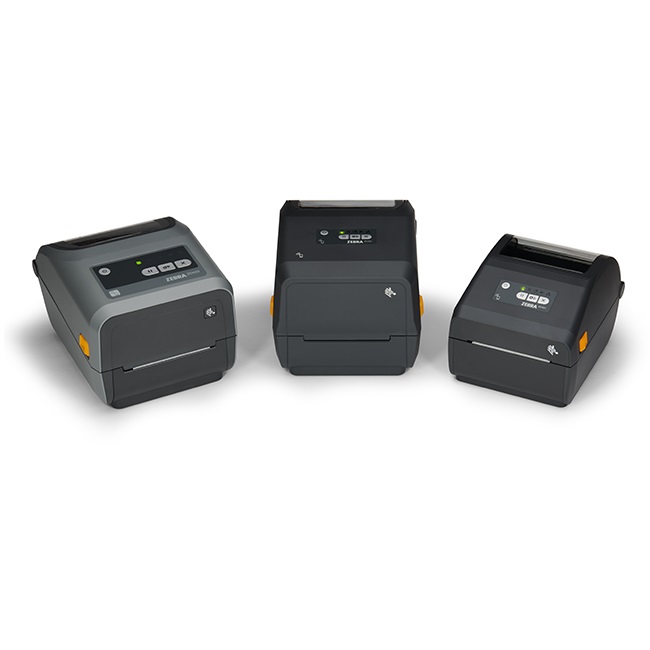

Available in direct thermal, thermal transfer, healthcare, and ribbon cartridge models, the ZD421 meets a wide variety of application requirements.
Ready for Now and What's Next
Get Years of Printing Performance
The ZD421 is designed to handle advancing technology. Featuring an innovative architecture, it's engineered to power future printing. In comparison, it's 30% more powerful than the ZD420 Series and 700% more than the GK Series. This lets you run more tasks, perform more operations simultaneously, maintain security and be ready for what's next.
Features
Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
5 status icons, 3 button user interface
USB 2.0, USB Host
Printer setup mobile app for Android & iOS via BLE (Bluetooth Low Energy 5) connection
Real-Time Clock (RTC)
Dual-wall frame construction
ENERGY STAR® certified
PDF Direct
Two-year standard warranty
Technical Specs
Memory
Standard Memory 256 MB
Warranty
Limited Warranty 2 Year
Interfaces/Ports
USB Yes
USB Host Yes
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Power Description
Input Voltage 230 V AC
120 V AC
Power Source AC Supply
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Technical Information
Application/Usage Desktop
Barcode Symbology Supported EAN-8
Codablock
Code 11
Industrial 2 of 5
Standard 2 of 5
Maxi Code
UPC 2 or 5 Digit Extension
Code 49
ISBT-128
POSTNET
Planet Code
Data Matrix
EAN-13
UPC-E
PDF417
Code 39
Code 93
Micro PDF
AZTEC
Codabar
Code 128
LOGMARS
UPC-A
Interleaved 2 of 5
Plessey
MSI
QR Code
Maximum Print Width 108 mm (4.25")
Recommended Use Label/Receipt Print
Connectivity Technology Wireless
Features Dual Wall Frame
Status Indicator
Maximum Mono Print Speed 102 mm/s
Mobile Device Printing Yes
Print Color Capability Monochrome
Optional Connectivity Serial (RS-232)
Ethernet
Near Field Communication (NFC)
Real-Time Clock Yes
Maximum Print Resolution (dpi) 300
Physical Characteristics
Weight (Approximate) 2.05 kg
Form Factor Portable
Height 189 mm
Width 203.2 mm
Depth 266.7 mm
Fonts & Emulation
Language Emulation ZPL
EPL2
EPL
ZBI
ZPL II
XML
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD4A043-30PW02EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD421
Product Name ZD421 Thermal Transfer Printer
Brand Name Zebra
Miscellaneous
Package Contents
ZD421 Thermal Transfer Printer
Empty Ribbon Take-UP Cores (1 in. and 0.5 in.)
2 x 300 m Ribbon Core Adapters for Non-Zebra Ribbon
AC Power Supply
Power Cord(s)
USB Cable
Quick Start Guide
Regulatory Guide
Platform Supported iOS
Android
PC
Environmentally Friendly Yes
Environmental Certification RoHS
Cables Included AC
USB
Energy Star Yes
Power Cable Localization EU
JP
UK
AUS
Media Types & Handling
Media Thickness 4826 µm
Maximum Roll Diameter 127 mm
Media Type Wristband
Label
Gap
Tag Stock
Roll Fed
Die-cut Label
Continuous Receipt
Black Mark
Receipt
Reflective
Fanfold
Continuous Label
Media Sensor Full Width Sensor
Moveable Reflective/Black Mark Sensor
Multi-position Transmissive/Gap Sensor
Maximum Label Width 112 mm
Maximum Label Length 991 mm
Product Specifications
Max. Mono Print Speed 102mm/s
Max. Print Resolution 300 dpi
Max. Print Width 108mm (4.25")
256MB Standard Memory
ZPL, EPL2, ZBI, ZPL II & XML
USB, Bluetooth & Wireless
2 Years Standard Warranty
