Product Description
ZEBRA D/TOP ZD621R LCD 300DPI T/T MULTI RFID
PREMIUM FEATURES, MAXIMUM PERFORMANCE, RFID CAPABILITIES, AND UNMATCHED SECURITY FOR YEARS OF USE
You need a premium, quality RFID printer that's built to perform flawlessly day in and day out. Rely on Zebra's ZD621R desktop printer, including RFID printing/encoding, advancing the proven and popular ZD500R. Get it all: an innovative new architecture to power our ever-expanding printer capabilities and software. RFID printing and encoding capabilities in a compact desktop printer. Unmatched security that's constantly evolving to safeguard your sensitive data and shield you from cyberattacks. A new standard 4.3-inch, full-color LCD touch display with intuitive menu. Enhanced features, communication, and field-installable media-handling options. And, increased remote-management capabilities. Together, these give you outstanding print performance and industry-leading reliability for years of optimal use, and unparalleled intelligence and security to keep you moving forward.
ELEVATING A PROVEN WINNER
Extending the ZD500R Legacy
Zebra's ZD500R printer/encoder is known for quality and premium performance. You can be confident the next-generation ZD621R includes everything you loved in the legacy printer, and builds on this heritage to deliver best-in-class features and RFID technology for this new era of intelligence.
ZEBRA RFID: MORE TRANSFORMATION, NO COMPLICATION
Print and Encode with Ease
The ZD621R utilizes Zebra's own RE40 RFID module to support a broad range of applications across several industries. Adaptive encoding technology allows for excellent media flexibility and simple RFID calibration, eliminating complex placement guidelines. Optimized to efficiently print and encode labels, the ZD621R gives you greater tracking abilities, deeper visibility and enterprise insights in an ever-competitive business environment.
RFID Backed by the Broadest, Field-Proven Portfolio
Zebra leverages decades of expertise, design thinking, and software development to help you deliver maximum RFID gains, while minimizing the pains that can come with multi-vendor solutions. Zebra gives you the industry's broadest, field-proven RFID portfolio for unmatched accuracy and interoperability. Look to Zebra's consistent, fully scaled platform that anticipates real-world challenges and elevates the performance of every system, device, tag and worker.
EXPECT THE BEST
Premier Printing Performance
From outstanding print quality to RFID printing/encoding, portability for application flexibility to emerging technology, and field-installable options, the ZD621R is a thermal transfer RFID printer that supports a wide variety of use cases and requirements.
Features
Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
5 status icons, 3 button user interface
Ethernet, Serial, USB 2.0, USB Host
Printer setup mobile app for Android & iOS via BLE (Bluetooth Low Energy 5) connection
Real-Time Clock (RTC)

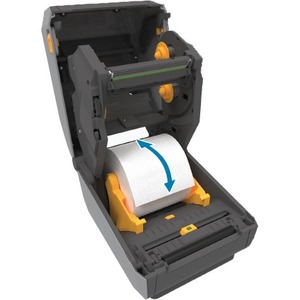

Media dancer for excellent print quality

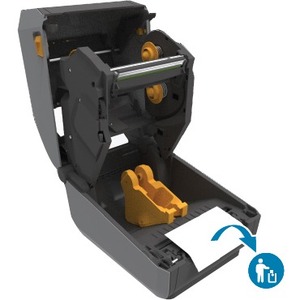

OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR® certified
Technical Specs
Warranty
Limited Warranty 2 Year
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Interfaces/Ports
USB Yes
Serial Port Yes
USB Host Yes
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
RFID Yes
Power Description
Input Voltage 230 V AC
120 V AC
Power Source AC Supply
Technical Information
Application/Usage Desktop
Barcode Symbology Supported QR Code
Data Matrix
Code 11
EAN-8
EAN-13
PDF417
EAN With 2 or 5 Digit Extension
UPC-A
POSTNET
LOGMARS
Code 39
Interleaved 2 of 5
ISBT-128
Code 93
UPC-E
Codabar
Codablock
Code 49
MSI
Micro PDF
Planet Code
Industrial 2 of 5
Code 128
AZTEC
Plessey
Standard 2 of 5
UPC 2 or 5 Digit Extension
Maximum Print Width 108 mm (4.25")
Recommended Use Label/Receipt Print
Connectivity Technology Wired & Wireless
Features Status Indicator
LCD Display
RFID Encoder
UHF Reader
Dual Wall Frame
RFID Reader
Maximum Mono Print Speed 152 mm/s
Mobile Device Printing Yes
Print Color Capability Monochrome
Real-Time Clock Yes
Maximum Print Resolution (dpi) 300
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Physical Characteristics
Weight (Approximate) 2.49 kg
Height 190.5 mm
Width 203.2 mm
Depth 266.7 mm
Fonts & Emulation
Language Emulation XML
ZBI
ZPL II
ZPL
EPL
EPL2
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD6A143-30PFR2EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD621R
Product Name ZD621R Thermal Transfer Printer
Product Series ZD621
Brand Name Zebra
Miscellaneous
Package Contents
ZD621R Thermal Transfer Printer
Empty Ribbon Take-up Cores (1 in. and 0.5 in.)
3 in. Media Core Adapters
2 x 300 m Ribbon Core Adapters for Non-Zebra Ribbon
AC Power Supply
Power Cord(s)
USB Cable
Quick Start Guide
Regulatory Guide
Platform Supported Android
PC
iOS
Environmentally Friendly Yes
Environmental Certification RoHS
Energy Star Yes
Power Cable Localization UK
EU
AUS
JP
Media Types & Handling
Media Thickness 190 µm
Maximum Roll Diameter 127 mm
Media Type Label
Black Mark
Tag
Fanfold
Wristband
Continuous Receipt
Die-cut Label
Roll Fed
Continuous Label
Tag Stock
Receipt
Media Sensor Full Width Sensor
Moveable Reflective/Black Mark Sensor
Multi-position Transmissive/Gap Sensor
Maximum Label Width 118 mm
Maximum Label Length 991 mm
