Product Description
PREMIUM FEATURES, MAXIMUM PERFORMANCE, RFID CAPABILITIES, AND UNMATCHED SECURITY

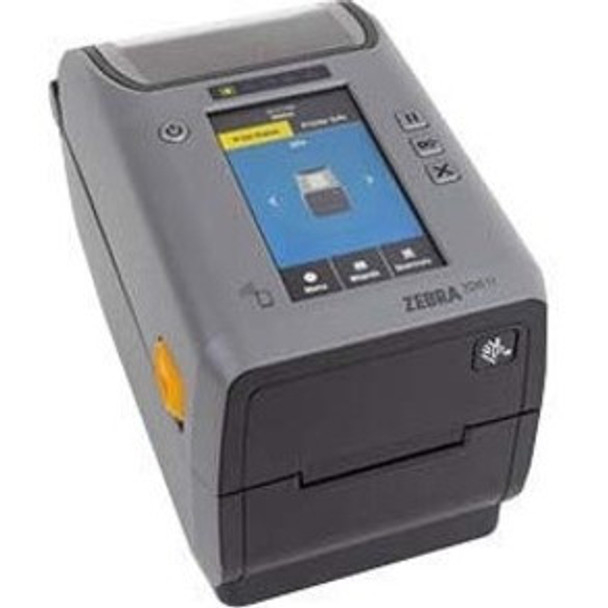

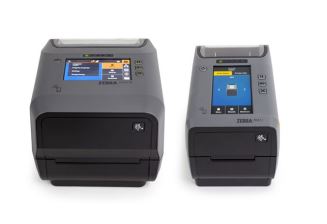

You need a compact, premium RFID printer/encoder that's built to perform flawlessly - day in and day out. Rely on Zebra's 4-inch ZD621R desktop RAIN/RFID printer/encoder, or the ZD611R, the industry's only 2-inch desktop RAIN RFID printer/encoder. Get it all: an innovative architecture to power our ever-expanding printer capabilities and software. Unmatched security to safeguard your sensitive data and shield you from cyberattacks. A large 4.3-inch, full-color LCD touch display with intuitive menu. Enhanced features, communication and field-installable media-handling options, and increased remote-management capabilities. Together, these give you outstanding print performance and industry-leading reliability, along with unparalleled intelligence and security, to keep you moving forward.
EXPANDING ZEBRA'S RFID DESKTOP CAPABILITIES
Print and Encode 4- and 2-inch Labels and Tags
Building on the legacy of the ZD500R, the 4-inch ZD621R features an innovative architecture that is nearly 32% more powerful. Expanding the desktop RFID line, the ZD611R shares that architecture and is the industry's only two-inch desktop RAIN RFID printer/encoder. Both the ZD621R and ZD611R can perform more operations simultaneously, deliver best-practice security, and are engineered to evolve with emerging technology.
ZEBRA RFID: MORE TRANSFORMATION, NO COMPLICATION
Flexibility for a Broad Range of Uses and Applications
The ZD621R and ZD611R utilize Zebra's own RE40 RFID module to support a number of applications across several industries. Adaptive encoding technology allows for excellent media flexibility and simple RFID calibration, eliminating complex placement guidelines. Optimized to efficiently print and encode labels, tags, and wristbands, they give you greater tracking abilities, deeper visibility and enterprise insights in an ever-competitive business environment.
RFID Backed by the Broadest, Field-Proven Portfolio
Zebra leverages decades of expertise, design thinking, and software development to help you deliver maximum RFID gains, while minimizing the pains that can come with multi-vendor solutions. Zebra gives you the industry's broadest, field-proven RFID portfolio for unmatched accuracy and interoperability. Look to Zebra's consistent, fully scaled platform that anticipates real-world challenges and elevates the performance of every system, device, tag and worker.
EXPECT THE BEST
Premier Printing Performance
From outstanding print quality to RFID printing/encoding, portability for application flexibility to emerging technology, and field-installable options, the ZD621R and ZD611R thermal transfer RFID printers support a wide variety of use cases and requirements.
Features
Print methods: Thermal Transfer
ZPL and EPL programming languages
4.3" full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface
Ethernet, USB 2.0, USB Host
Printer setup mobile app for Android and iOS via BLE
(Bluetooth Low Energy 5) connection
BLE is intended for use with the Zebra printer setup mobile app only
Real-Time Clock (RTC)
Media dancer for excellent print quality
OpenACCESS™ for easy media loading
Technical Specs
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported
Link-OS
Warranty
Limited Warranty 2 Year
Interfaces/Ports
USB Yes
USB Host Yes
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Fast Ethernet
RFID Yes
Technical Information
Application/Usage Desktop
Barcode Symbology Supported Macro PDF-417
German Post Code
UPC-A with 2 and 5 Add-ons
Interleaved 2 of 5
UPC-A
PDF417
EAN-8
Micro PDF-417
UPC-E
Code 39
EAN-8 With 2 or 5 Digit Extension
RSS-14
POSTNET
UPC-E with EAN 2 or 5-Digit Extension
EAN-13 With 2 and 5 Digit Extension
Code 128 (A/B/C)
Maxi Code
EAN-13
Data Matrix
Plessey
MSI-3
Codabar
Code 93
UCC/EAN 128
Maximum Print Width 56 mm (2.20")
Recommended Use Label Print
Connectivity Technology Wired
Features LCD Display
Compact
Dual Wall Frame
Maximum Mono Print Speed 203 mm/s
Print Color Capability Monochrome
Optional Connectivity Serial (RS-232)
Wireless LAN
Real-Time Clock Yes
Maximum Print Resolution (dpi) 203
Physical Characteristics
Weight (Approximate) 1.63 kg
Height 169.2 mm
Width 138.7 mm
Depth 242.9 mm
Fonts & Emulation
Language Emulation EZPL
ZPL
EPL2
XML
ZPL II
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD6A122-T0PER2EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD611R
Product Name ZD611R Thermal Transfer Printer
Brand Name Zebra
Miscellaneous
Package Contents
ZD611R Thermal Transfer Printer
empty ribbon take-up cores: ZD611R 0.5 in.
AC power supply
Power Cord(s)
USB Cable
Quick Start Guide
Regulatory Guide
Platform Supported PC
Android
iOS
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
Cables Included USB
AC
Energy Star Yes
Power Cable Localization AUS
UK
EU
JP
Power Adapter Included Yes
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Fanfold
Notch
Continuous Label
Label
Wristband
Continuous Receipt
Gap
Tag Stock
Roll Fed
Die-cut Label
Media Sensor Multi-position Transmissive/Gap Sensor
Moveable Reflective/Black Mark Sensor
Maximum Label Width 57.15 mm
Maximum Label Length 39 mm
