Product Description

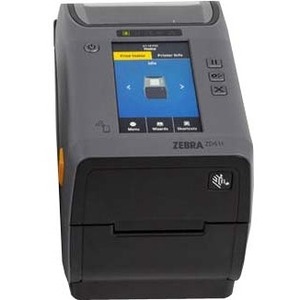

ZEBRA D/TOP ZD611 203DPI T/T BT/ETH/USB PEEL
Specifications are provided for reference and are based on printer tests using Zebra brand supplies. Results may vary in actual application settings or when using other than recommended Zebra supplies. Zebra recommends always qualifying any application with thorough testing.
Features
8 ips maximum print speed
ZPL II® and EPL2™ programming languages
Connectivity: Ethernet, USB 2.0, USB Host
4.3 in. full-color touch LCD (480 × 272 resolution), 5 status icons, 3 button user interface
Tested for robust tolerance to temperature, humidity, dust and other tough environmental challenges
Standard on thermal transfer models
Printer setup mobile app for Android™ and iOS via Bluetooth® Low Energy 5 (BLE) connection
BLE is best used for printer setup and light data transfer events. For best performance when printing, use a printer with Bluetooth Classic.
Technical Specs
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported
Link-OS
Warranty
Limited Warranty 2 Year
Environmental Conditions
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Interfaces/Ports
USB Yes
USB Host Yes
Technical Information
Application/Usage Desktop
Barcode Symbology Supported Plessey
Code 39
Codabar
RSS-14
UCC/EAN 128
Data Matrix
UPC-A
EAN-8
Micro PDF-417
UPC-E
PDF417
German Post Code
Macro PDF-417
EAN-8 With 2 or 5 Digit Extension
EAN-13 With 2 and 5 Digit Extension
Maxi Code
UPC-E with EAN 2 or 5-Digit Extension
Code 93
Interleaved 2 of 5
POSTNET
Code 128 (A/B/C)
UPC-A with 2 and 5 Add-ons
EAN-13
MSI-3
Maximum Print Width 56 mm (2.20")
Recommended Use Label Print
Connectivity Technology Wired
Features LCD Display
Compact
Maximum Mono Print Speed 203 mm/s
Peel Facility Yes
Print Color Capability Monochrome
Maximum Print Length 991 mm
Optional Connectivity Wireless LAN
Serial (RS-232)
Real-Time Clock Yes
Maximum Print Resolution (dpi) 203
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Fast Ethernet
Physical Characteristics
Weight (Approximate) 1.63 kg
Height 169.2 mm
Width 138.7 mm
Depth 242.9 mm
Fonts & Emulation
Language Emulation ZPL
ZPL II
EPL2
EZPL
XML
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD6A122-T1PE00EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD611
Product Name ZD611 Thermal Transfer Printer
Brand Name Zebra
Miscellaneous
Platform Supported Android
PC
iOS
Energy Star Yes
Power Cable Localization JP
UK
AUS
EU
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Fanfold
Continuous Receipt
Wristband
Roll Fed
Label
Gap
Die-cut Label
Tag Stock
Notch
Continuous Label
Linerless
Media Sensor Label Taken Sensor
Maximum Label Width 59.94 mm
Maximum Label Length 39 mm
What's in the box?
ZD611 Direct Thermal Printer
AC Power Supply
Power Cord
USB Cable
Quick Start Guide
Regulatory Guide
Product Specifications
Max. Print Speed 203mm/s
Max. Print Res 203 dpi
Max. Print Width 56mm(2.20")
256MB Standard Memory
ZPL II, EPL2, EZPL & XML
USB, Network & Bluetooth
2 Years Limited Warranty
