Product Description

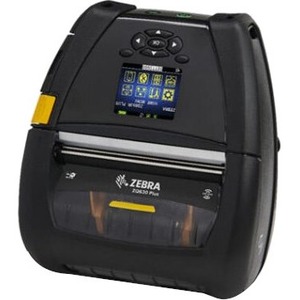

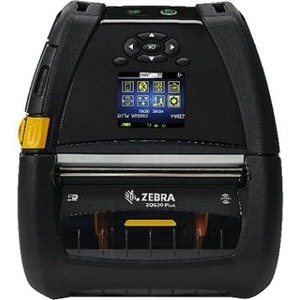

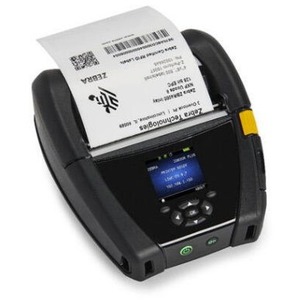

ZEBRA MOB ZQ630 PLUS 4IN BT4
Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease of use, and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, set up, and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.
Premium Features for Maximum Productivity
The Latest Wireless Connections
The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.
Industry-Standard 802.11r Fast Roaming for Seamless Access
With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
Instant Wake-Up Over Wi-Fi
This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a Snap
The ZQ600/ZQ600 Plus Series provides a large display, a user-friendly interface, and an easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.
Business Tough-Built for All-Day Every Day Enterprise Use
While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display, and a seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
Unsurpassed Battery Power Management
Do More on a Single Charge
With the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power
Features
Apple® iOS, Android™ and Windows® Mobile connectivity
Direct thermal printing of barcodes, text, and graphics
CPCL, EPL™ and ZPL® programming languages
512 MB Flash supports downloadable programs, receipt formats, fonts, and graphics (128 MB available for user storage)
Built-in battery charger
Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
Black mark and gap media sensing using fixed center position sensors
Easy-to-use peel and present mode
Label present sensor for issuing labels one at a time
Tear bar for easy media dispensing
Technical Specs
Battery Information
Battery Capacity 6800 mAh
Display & Graphics
Display Screen Yes
Technical Information
Application/Usage Mobile
Industrial
Desktop
Barcode Symbology Supported Code 93
2 and 5 Digits Add-on
Data Matrix
EAN-13
Codabar (NW-7)
QR Code
POSTNET
TLC 39
MSI PLESSEY
GS1 DataBar
UPC-A
Code 128
UPC E with 2 and 5 add on
Micro PDF-417
FIM
UCC/EAN 128
AZTEC
PDF417
Interleaved 2 of 5
EAN-8
Maxi Code
Code 39
Maximum Print Width 104 mm (4.09")
Recommended Use Label/Receipt Print
Connectivity Technology Wireless
Features Belt Clip
Water Resistant
Shoulder Strap
Dust Resistant
Maximum Mono Print Speed 115 mm/s
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 813 mm
Character Sets Agfa Monotype
Universal Font Scaling Technology (UFST)
Optional Connectivity USB
Wireless LAN
Ethernet
Serial (RS-232)
Ingress Protection (IP) Rating IP54
Maximum Print Resolution (dpi) 203
Memory
Standard Memory 256 MB
Power Description
Power Source Battery
Software
Operating System Supported Link-OS
Warranty
Limited Warranty 1 Year
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Environmental Conditions
Storage Relative Humidity 10% - 90%
Storage Temperature -25°C - 65°C
Operating Temperature -20°C - 50°C
Operating Relative Humidity 10% - 90%
Miscellaneous
Platform Supported PC
iOS
Android
Certifications & Standards
Emissions:
FCC Part 15
Subpart B
EN55022 Class-B
EN60950
EN55024
VCCI class B
Susceptibility:
EN55024
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
Safety:
CE
TUV
CSA
Physical Characteristics
Weight (Approximate) 1.10 kg
Height 82.6 mm
Width 165.1 mm
Depth 186.7 mm
Fonts & Emulation
Language Emulation ZBI 2.0
EPL
XML
CPCL
ZPL
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZQ63-AAFAA04-00
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZQ630 Plus
Product Name ZQ630 Plus Direct Thermal Printer
Product Series ZQ600
Brand Name Zebra
Media Types & Handling
Media Thickness 165.1 µm
Maximum Roll Diameter 66.04 mm
Media Type Label
Black Mark
Tag
Receipt
Black Bar
Die-cut Label
Gap
Linered Media
Media Sensor Gap Sensor
Black Mark Sensor
Maximum Label Width 111.76 mm
Maximum Label Length 812.80 mm
