Brief Overview
Canon Mono Laser Multifunction with Duplex and Wireless Print /
Copy / Scan / Fax,33ppm Mono Print and Copy,1200 x 1200dpi Printing.
Product Description

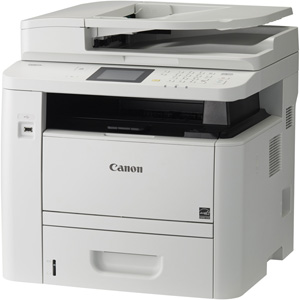

The Canon imageCLASS MF416dw ensures efficiency with its 4-in-1
functionality. The MF416dw offers feature rich capabilities in a high
quality, reliable printer that is ideal for any small office or home
office environment.
Print Specifications
Printing Method Monochrome Laser Beam Printing
Print Speed A4 Up to 33ppm
Print Resolution 600 x 600dpi
Print Quality with Image Refinement Technology 1200 x 1200dpi (equivalent)
2400 (equivalent) x 600dpi
Warm up Time (From Power On) 16.0secs. or less
First Printout Time (FPOT) A4 6.3secs. or less
Recovery Time (From Sleep Mode) 5.0secs. or less
Print Language UFR II, PCL 6, Adobe PostScript3
Auto Duplex Print Standard
Available Paper Size for Auto Duplex Print A4, Legal*1, Letter, Foolscap, Indian Legal
Print Margins 10mm - top, bottom, left, right (Envelope Size)
5mm - top, bottom, left, right (Other than Envelope Size)
Direct Print from USB Supported File format: JPEG, TIFF, PDF
Print Features Poster, Booklet, Watermark, Page Composer, Toner Saver
Copy Specifications
Copy Speed A4 Up to 33ppm
Copy Resolution Up to 600 x 600dpi
First Copy Time (FCOT) A4 10.0secs. or less
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Frame Erase, Memory Sort, 2 on 1, 4 on 1, ID Card Copy
Scan Specifications
Scan Type Color Contact Image Sensor
Scan Resolution Optical: Up to 600 x 600dpi
Driver Enhanced: Up to 9600 x 9600dpi
Scan Speed Approx. 3 sheets per minute (Monochrome)
Approx. 7 sheets per minute (Colour)
Color Depth 24-bit
Duplex Scan Yes
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To USB (via USB Host) Yes
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA
SEND Specifications
SEND Method SMB, E-mail, FTP, iFAX Simple
Colour Mode Full Colour, Grayscale, Monochrome
Scan Resolution 300 x 300dpi, 200 x 200dpi
File Format JPEG, TIFF, PDF, Compact PDF, PDF (OCR)
Fax Specifications
Modem Speed Up to 33.6kbps
Fax Resolution Up to 406 x 391dpi
Compression Method MH, MR, MMR, JBIG
Memory Capacity *2 Up to 512 pages
Favourite Dials (in address book) 19 dials
Coded Dials Up to 281 dials
Group dials / Destinations Max. 199 dials / Max. 199 destinations
Sequential Broadcast Max. 310 destinations
Receive Mode Fax Only, Manual, Answering, Fax / Tel Auto Switch
Memory Backup Permanent fax memory backup.
(Backup with flash memory)
Fax Features Fax Forwarding, Dual Access, Remote Reception, PC Fax
(Transmission only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax
Activity Results Reports, Fax Activity Management records
Transmission Time Approx. 3secs.
Paper Handling Specifications
Duplex Auto Document Feeder (ADF)
(Based on 80g/m2) 50 sheets
Available Paper Size for ADF A4, B5, A5, B6, Letter, Legal, Statement
(min. 128 x 139.7mm to max. 215.9 x 355.6mm)
Paper Input
(Based on Plain Paper 60-89g/m2)
Standard Cassette 250 sheets
Multi-Purpose Tray 50 sheets
Optional Paper Feeder 500 sheets
Maximum Paper Capacity 800 sheets
Paper Output 150 sheets (face down), 1 sheet (face up)
Paper Sizes
Standard Cassette /
Optional Paper Feeder A4, B5, A5, Legal, Letter, Statement, Executive,
Government Letter, Government Legal, Foolscap, Indian Legal
Custom: min. 105 x 148mm to max. 215.9 x 355.6mm
Multi-Purpose Tray A4, B5, A5, Legal, Letter, Statement, Executive, ,
Government Letter, Government Legal, Foolscap, Indian Legal, Postcard,
Index card
Envelope: COM10, Monarch, C5, DL
Custom: min. 76.2 x 127mm to max. 215.9 x 355.6mm
Paper Types Plain, Heavy, Recycled, Colour, Label, Postcard, Envelope
Paper Weight
Standard Cassette /
Optional Paper Feeder 60 - 128g/m2
Multi-Purpose Tray 60 - 163g/m2
Connectivity & Software
Standard Interfaces
Wired USB Device 2.0 High-Speed, 10 / 100 / 1000 Base-T Ethernet (Network)
Wireless Wi-Fi 802.11b/g/n (Infrastructure mode, WPS Easy Setup), Direct Connection
Near Field Communication (NFC) Yes (Passive)
Network Protocol Print: LPD, RAW, WSD-Print (IPv4, IPv6)
Scan: Email, SMB, WSD-Scan (IPv4, IPv6)
TCP / IP Application Services: Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6)
DHCP, ARP + PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
Management: SNMPv1, SNMPv3 (IPv4, IPv6)
Network Security
Wired IP / Mac address filtering, HTTPS, SNMPv3, IEEE802.1x
Wireless WEP 64 / 128 bit, WPA-PSK (TKIP / AES), WPA2-PSK (AES)
One-Push Wireless Configuration Wi-Fi Protected Setup (WPS)
Department ID Yes, up to 300 IDs
Mobile Solutions Canon PRINT Business, Apple® AirPrint™, Mopria® Print Service, Google Cloud Print™, Canon Print Service
Address Book LDAP
Compatible Operating Systems *3 Windows® 10, Windows® 8.1, Windows® 8,
Windows® 7, Windows® Vista, Windows® Server 2012 R2, Windows® Server
2012, Windows® Server 2008 R2, Windows® Server 2008, Windows® Server
2003 R2, Windows® Server 2003, Mac OS X 10.6 & up ,Linux *4
Software Included Printer driver, Fax driver, Scanner driver, Network
Scan Utility, MF Scan Utility, Presto! PageManager, Toner Status
General Specifications
Device Memory 1 GB
LCD Display 3.5" QVGA Colour Touch Screen
Dimensions (W x D x H) Normal State: 390 x 473 x 431mm
With the installation of Optional Paper Feeder: 390 x 473 x 566.7mm
Weight 18.5kg (without cartridge)
19.2kg (with cartridge)
Power Consumption
Maximum 1,160W or less
Average (During Operation) Approx. 590W
Average (During Standby) Approx. 9.4W
Average (During Sleep) Approx. 1.4W (USB)
Approx. 1.5W (wired LAN)
Approx 2.1W (wireless LAN)
Noise Levels *5 During Operation:
Sound Pressure Level (Bystander's position): 53.0dB
Sound Power Level: 70.6dB or less
During Standby:
Sound Pressure Level (Bystander's position): Inaudible *6
Sound Power Level: 53dB or less
Operating Environment Temperature: 10 - 30°C
Humidity: 20% - 80% RH (no condensation)
Power Requirements AC 220 - 240V (±10%), 50 / 60Hz (±2Hz)
Toner Cartridge*7 CRG 319: 2,100 pages
CRG 319 II: 6,400 pages
Monthly Duty Cycle*8 Up to 50,000 pages
Specifications Summary
Mobile Printing Apple AirPrint
Interface USB 2.0
Networking Wired/Wireless
What's in the box?
imageCLASS MF416dw product
Standard Cartridge
Power Cord
Starter Guide / Manuals
User Software DVD-ROM
Warranty Card
Telephone Cable
Product Specifications
Up to 33ppm in Mono
Up to Resolution 600 x 600 dpi
250 Sheet Input Tray
1GB RAM Memory
Automatic Double Sided Printing
USB, Network & Wireless
One Year Limited Warranty
Brochure for Canon i-SENSYS MF416dw A4 Mono Multifunction Laser Printer
