Product Description
Basic Specs
Functions Print, Scan, Copy, Fax
Printer Type Laser Printer
Print Speed Up to 50 (A4) / Up to 52 (Letter) ppm
Paper Type Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick
Paper Size A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity Up to 1,660 sheets of 80 gsm plain paper (with Added Optional Trays)
Print
Resolution Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type Plain Paper, Letterhead, Colored Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size A4
Paper handling
Tray #1 - Maximum Paper Capacity Up to 520 sheets of 80 gsm plain paper
Tray #2 - Maximum Paper Capacity
LT-5505: Up to 250 sheets of 80 gsm plain paper

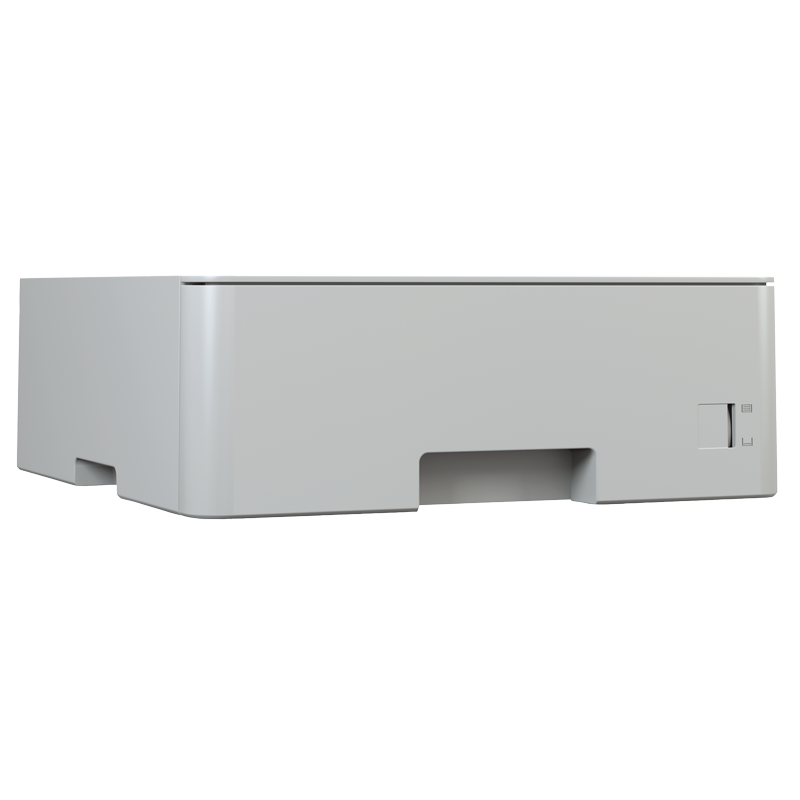

LT-6505: Up to 520 sheets of 80 gsm plain paper
Multi-purpose Tray - Maximum Paper Capacity Up to 100 sheets of 80 gsm plain paper
Automatic Document Feeder (ADF) Maximum Paper Capacity Up to 70 sheets of 80 gsm plain paper
Paper Output Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Enlarge/ Reduce 25% to 400% (in increments of 1%)
Resolution Up to 1200 x 600 dpi
Scan
Resolution - Interpolated Up to 19200 x 19200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF) Up to 600 x 600 dpi
Fax
Compatibility ITU-T Super G3
Modem Speed 33.6 Kbps
Memory Transmission Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Out of Paper Reception Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Connectivity
Connectivity Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS Yes
Display & Memory
Display Type 5.0" Colour Touchscreen LCD
Memory Capacity 512 MB
Operation
Power Source 220 - 240 V AC 50/60 Hz
Power Consumption - Ready Approximately 31 W
Power Consumption - Sleep Approximately 6.0 W
Power Consumption - Power Off Approximately 0.05 W
Supported Operating Systems
Supported OS Windows 10,11, Server 2012 / 2012 R2 / 2016 / 2019 / 2022

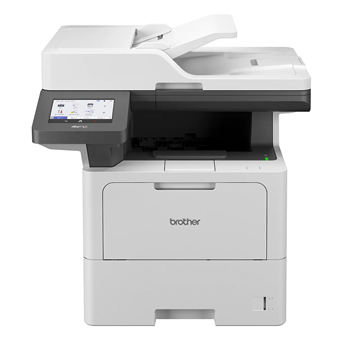

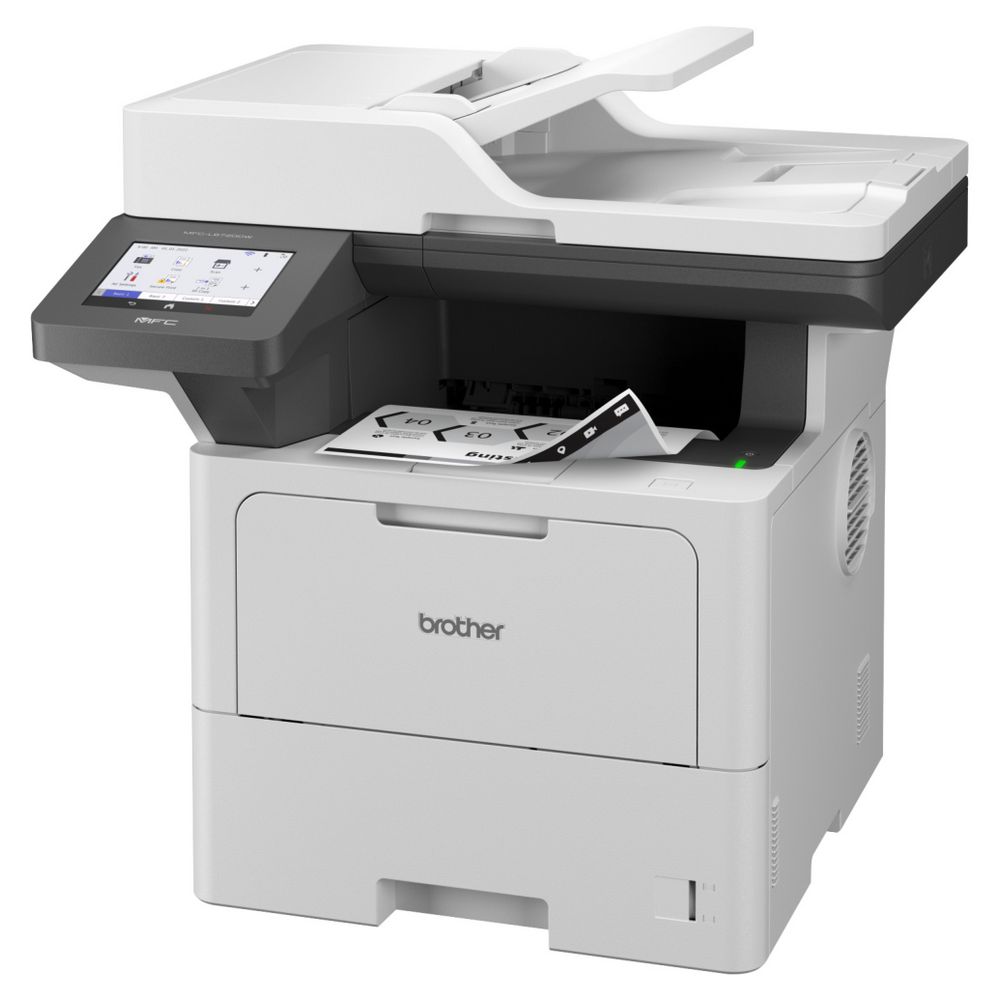

Brochure for Brother MFC-L6720DW, A4, Mono Multifunction Laser Printer
