Product Description

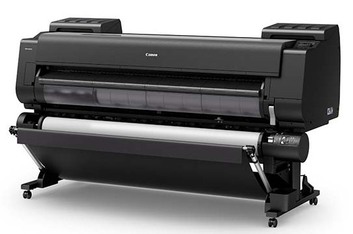

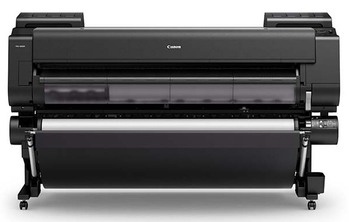

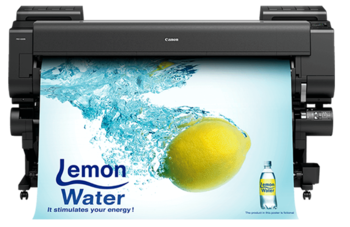

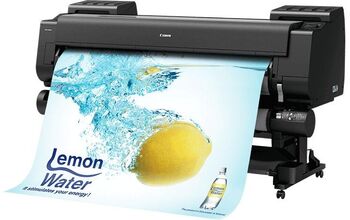

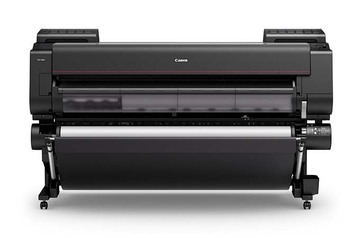

The 8-color 60-inch imagePROGRAF PRO-6100S printer designed for the poster and signage markets exceeds expectations for speed and color consistency in a large format production printer. The use of a 1.28-inch wide 12-channel integrated compact print head, LUCIA PRO ink set , a high-precision mechanical platform and the L-COA PRO high-speed image processing engine achieves a balance between high-speed printing and exceptional print quality.
The imagePROGRAF PRO-6100S has been designed to include intelligent technology for advanced media handling, increased security features, borderless printing and improved operational design.
Printer Type
8-Color 60-inch Printer
Number of Nozzles
Total: 18,432
All colors: 1,536 nozzles
Nozzle Pitch
600 dpi x 2
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
32bit: Windows® (7/8.1/10)
64bit: Windows 7, Windows 8.1, Windows 10Windows Server 2008R2, Windows Server 2012/2012R2Windows Server 2016, Windows Server 2019
Mac (OS 10.11.6), (Mac OS 10.12 – 10.15)
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
USB Thumb Drive
Ink Droplet Size
minimum 4 picoliter
Ink Capacity
160, 330, or 700ml per color*
Ink Droplet Size
Pigment based LUCIA PRO Ink
Color Set
Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray
Hard Drive
500GB
Media Width
Cut Sheet - 6- 60
Roll Feed - 6 - 60
Media Thickness
Roll: 0.07 - 0.8 mm (2.8 - 31.5mil)
Maximum Roll Print Length
Roll Feed - 59' (18 meters)**
Maximum Media Roll Diameter
6.7 (170mm)
Borderless Printing Width
Custom roll width 6 – 60 with micro margin technology
Paper Feed Method
Roll Feed: Two Rolls, Front-loading, Front Output
Manual Feed: Front-loading, Front Output
Languages
Swift Graphic Raster (SGRaster)
Noise Level Approx
Operation: 49 dB (A) or less
Accoustic Power: 6.7 Bels or less
Physical Dimensions
46.0 (H) x 78.7 (W) x 38.7 (D) (with basket open)
Weight
approx.302 lbs (roll holder included, no inks, no print heads)
Power Source
AC 100-240V（50-60Hz）
Power Consumption
Maximum: 109 W or less
Standby 2.0 W or less
Power Off: 0.3 W or less
Operating Environment
Temperature: 59 - 86°F
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-1100/PFI-1300/PFI-1700)
Software Included
Professional Print & Layout4, imagePROGRAF Printer Driver, Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Direct Print & Share, Gallery Wrap Feature
What's in the box?
Printer, 1 print head, 3 inch paper core attachment, Power cable, 1 set of starter ink tanks, Set up guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), Poster Artist Lite CD-ROM, EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet
Product Specifications
8-Color 60-inch Printer
Max Res 2400 x 1200 dpi
Max. 6.7 Media Roll Diameter
3GB Standard Memory
500GB Hard Drive
USB, Network & Wireless
One Year on site Warranty
