Brief Overview

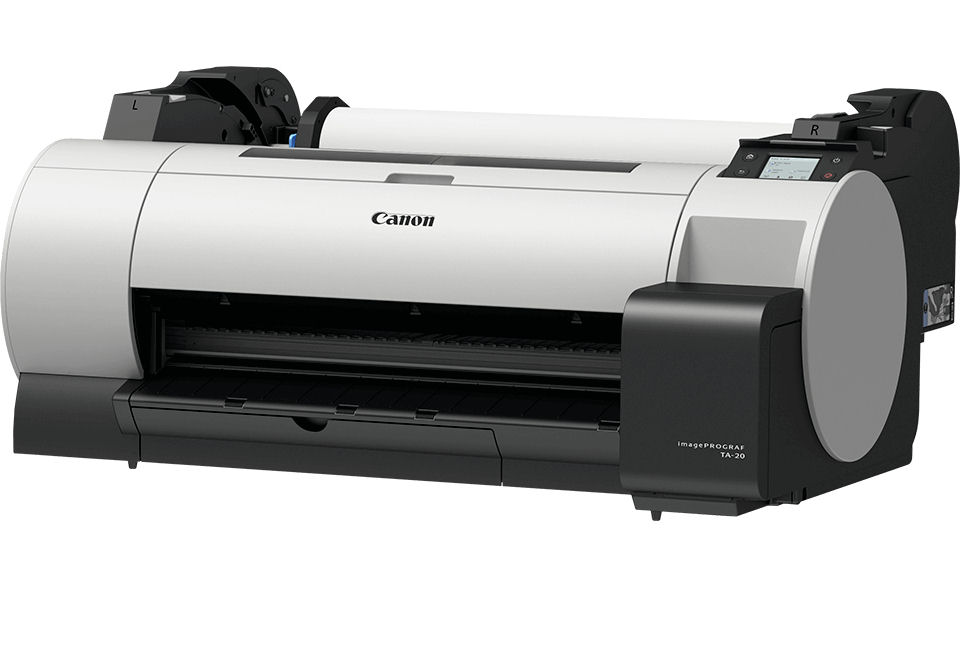

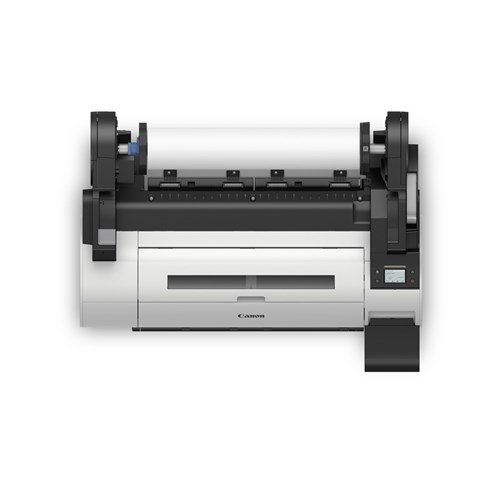

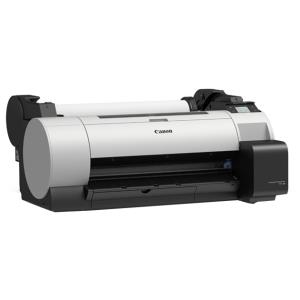

iPF TA-20 24'' 5 Colour Graphics Large Format Printer with LFP Roll, bundle inclusion is main unit and 90 gsm matt paper roll for installation
Product Description
Fast and flexible printing to maximise ink and media usage
Boost your productivity and minimise costs, with a 55ml ink tank designed for smaller print jobs. Innovative imaging technology increases precision and reduces media wastage, with three- and four-sided borderless printing on any roll width.
High performance
Advanced imaging technology delivers precise printing, with powerful colour from LUCIA TD ink.
Quiet and compact
Seamlessly fits into any office, with reduced operation noise and full front accessibility.
Accurate ink placement
Print sharp lines with an innovative Air Feeding System that keeps paper flat for high accuracy
Technology
Printer Type 5 colors 24”/610mm
Print Technology Canon Bubblejet on Demand 6 colours integrated type
(6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles 15,360 nozzles (MBK 5,120 nozzles, Other Colors 2,560 nozzles each)
Line Accuracy ±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
Nozzle Pitch 1,200dpi (2 lines)
Ink Droplet Size minimum 5 pl per colour
Ink Capacity
Sales Ink: 55ml
Bundled Starter Ink: 55ml (2 x MBK, 1 x BK,C,M,Y)
Ink Type
Pigment inks - Matte Black, Black, Cyan, Magenta, Yellow
OS Compatability
Microsoft Windows 32 Bit: Vista, 7, 8, 8.1, 10
Microsoft Windows 64 Bit: Windows 7, 8.1, 10,
Windows Server 2008R2, Windows Server
2012/2012R2, Windows Server 2016,
Windows Server 2019
Apple Macintosh: OS X10.10.5~ OS X 10.11,
macOS 10.12~macOS 10.15
Printer Languages
SG Raster (Swift Graphic Raster),HP-GL/2, HP RTL,
JPEG (Ver. JFIF1.02)
Standard Interfaces
USB B Port: Hi-Speed
Ethernet: IEEE 802.3 10base- T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
* Please refer to user manual how to activate /deactivate the wireless LAN
Memory
Standard Memory 2 GB
Hard Drive NO
Print Time for A1 Page Size
Media Type
CAD Drawing
Print Mode Print Time
Plain Paper (A1 page size)
Fast: 00:32 min
Standard: 00:56 min
Poster
Print Mode Print Time
Plain Paper (A1 size Portrait)
Fast: 00:30 min
Standard: 00:49 min
Heavy Coated Paper (A1 page size)
Print Mode Print Time
Fast: 00:58 min
Standard: 01:46 min
Media Handling
Media Feed and Output
Roll Paper: One Roll, Upper-loading, Front Output
Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 203.2 -610 mm
Cut sheet: 210 - 431.8 mm
Media Thickness
Roll/Cut: 0.07 - 0.8 mm
Minimum Printable Length
Roll paper: 203.2 mm
Cut sheet: 279.4 mm
Maximum Printable Length
Roll paper: 18 m
(Varies according to the OS and application)
Cut sheet: 594mm
Maximum Media Roll Diameter
150 mm or less
Media Core Size
Internal diameter of roll core: 2"/3"(option)
Margins Recommended area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 20 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Manually switchable by user
Media Take-up roll unit N/A
Borderless Printing Width (Roll Only)
(Printable) 203.2-610mm
*Roll paper only * No size restriction
Maximum number of delivered prints
Standard position: 1 sheet
Dimensions and Weight
Physical Dimensions WxDxH (mm) and Weight (Kg)
982 x 748 x 438 mm
37 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions WxDxH (mm) and Weight (Kg)
Printer (Main unit with pallet) 1147 x 874 x 542 mm 49 kg
Power and Operating Requirements
Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Operation: 52 W or less
Sleep mode: 3.6W or less
Default setting for the time to enter the Sleep mode: approx. 5 mins
Power off: 0.3 W or less
Operating Environment
Temperature: 15~30oC, Humidity: 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)
Operation: 42 dB (A) (Plain paper, line drawing, standard mode)
Standby: 35 dB (A) or less
Operation: 5.8 Bels (Plain paper, line drawing, standard
mode) (Measured on ISO 7779 standard and described
based on ISO9296 standard)
Regulations
Europe: CE mark, Russia: EAC,
Certificates
TUV, CB
What's Included
What's in the Box?
Printer, 1 print head, Power Cable, 1 set of starter ink tanks, Set up guide, Quick Guide, Safety/Standard Environment leaflet, User Software CD-ROM (Win),
EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet
Software Included
imagePROGRAF TA- Unified Printer Driver,
Other software available as Download from Web.
Options
Optional Items
2/3" Roll Holder: RH2-28
Consumable
User Replaceable Items
Ink Tank: PFl-030 (55ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
Main Unit inclusions:
iPF TA-20 Printer
Print Drivers and Utilities
PosterArtist Lite V3.0
1 x set of 55ml starter inks (110ml for MBK)
1 x Printhead
1 x Maintenance Cartridge
10/100/1000 Network Interface
USB 2.0 Interface
1 x Power Cord
24 Months Warranty
What's in the box?
Printer, 1 print head, Power Cable, 1 set of starter ink tanks, Set up guide, Quick Guide, Safety/Standard Environment leaflet, User Software CD-ROM (Win), EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet, NO Stand included.
Product Specifications
Up to 24inch Wide Printing
Up to Res 2400 x 1200 dpi
2GB Standard Memory
3" Colour LCD Touch Screen
5 Colour Pigment Inks
USB, Network & Wireless
2 Year on Site Warranty
Brochure for Canon imagePROGRAF TA-20 24" Large Format Inkjet Printer
