Product Description

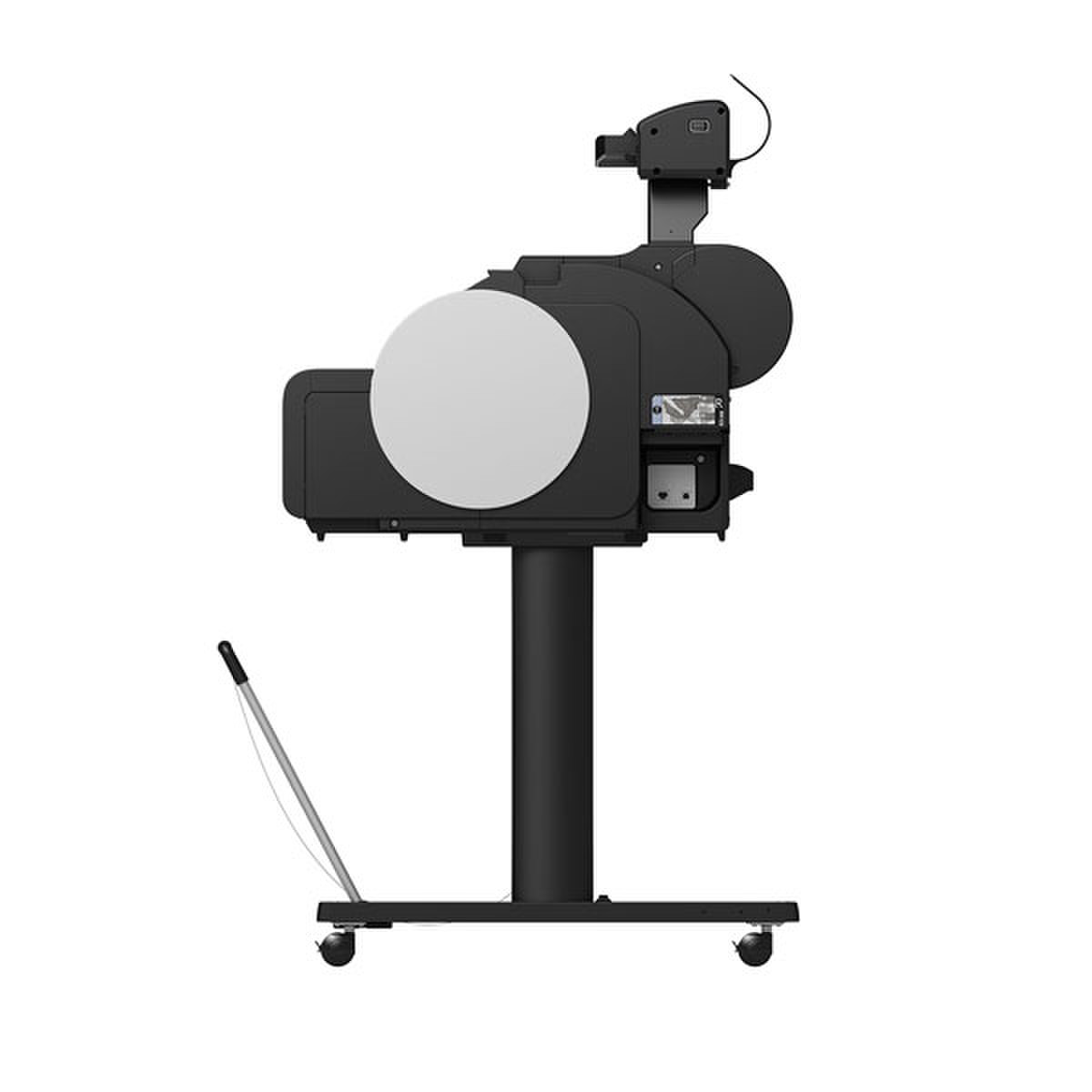

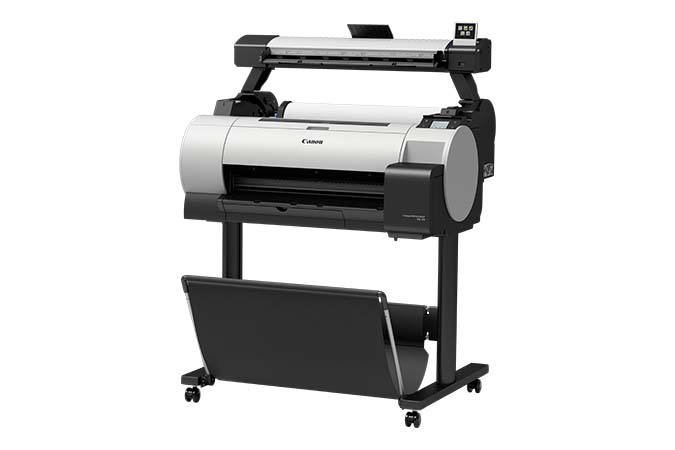

The Canon imagePROGRAF TA-20 MFP L24ei large format imaging system, is an affordable scan-to-copy/file system for low volume and entry-level users with a minimal learning curve when it comes to new equipment. This is the ideal system for those who do not require the advanced functionality of the MFP T36 imaging system. The new Lei Series complements the current MFP T36 product line by providing a product that offers basic scan-to-copy capabilities at an affordable price.
Specification:-
Printer Type
5-Color 24-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh OS X v10.10.5-v10.12x
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size
Minimum 5 picoliter
Ink Capacity
55 ml per color
Ink Droplet Size
Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
2 GB (Physical)
Media Width
Cut Sheet - 8”- 17”
Roll Feed - 8” - 24”
Media Thickness
0.07-0.8mm
Maximum Media Roll Diameter
5.9” (150mm)
Borderless Printing Width
8” - 24”
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, JPEG
Noise Level Approx
Operation: 42 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 5.8 Bels
Physical Dimensions
42“ x 39“ x 34“ (H x W x D)
Weight
approx.101 lbs (roll holder included, no inks, no print heads)
Power Source
AC 100-240V (50-60Hz)
Power Consumption
Maximum: 52W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items

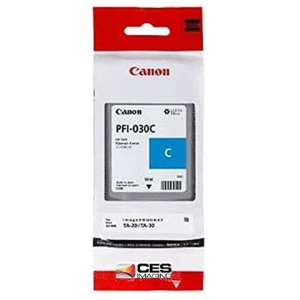

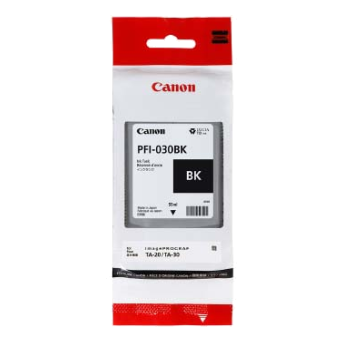

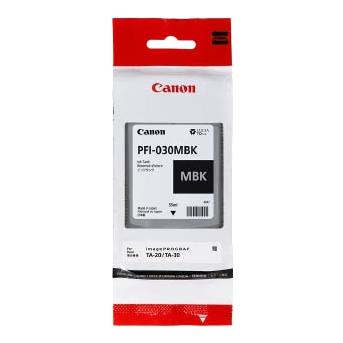

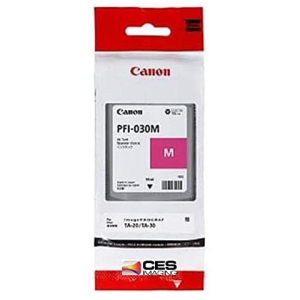

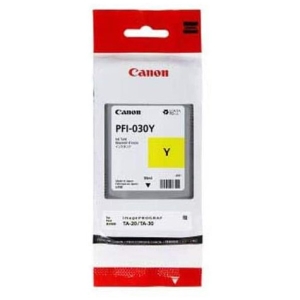

Print Head (PF-06)Maintenance Cartridge (MC-31)Ink Tanks (PFI-030)Cutter Blade (CT-08)
Software Included
TA Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor
Scanner Specifications
Optional Accessories
Scanner Type: Contact Image Sensor (CIS) technology
Scan Accuracy +/- 0.20%
Speed 3 ips monochrome, 1 ips color (Copy, Standard Mode)
Optical Resolutions 600 dpi
Max Resolutions 600 dpi
Max. Document Size Width: 26 inch document width (24 inch image width)
Length 109 inch
Thickness 0.5mm
Standard Interface (Scan to USB) USB 2.0
Standard Interface (Scan to Network) Gigabit ethernet
What's in the box?

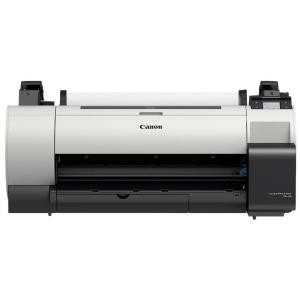

imagePROGRAF TA-20

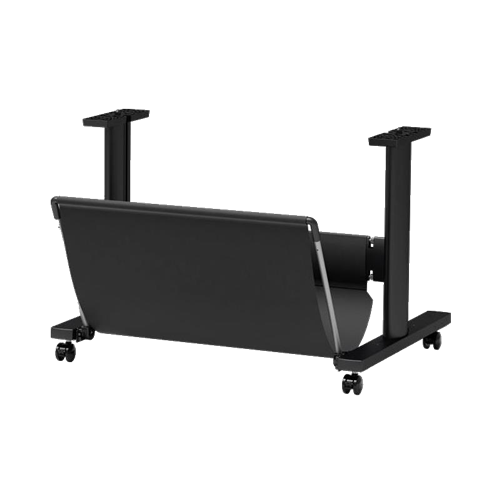

Stand
Catch Basket
Tools and Screws
2" Core Media Spool
US AC Power Cable
Print Head PF-06
Maintenance Cartridge (Installed)
6 Ink Tanks (55 ml each: MBK x2, C/M/Y/BK)
Ethernet Card (built-in)
USB 2.0 High-speed Interface
USB Connection Sheet
iWR Service Terms Leaflet
User Manual
Quick Setup Guide
User Software CD for Windows (Printer Driver Utilities)
User Registration Card
Media Guide
L24ei Scanner Box
Hardware
Power Supply
Power Cord
Ethernet Cable
(2) Mounting Brackets
Calibration Target
Document Return Guides
(2) Table-top Feet
CD for Lei Scan App Software
Lei Scanner Guide
Product Specifications
Up to 24-inch Print 5-Color
Up to Res 2400 x 1200 dpi
2GB Buffer RAM
5 Colour Pigment Inks
Borderless Printing
USB, Network & Wireless
One Year on Site Warranty
