Product Description

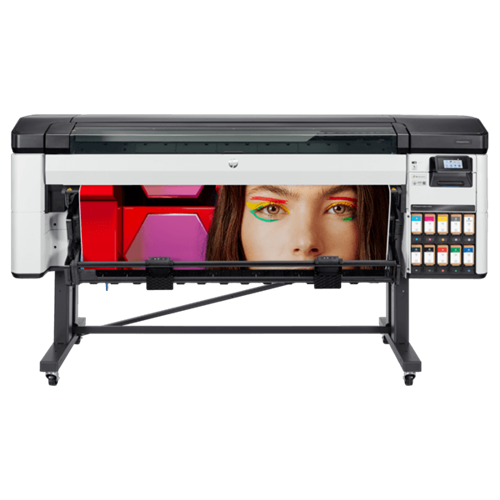

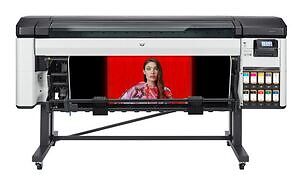

The HP DesignJet Z9+ Pro can print up to 18% faster, with better quality, on satin photo media compared to its predesescor and 46% faster on canvas. perfect choice for PSPs looking for a professional photo quality printer.
Users can customise ICC profiles for their print jobs and achieve desired colour accuracy and consistency. PSPs also have the option to include the HP Gloss Enhancer Upgrade Kit to produce superior gloss uniformity.
specifications
Print
Print speed Fast: 98 m²/hr on plain media
Normal: 29 m²/hr on coated media
Best: 14.1 m²/hr on glossy media
Print resolution Up to 2400 x 1200 optimized dpi
Technology HP Thermal Inkjet
Margins Roll: 5 x 5 x 5 x 5 mm
Ink types Pigment-based
Ink drop 7/3 pl dual-drop weight (M, C, PK, CB, G); 6 pl single-drop weight (Y, CR, MK, CG)
Printheads 5 universal printheads (valid for all colors)
Printhead nozzles 3136 per color; 28,224 in total
Line accuracy ±0.1%
Minimum line width 0.02 mm
Color accuracy Median < 1.6 dE2000, 95% of colors < 2.8 dE2000
Short-term color stability < 1 dE2000 in less than 5 minutes
Long-term print-to-print
repeatability
Average < 0.5 dE2000, 95% of colors < 1.4 dE2000
Max optical density 4 L* min/2.5 D
Media

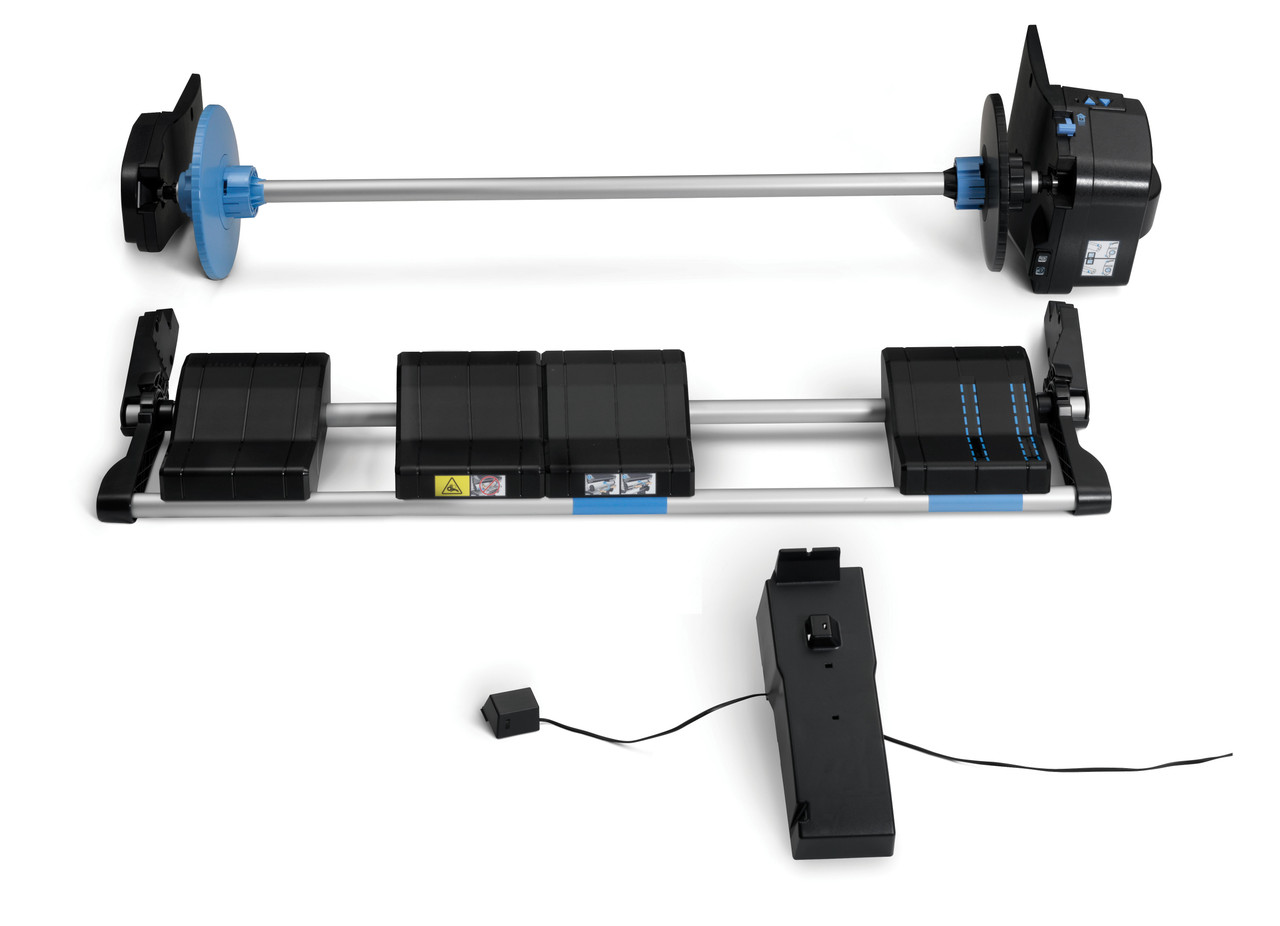

Handling One automatic roll feed, spindle-less system, optional multifunction roll accessory enabling either automatic second roll
feed with smart roll-switching or take-up reel capability, optional standalone take-up reel accessory, media output bin,
automatic horizontal cutter (cuts all HP Z-series printer-qualified media, including most canvas)
Roll size 420 to 1626-mm
Grammage 80 to 500 g/m²
Thickness Up to 0.6 mm
Applications Banners; Canvas; Digital fine art; Exhibition and event graphics; Graphics design; Indoor posters; Light boxes - paper;
Photos; Point of sale/display; POP/POS
Memory 86 GB file processing (based on 4 GB RAM)
Hard disk 500 GB self-encrypting
Connectivity
Interfaces Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab)
Native print languages TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
Print languages (optional) Adobe PostScript 3, Adobe PDF 1.7
Printing paths Print drivers, HP Click, printing support for Chrome OS, HP Print Service Plugin for Android, HP Smart app for iOS and
Android, HP SmartStream
Drivers Raster drivers for Windows, raster drivers for macOS
PDF driver for Windows and PostScript driver for macOS with optional PostScript/PDF Upgrade Kit
Security features HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates
management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible,
Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypted HDD, encrypted PIN printing, unique admin
password, HP Connection Inspector
Dimensions (w x d x h)
Printer 2605 x 790 x 1402 mm
Shipping 2800 x 750 x 1302 mm
Weight
Printer 170 kg
Shipping 264 kg
What's in the box HP DesignJet Z9+ Pro Printer, printheads, introductory ink cartridges, maintenance cartridge, printer stand and media bin,
3-in core adapter, quick reference guide, setup poster, power cord, user maintenance kit
HP Software and solutions HP Click printing software, HP PrintOS, HP Partner Link, HP DesignJet Accounting Tool, HP Web Jetadmin, HP SmartTracker
(optional), HP SmartStream (optional), HP JetAdvantage Security Manager (optional)
Environmental ranges
Operating temperature 5 to 40°C
Operating humidity 20 to 80% RH
Storage temperature -20 to 55°C
Acoustics
Sound pressure 52 dB(A) (operating), 25 dB(A) (idle), <20 dB(A) (sleep)
Sound power ≤6.9 B(A) (operating), ≤4.3 B(A) (idle), <4.0 B(A) (sleep)
Power
Consumption 150 W (printing); <35 W (ready); <9 W (sleep); <0.3 W (off)
Requirements Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 3 A max
