Product Description
LEGENDARY RUGGED DURABILITY, PRINT QUALITY, AND LONGEVITY
Zebra's built-to-last Xi™ series printers are renowned for their incredible durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications. These qualities translate into a low total cost of ownership - making them a smart investment for organizations with high-volume, mission-critical, or specialty labeling applications.
Built to Perform. Day In and Day Out. Year After Year.
Zebra's Xi4™ printers are loaded with features and options that make them easy to set up, integrate and operate.
Easy to Integrate
Xi4 printers build on this legacy to boost your operational productivity and give you enhanced early warning systems for reduced downtime. Other performance features include a large, easy-to-read front panel for a simple setup with an optional customizable menu and support for a wider assortment of languages.
Integration is easier with a variety of network connectivity options, while ZebraLink™ Solutions provide remote printer management capabilities.
Strong Return on Your Investment
Zebra's Xi4 printers give you reliable performance over the long run to minimize maintenance needs and the total cost of ownership. With one printer model and Zebra's wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The wireless connectivity option frees you from paying for re-cabling with every physical reconfiguration of your operations.
Flexible for Specialty Labeling Applications
For small label applications such as labeling small containers, electronics and jewelry-you need a printer that delivers extremely high resolution with crisp text, clear barcodes, and precise registration, time after time.
Zebra 110Xi4 offers 600 dpi print resolution and consistent registration. With support for labels as small as 1/8" (3 mm), the RFID-ready 110Xi4 provides you with the flexibility, quality, and precision you need to get the job done. The printer:
Handles everything from paper to specialty label and tag stocks.
Easily changes over from one label media to the next.
Delivers consistently outstanding print quality on the widest range of media thicknesses.
Offers optional UHF RFID encoding of the very smallest labels.
Features
Print methods: Thermal transfer or direct thermal
Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
Clear media side door allows easy monitoring of supplies usage without opening the printer systems
32 bit 133 Mhz RISC processor
64 MB on-board linear Flash memory
16 MB SDRAM Flash memory
Internal real-time clock
Advanced label/media counters
Dual media sensors - transmissive and reflective, selectable through software or front panel
Auto calibration when the printer is turned on or when the printhead is closed using approximately two labels
Technical Specs
Memory
Standard Memory 16 MB
Network & Communication
Ethernet Yes
Power Description
Power Source AC Supply
Warranty
Limited Warranty 12 Month
Miscellaneous
Platform Supported PC
Energy Star Yes
Interfaces/Ports
USB Yes
Serial Port Yes
Parallel Port Yes
Physical Characteristics
Weight (Approximate) 30.50 kg
Height 393.7 mm
Width 338.1 mm
Depth 517.5 mm
Technical Information
Application/Usage Desktop
Maximum Print Width 168 mm (6.61")
Recommended Use Label Print
Maximum Mono Print Speed 203.20 mm/s
Print Color Capability Monochrome
Maximum Print Resolution (dpi) 300
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number 170-80P-00003
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation

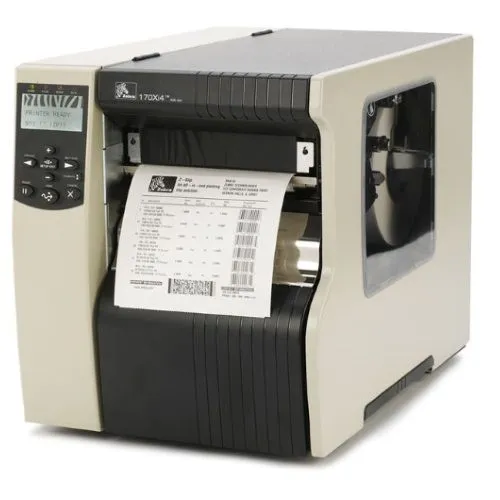

Product Model 170Xi4
Product Name 170Xi4 Thermal Transfer Printer
Product Series Xi4
Brand Name Zebra
Media Types & Handling
Maximum Roll Diameter 203 mm
Media Type Reflective
Notch
Label
Continuous Label
Black Mark
Die-cut Label
Maximum Label Width 180 mm
Product Specifications
Max. Print Speed 203.20mm/s
Max. Print Resolution 300 dpi
Max. Roll Diameter 203 mm
32 bit 133Mhz RISC Processor
16MB SDRAM Memory
USB, Network & Parallel
One-Year Limited Warranty
