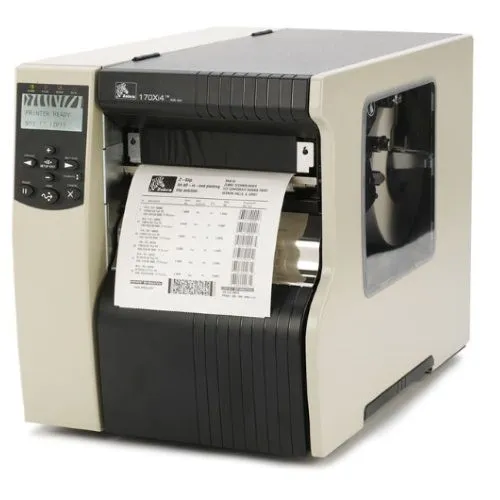

Zebra 170XI4 (170-8KP-00100) 300DPI 6IN Thermal Transfer Printer

Zebra's built-to-last Xi™ series printers are renowned for their incredible durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications. These qualities translate into a low total cost of ownership - making them a smart investment for organizations with high-volume, mission-critical, or specialty labeling applications.

Zebra's Xi4™ printers are loaded with features and options that make them easy to set up, integrate and operate.

Xi4 printers build on this legacy to boost your operational productivity and give you enhanced early warning systems for reduced downtime. Other performance features include a large, easy-to-read front panel for simple setup with optional customizable menu and support for a wider assortment of languages.

Integration is easier with a variety of network connectivity options, while ZebraLink™ Solutions provide remote printer management capabilities.

Zebra's Xi4 printers give you reliable performance over the long run to minimize maintenance needs and the total cost of ownership. With one printer model and Zebra's wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The wireless connectivity option frees you from paying for re-cabling with every physical reconfiguration of your operations.

For small label applications such as labeling small containers, electronics and jewelry-you need a printer that delivers extremely high resolution with crisp text, clear barcodes, and precise registration, time after time.

Zebra 110Xi4 offers 600 dpi print resolution and consistent registration. With support for labels as small as 1/8" (3 mm), the RFID-ready 110Xi4 provides you with the flexibility, quality, and precision you need to get the job done. The printer:

Handles everything from paper to specialty label and tag stocks.

Easily changes over from one label media to the next.

Delivers consistently outstanding print quality on the widest range of media thicknesses.

Offers optional UHF RFID encoding of the very smallest labels.

Print methods: Thermal transfer or direct thermal

Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection

Clear media side door allows easy monitoring of supplies usage without opening the printer systems

32 bit 133 Mhz RISC processor

64 MB on-board linear Flash memory

16 MB SDRAM Flash memory

Internal real-time clock

Advanced label/media counters

Dual media sensors - transmissive and reflective, selectable through software or front panel

Auto calibration when the printer is turned on or when the printhead is closed using approximately two labels

Standard Memory 16 MB

Ethernet Yes

Power Source AC Supply

Limited Warranty 12 Month

Platform Supported PC

Energy Star Yes

USB Yes

Serial Port Yes

Parallel Port Yes

Weight (Approximate) 30.50 kg

Height 393.7 mm

Width 338.1 mm

Depth 517.5 mm

Application/Usage Desktop

Maximum Print Width 168 mm (6.61")

Recommended Use Label Print

Maximum Mono Print Speed 203.20 mm/s

Print Color Capability Monochrome

Maximum Print Resolution (dpi) 300

Product Type Thermal Transfer Printer

Manufacturer Part Number 170-8KP-00100

Manufacturer Website Address http://www.zebra.com/ap/en.html

Manufacturer Zebra Technologies Corporation

Product Model 170Xi4

Product Name 170Xi4 Thermal Transfer Printer

Product Series Xi4

Brand Name Zebra

Maximum Roll Diameter 203 mm

Media Type Die-cut Label

Notch

Reflective

Continuous Label

Black Mark

Label

Maximum Label Width 180 mm
