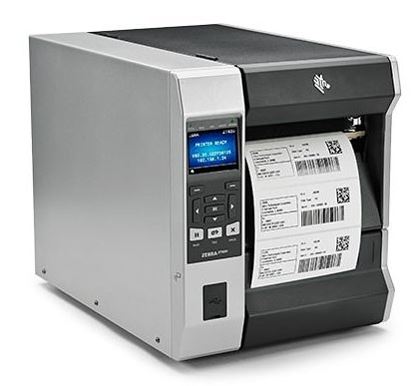

ZEBRA ZT620 6-INCH 300DPI T/T MULTI-IF TOUCH
THE NEXT GENERATION XI SERIES, NOW WITH MORE INTELLIGENCE AND INDUSTRIAL BRAWN
Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you're concerned about growing production line demands, increasing operational complexities, integrating disparate systems, or controlling investment costs, ZT600 Series Industrial Printers have you covered today and for years to come.
A Leap Forward in IndustrialThermal Printing
Zebra's industrial printers are well known for their durability, fast print speed, long life span, and unparalleled reliability. The ZT610 and ZT620 build on that legacy, with the most advanced, comprehensive feature sets of any Zebra stationary printer series. To start, easily navigate printer settings and see the status at a glance via the brightly lit, 4.3-inch full-color touch display. To keep your critical operations running smoothly across a broad range of applications, ZT600 Series printers provide:
24/7 Reliability in the Harshest Environments
ZT600 Series printers are built to withstand the most demanding industrial conditions, virtually eliminating operational downtime due to printer failure. Plus, they meet your high-volume production needs, day
in and day out, with superior print quality and speed across the widest range of applications.
Micro-Consistent Printing for Top-Quality Micro Labels
Featuring highly precise registration and print line adjustment, the
ZT610 offers 600 dpi printing for labels as small as 3 mm high (length)
for applications like circuit boards, chips, and miniature components-all without wasting expensive media due to improper printing.
User-Friendly Setup, Use, Maintenance & Troubleshooting
Intuitive Print DNA software, powered by Link-OS®, delivers unparalleled intelligence and innovation for advanced connectivity, device management and privacy controls. User-friendly design features, including an optional color touch display, streamline everything from deployment to daily use to routine maintenance. Compatibility with
other printing systems and technologies simplify integration and
management, while onboarding sensors, diagnostics, and help resources guide troubleshooting so users don't have to call in support for every minor issue.
Highly Adaptable, Future-Ready Platforms
The last thing you need is a new piece of technology that will be obsolete in just a couple of years. That's why the ZT600 Series was engineered with the future in mind-from an adaptable design that allows communications, media handling, and other upgrades in the field,
to compatibility with SOTI and AirWatch device management software, to
intuitive Link-OS applications that simplify updates and reconfiguration
as needed
Technical Specs
Memory
Standard Memory 1000 MB
Power Description
Power Source AC Supply
Software
Software Included
Link-OS
Technical Information
Application/Usage Desktop
Industrial
Barcode Symbology Supported RSS-14
EAN-13
Codablock
Standard 2 of 5
Micro PDF
Codabar
Industrial 2 of 5
Composite Symbology
UPC-A
2D
Plessey
Code 93
QR Code
TLC 39
Data Matrix
Maxi Code
Code 128 (A/B/C)
Planet Code
UCC Case Codes
Code 39
UPC-E
MSI
UPC-A with EAN 2 or 5-Digit Extension
Interleaved 2 of 5
POSTNET
EAN-8
Code 11
ISBT-128
PDF417
AZTEC
Code 49
Maximum Print Width 168 mm (6.61")
Recommended Use Label Print
Maximum Mono Print Speed 203.20 mm/s
Print Color Capability Monochrome
Maximum Print Length 2032 mm
Maximum Print Resolution (dpi) 300
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Environmental Conditions
Storage Relative Humidity 20% - 85%
Storage Temperature -30°C - 60°C
Operating Relative Humidity 20% - 85%
Fonts & Emulation
Language Emulation ZPL
ZPL II
XML
Interfaces/Ports
USB Yes
Serial Port Yes
USB Host Yes
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Gigabit Ethernet
Miscellaneous
Platform Supported iOS
PC
System Requirements
IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro
Energy Star Yes
Physical Characteristics
Weight (Approximate) 26 kg
Height 395.7 mm
Width 341.5 mm
Depth 505 mm
General Information
Product Type Direct Thermal/Thermal Transfer Printer
Manufacturer Part Number ZT62063-T0P0200Z
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZT620
Product Name ZT620 High-Performance Industrial 6-inch Wide Standard
Product Series ZT600
Brand Name Zebra
Media Types & Handling
Media Thickness 250 µm
Maximum Roll Diameter 203 mm
Media Type Continuous Label
Notch
Reflective
Die-cut Label
Label
Black Mark
Media Sensor Transmissive Media Sensor
Reflective Media Sensor
Maximum Label Width 180 mm
