Product Description

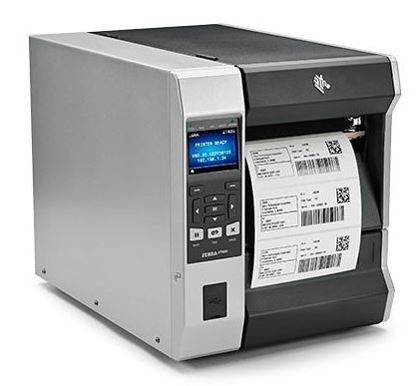

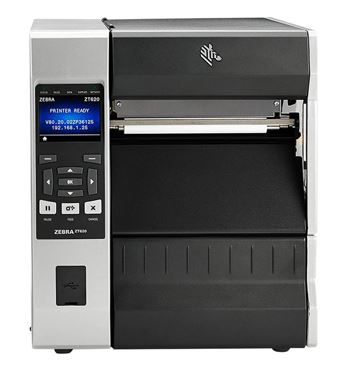

ZEBRA ZT620 6-INCH 300DPI T/T MULTI-REWIND TOUCH
High-Performance Label Printing
The next advancement in high-performance industrial label printing has arrived. Whether you're trying to keep up with high-volume demands or looking for ways to advance your business technology portfolio, the ZT620 prints 6-inches wide (168 mm) and 12 inches (305 mm) per second - to have you covered.
Features
Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window

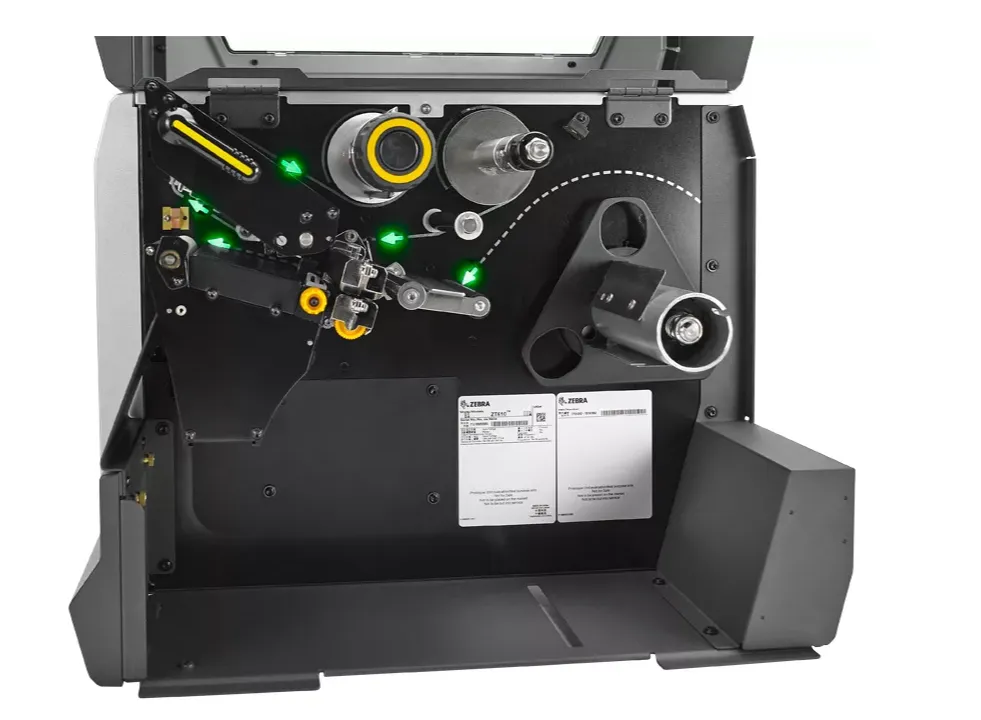

Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E 3 TM Element EnergyTM Equalizer for superior print quality
Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
A highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
A simplified icon menu navigation system categorizes settings into logical groups of functions
Technical Specs
Memory
Standard Memory 1 GB
Power Description
Power Source AC Supply
Interfaces/Ports
USB Yes
Serial Port Yes
Network & Communication
Bluetooth Yes
Ethernet Yes
Miscellaneous
Platform Supported PC
Certifications & Standards
cTUVus
Environmentally Friendly Yes
Energy Star Yes
General Information
Product Type Direct Thermal/Thermal Transfer Printer
Manufacturer Part Number ZT62063-T2P0100Z
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZT620
Product Name ZT620 Industrial Printer
Product Series ZT600
Brand Name Zebra
Physical Characteristics
Weight (Approximate) 26.04 kg
Height 395.7 mm
Width 341.4 mm
Depth 505 mm
Media Types & Handling
Maximum Roll Diameter 203 mm
Media Type Continuous Label
Notch
Die-cut Label
Black Mark
Maximum Label Width 178 mm
Technical Information
Application/Usage Industrial
Maximum Print Width 168 mm (6.61")
Recommended Use Label Print
Maximum Mono Print Speed 305 mm/s
Print Color Capability Monochrome
Maximum Print Length 3.81 m
Maximum Print Resolution (dpi) 300
What's in the box?
Zebra ZT620 (ZT62063-T2P0100Z) 6IN 300DPI Thermal Transfer Printer
User Guide
Product Specifications
Max. Print Speed 305 mm/s
Max. Print Res 300 dpi
Max. Roll Diameter 203mm
1 GB Standard Memory
Windows & Mac Compatible
USB, Network & Bluetooth
One-Year Limited Warranty
Brochure for Zebra ZT620 (ZT62063-T2P0100Z) 6IN 300DPI Thermal Transfer Printer
