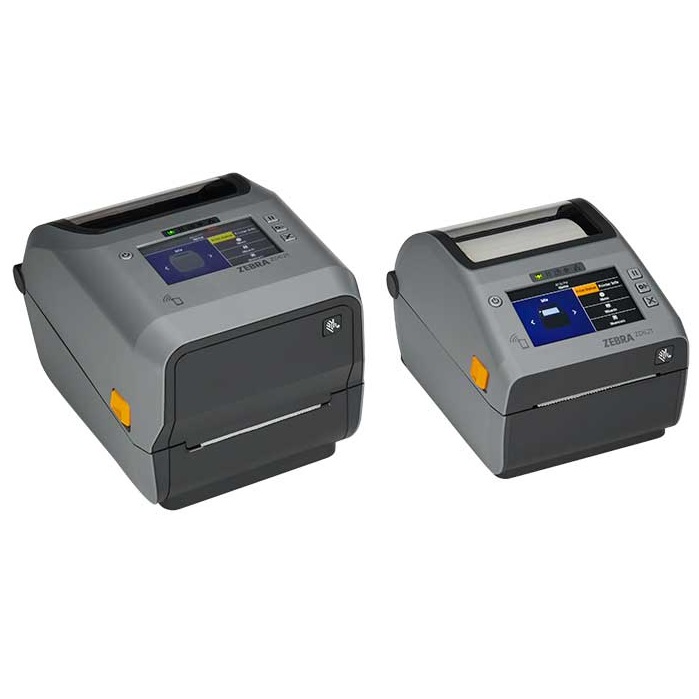

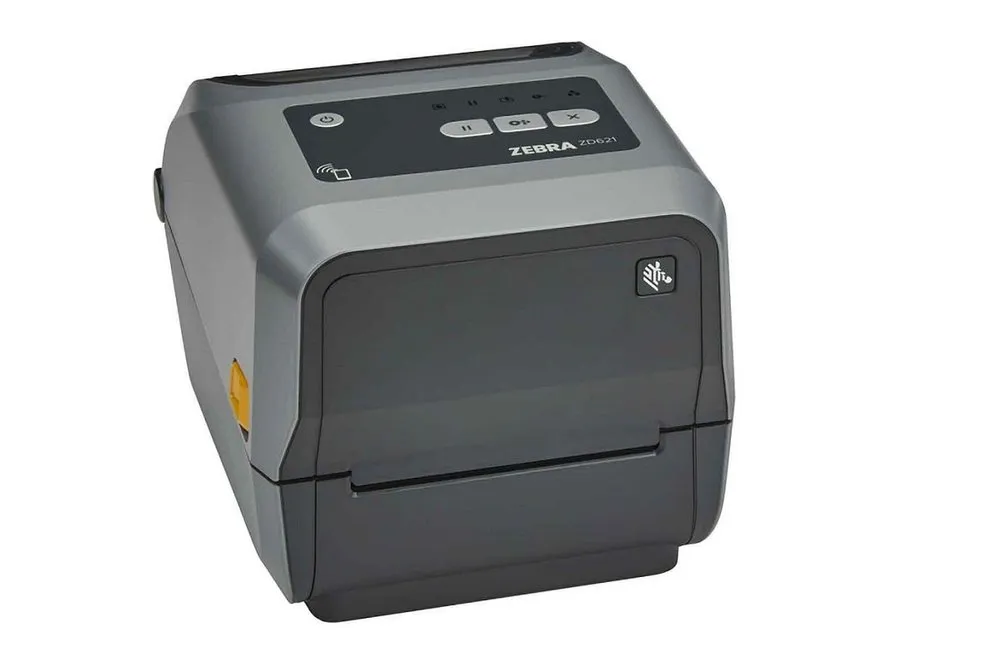

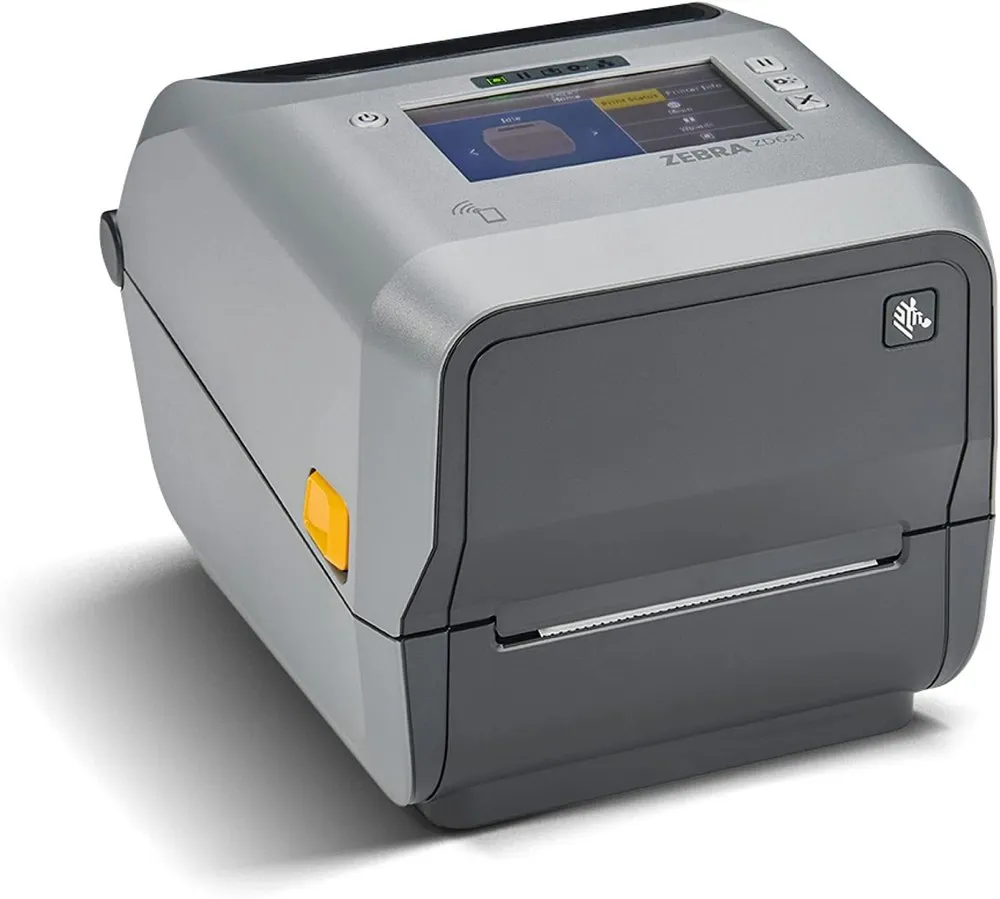

ZEBRA ZD621 (ZD6A143-D0PF00EZ) 300dpi Thermal Transfer Printer

You need a premium, quality printer that's built to perform flawlessly - day in and day out. Rely on Zebra's ZD621 desktop printers, advancing the proven and popular GX Series printers. Don't compromise. Get it all: an innovative new architecture to power our ever-expanding printer capabilities and software. Unmatched security that's constantly evolving to safeguard your sensitive data and shield you from cyberattacks. Enhanced features, communication and media-handling options that you can add whenever you're ready. An optional full-color LCD touch display with an intuitive menu. And, increased remote-management capabilities. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security. Everything you need in a printer to keep your workflows fluid and business moving forward.

Extending the G-Series Legacy

Zebra's GX Series printers are known for quality and premium performance. As you select your next printer, you can be confident that the next-generation ZD621 includes everything you loved in those legacy printers, and builds on this heritage to deliver best-in-class features for this new era of intelligence and forward adaptability.

Rely on the ZD621 to help you power through - day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD621 stands apart. Available in direct thermal, thermal transfer, healthcare and RFID models, the ZD621 supports a wide variety of use cases.

Backed by Zebra's innovative Print DNA software suite, the ZD621 is incredibly simple to operate. Deploy it anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface is easy to use with minimal training and allows you to see status at a glance with the five LED icons. Take advantage of robust remote management capabilities that alleviate IT burdens. And, built-in security hardens your infrastructure from cyberattacks.

Technology is constantly advancing. So can your ZD621. Featuring an innovative architecture, it's engineered to power future printing. In comparison, it's 30% more powerful than the ZD620 Series and nearly 300% more than the GX Series. This gives you the ability to run more tasks, perform more operations simultaneously, maintain security and be ready for what's next.

Print methods: Thermal Transfer or Direct Thermal

ZPL and EPL programming languages

5 status icons, 3 button user interface

Ethernet, Serial, USB 2.0, USB Host

Printer setup mobile app for Android & iOS via BLE (Bluetooth Low Energy 5) connection

Real-Time Clock (RTC)

Media dancer for excellent print quality

OpenACCESS™ for easy media loading

Dual-wall frame construction

ENERGY STAR® certified

Standard Memory 256 MB

Limited Warranty 2 Year

Display Screen Yes

Screen Size 10.9 cm (4.3")

Display Screen Type LCD

USB Yes

Serial Port Yes

USB Host Yes

Bluetooth Yes

Ethernet Yes

Ethernet Technology Ethernet

Input Voltage 230 V AC

120 V AC

Power Source AC Supply

Storage Relative Humidity 5% - 95%

Storage Temperature -40°C - 60°C

Operating Temperature 4.4°C - 40.6°C

Operating Relative Humidity 10% - 90%

Application/Usage Desktop

Barcode Symbology Supported EAN-13

Code 39

POSTNET

Micro PDF

Code 93

EAN With 2 or 5 Digit Extension

Maxi Code

UPC-A

UPC 2 or 5 Digit Extension

QR Code

Plessey

Code 49

Interleaved 2 of 5

AZTEC

Industrial 2 of 5

Standard 2 of 5

UPC-E

ISBT-128

Codablock

LOGMARS

Code 11

MSI

Code 128

Codabar

PDF417

Planet Code

Data Matrix

EAN-8

Maximum Print Width 108 mm (4.25")

Recommended Use Label/Receipt Print

Connectivity Technology Wired

Features Dual Wall Frame

Status Indicator

Maximum Mono Print Speed 152 mm/s

Mobile Device Printing Yes

Print Color Capability Monochrome

Optional Connectivity Wireless LAN

Real-Time Clock Yes

Maximum Print Resolution (dpi) 300

Weight (Approximate) 1.63 kg

Height 149.9 mm

Width 177.8 mm

Depth 221 mm

Fonts & Emulation

Language Emulation XML

ZBI

EPL

EPL2

EZPL

ZPL II

ZPL

Product Type Direct Thermal Printer

Manufacturer Part Number ZD6A143-D0PF00EZ

Manufacturer Website Address http://www.zebra.com/ap/en.html

Manufacturer Zebra Technologies Corporation

Product Model ZD621

Product Name ZD621 Direct Thermal Printer

Brand Name Zebra

Package Contents

ZD621 Direct Thermal Printer

AC Power Supply

Power Cord

USB Cable

Quick Start Guide

Regulatory Guide

Platform Supported Android

PC

iOS

Environmentally Friendly Yes

Environmental Certification RoHS

Cables Included AC

USB

Energy Star Yes

Power Cable Localization AUS

UK

JP

EU

Power Adapter Included Yes

Media Thickness 4826 µm

Maximum Roll Diameter 127 mm

Media Type Receipt

Reflective

Continuous Roll

Tag Stock

Roll Fed

Black Mark

Gap

Tag

Fanfold

Continuous Receipt

Die-cut Label

Label

Wristband

Media Sensor Moveable Reflective/Black Mark Sensor

Multi-position Transmissive/Gap Sensor

Full-Width Sensor

Maximum Label Width 108 mm

Maximum Label Length 991 mm

ZD621 Direct Thermal Printer

AC Power Supply

Power Cord

USB Cable

Quick Start Guide

Regulatory Guide
