Product Description

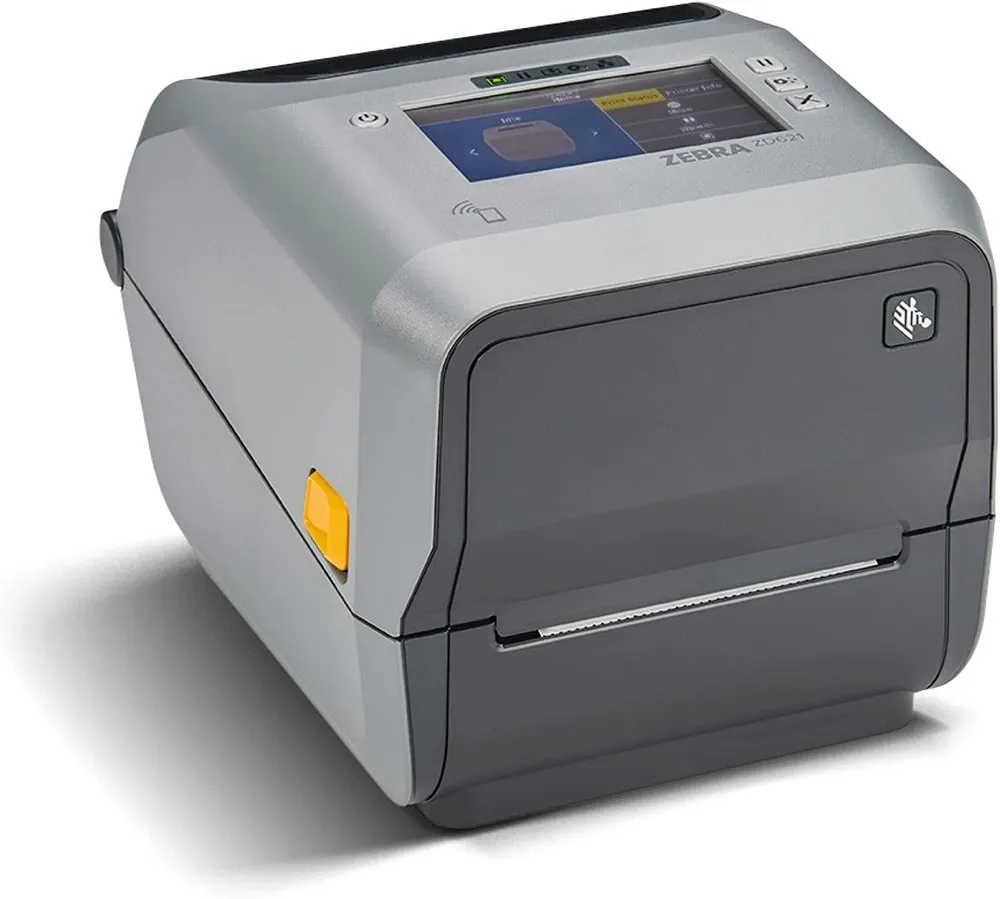

ZEBRA D/TOP ZD621 300DPI T/T MULTI
INVEST IN THE BEST: PREMIUM FEATURES, MAXIMUM PERFORMANCE, AND UNMATCHED SECURITY FOR YEARS OF QUALITY PRINTING
You need a premium, quality printer that's built to perform flawlessly - day in and day out. Rely on Zebra's ZD621 desktop printers, advancing the proven and popular GX Series printers. Don't compromise. Get it all: an innovative new architecture to power our ever-expanding printer capabilities and software. Unmatched security that's constantly evolving to safeguard your sensitive data and shield you from cyberattacks. Enhanced features, communication and media-handling options that you can add whenever you're ready. An optional full-color LCD touch display with an intuitive menu. And, increased remote-management capabilities. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security. Everything you need in a printer to keep your workflows fluid and business moving forward.
ELEVATING A PROVEN WINNER
Extending the G-Series Legacy
Zebra's GX Series printers are known for quality and premium performance. As you select your next printer, you can be confident that the next-generation ZD621 includes everything you loved in those legacy printers, and builds on this heritage to deliver best-in-class features for this new era of intelligence and forward adaptability.
EXPECT THE BEST
Premier Printing Performance
Rely on the ZD621 to help you power through - day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD621 stands apart. Available in direct thermal, thermal transfer, healthcare and RFID models, the ZD621 supports a wide variety of use cases.
OPERATE WITH EASE
Simple to Deploy, Use, Manage and Secure
Backed by Zebra's innovative Print DNA software suite, the ZD621 is incredibly simple to operate. Deploy it anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface is easy to use with minimal training and allows you to see status at a glance with the five LED icons. Take advantage of robust remote management capabilities that alleviate IT burdens. And, built-in security hardens your infrastructure from cyberattacks.
PUT IT TO WORK FOR YEARS
Designed to Perform Today and Tomorrow
Technology is constantly advancing. So can your ZD621. Featuring an innovative architecture, it's engineered to power future printing. In comparison, it's 30% more powerful than the ZD620 Series and nearly 300% more than the GX Series. This gives you the ability to run more tasks, perform more operations simultaneously, maintain security and be ready for what's next.
Features
Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
5 status icons, 3 button user interface
Ethernet, Serial, USB 2.0, USB Host
Printer setup mobile app for Android & iOS via BLE (Bluetooth Low Energy 5) connection
Real-Time Clock (RTC)
Media dancer for excellent print quality
OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR® certified
Technical Specs
Memory
Standard Memory 256 MB
Warranty
Limited Warranty 2 Year
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Interfaces/Ports
USB Yes
Serial Port Yes
USB Host Yes
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Power Source AC Supply
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Technical Information
Application/Usage Desktop
Barcode Symbology Supported Code 39
EAN-13
Plessey
Maxi Code
Data Matrix
MSI
Micro PDF
Industrial 2 of 5
EAN-8
Interleaved 2 of 5
PDF417
UPC 2 or 5 Digit Extension
POSTNET
UPC-A
EAN With 2 or 5 Digit Extension
Code 93
AZTEC
LOGMARS
Code 128
Code 49
UPC-E
Codabar
Standard 2 of 5
Code 11
QR Code
ISBT-128
Planet Code
Codablock
Maximum Print Width 108 mm (4.25")
Recommended Use Label/Receipt Print
Connectivity Technology Wired
Features Dual Wall Frame
Status Indicator
Maximum Mono Print Speed 152 mm/s
Mobile Device Printing Yes
Print Color Capability Monochrome
Optional Connectivity Wireless LAN
Real-Time Clock Yes
Maximum Print Resolution (dpi) 300
Physical Characteristics
Weight (Approximate) 2.49 kg
Height 190.5 mm
Width 203.2 mm
Depth 266.7 mm
Fonts & Emulation
Language Emulation ZBI
EPL
EZPL
ZPL
EPL2
ZPL II
XML
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD6A043-30PF00EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD621
Product Name ZD621 Thermal Transfer Printer
Brand Name Zebra
Miscellaneous
Package Contents
ZD621 Thermal Transfer Printer
Empty Ribbon Take-Up Cores (1 in. and 0.5 in.)
300 m Ribbon Core Adapters
AC Power Supply
Power Cord
USB Cable
Quick Start Guide
Regulatory Guide
Platform Supported PC
Android
iOS
Environmentally Friendly Yes
Environmental Certification RoHS
Cables Included AC
USB
Energy Star Yes
Power Cable Localization JP
EU
AUS
UK
Power Adapter Included Yes
Media Types & Handling
Media Thickness 4826 µm
Maximum Roll Diameter 127 mm
Media Type Die-cut Label
Tag
Receipt
Tag Stock
Black Mark
Wristband
Reflective
Roll Fed
Continuous Receipt
Label
Gap
Continuous Roll
Fanfold
Media Sensor Moveable Reflective/Black Mark Sensor
Full-Width Sensor
Multi-position Transmissive/Gap Sensor
Maximum Label Width 118 mm
Maximum Label Length 991 mm
