Product Description

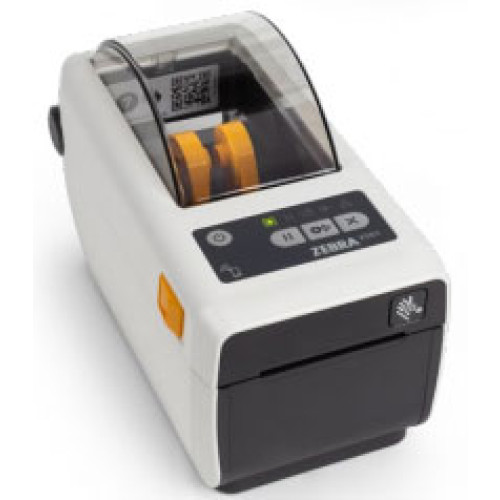

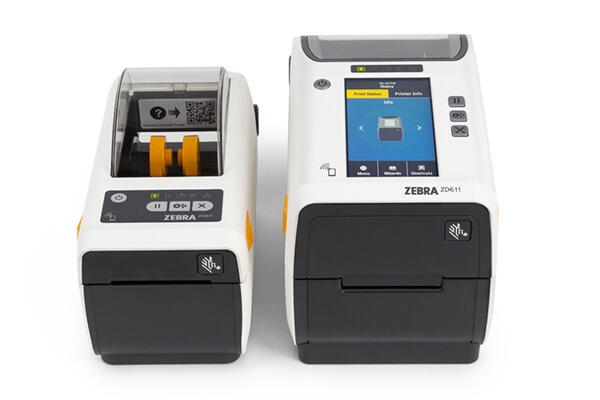

Invest in the best with Zebra's premium 2-inch compact desktop printers, made for healthcare
When it comes to healthcare, you need premium, superior printing capabilities that you can rely on for years of outstanding performance. Zebra's new 2-inch ZD611-HC desktop printers have all the features your workflows require, such as next-generation technology, disinfectant-ready and UV-resistant plastics and a medical-grade power supply for added safety. They're easy to setup, operate and maintain thanks to Zebra's Print DNA software suite and the printers' new architecture that provides more processing power and enhanced security. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. Building on the proven ZD600 Series, they're ready to perform flawlessly for years to come.
to emerging technology to field-installable options, the ZD611-HC stands apart. Available in direct thermal, thermal transfer and linerless models, the ZD611-HC supports a wide variety of use cases.
Purpose-built Healthcare Design
Easy to Sanitize and Safe to Power
Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD611-HC easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.
Operate with Ease
Simple to Setup, Easy to Maintain
Backed by Zebra's innovative Print DNA software suite, ZD611-HC printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface requires minimal training, while remote management capabilities and built-in security mean your infrastructure is protected from cyberattacks.
Change Media Easily
Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.
Features
Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
4.3" full color touch LCD (resolution: 480 wide x 272 high)with 3-button user interface (thermal transfer model)
5 status icons, 3 button user interface (direct thermal model)
Ethernet, USB 2.0, USB Host
Real-Time Clock (RTC)
Media dancer for excellent print quality (thermal transfer model)
OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR® certified
Technical Specs
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported
Link-OS
Warranty
Limited Warranty 2 Year
Interfaces/Ports
USB Yes
USB Host Yes
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Physical Characteristics
Weight (Approximate) 1.63 kg
Height 169.2 mm
Width 138.7 mm
Depth 242.9 mm
Technical Information
Application/Usage Desktop
Barcode Symbology Supported EAN-8
Micro PDF-417
UPC-A
EAN-13
UPC-E with EAN 2 or 5 Digit Extension
MSI-3
Code 39
Data Matrix
EAN-13 With 2 and 5 Digit Extension
POSTNET
Plessey
Codabar
PDF417
UPC-A with 2 and 5 Add-on
RSS-14
EAN-8 With 2 or 5 Digit Extension
Interleaved 2 of 5
Maxi Code
German Post Code
UCC/EAN 128
UPC-E
Code 93
Macro PDF-417
Code 128 (A/B/C)
Maximum Print Width 54 mm (2.13")
Recommended Use Label Print
Connectivity Technology Wired & Wireless
Features Dual Wall Frame
Compact
LCD Display
Maximum Mono Print Speed 152 mm/s
Print Color Capability Monochrome
Optional Connectivity Serial (RS-232)
Real Time Clock Yes
Maximum Print Resolution (dpi) 300
Fonts & Emulation
Language Emulation ZPL
EPL2
XML
EZPL
ZPL II
Network & Communication
Bluetooth Yes
Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Ethernet Technology Fast Ethernet
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD6AH23-T0PB02EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD611T-HC
Product Name ZD611T-HC Thermal Transfer Printer
Brand Name Zebra
Miscellaneous
Package Contents
ZD611T-HC Thermal Transfer Printer
Empty Ribbon Take-up core - Thermal Transfer Model (0.5 in.)
AC Power Supply
Power cord(s)
USB cable
Quick Start Guide
Regulatory Guide
Platform Supported Android
iOS
PC
Environmentally Friendly Yes
Environmental Certification REACH
RoHS
Cables Included USB
AC
Energy Star Yes
Power Cable Localization JP
EU
UK
AUS
Power Adapter Included Yes
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Tag Stock
Gap
Notch
Roll Fed
Wristband
Fanfold
Continuous Label
Label
Continuous Receipt
Die-cut Label
Media Sensor Multi-position Transmissive/Gap Sensor
Moveable Reflective/Black Mark Sensor
Maximum Label Width 57.15 mm
Maximum Label Length 39 mm
