Product Description

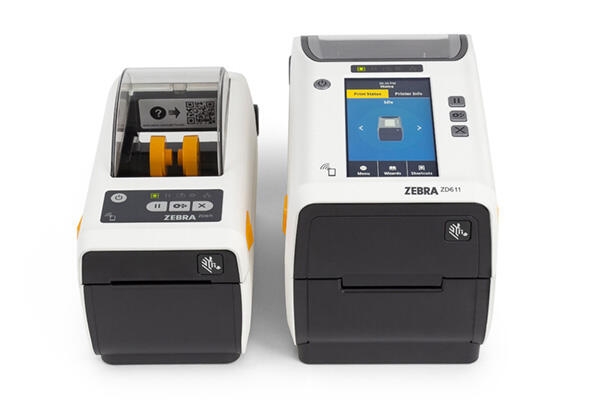

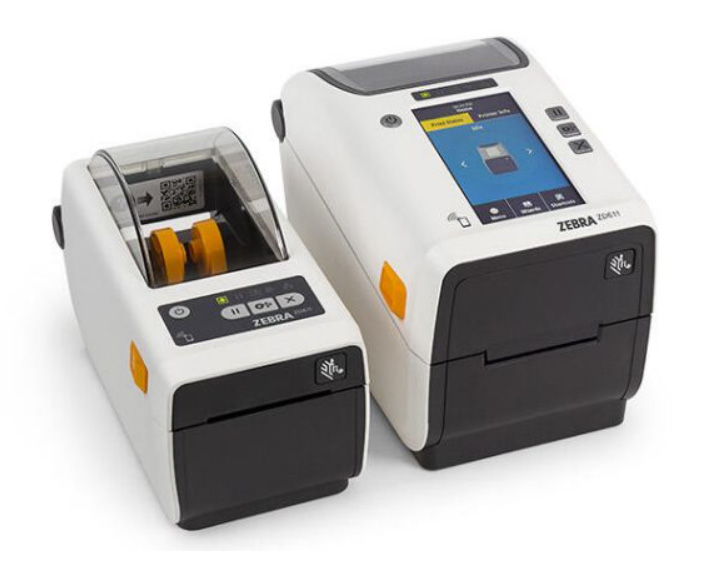

Invest in the best with Zebra's premium 2-inch compact desktop printers, made for healthcare
When it comes to healthcare, you need premium, superior printing capabilities that you can rely on for years of outstanding performance. Zebra's new 2-inch ZD611-HC desktop printers have all the features your workflows require, such as next-generation technology, disinfectant-ready and UV-resistant plastics and a medical-grade power supply for added safety. They're easy to setup, operate and maintain thanks to Zebra's Print DNA software suite and the printers' new architecture that provides more processing power and enhanced security. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. Building on the proven ZD600 Series, they're ready to perform flawlessly for years to come.
to emerging technology to field-installable options, the ZD611-HC stands apart. Available in direct thermal, thermal transfer and linerless models, the ZD611-HC supports a wide variety of use cases.
Purpose-built Healthcare Design
Easy to Sanitize and Safe to Power
Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD611-HC easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.
Operate with Ease
Simple to Setup, Easy to Maintain
Backed by Zebra's innovative Print DNA software suite, ZD611-HC printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface requires minimal training, while remote management capabilities and built-in security mean your infrastructure is protected from cyberattacks.
Change Media Easily
Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.
Features
Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
4.3" full color touch LCD (resolution: 480 wide x 272 high)with 3-button user interface (thermal transfer model)
5 status icons, 3 button user interface (direct thermal model)
Ethernet, USB 2.0, USB Host
Real-Time Clock (RTC)
Media dancer for excellent print quality (thermal transfer model)
OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR® certified
Technical Specs
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported
Link-OS
Warranty
Limited Warranty 2 Year
Interfaces/Ports
USB Yes
USB Host Yes
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Fast Ethernet
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Technical Information
Application/Usage Desktop
Barcode Symbology Supported UPC-E with EAN 2 or 5 Digit Extension
UPC-A with 2 and 5 Add-ons
Plessey
Interleaved 2 of 5
PDF417
Code 128 (A/B/C)
EAN-8
EAN-13
Data Matrix
Codabar
EAN-13 With 2 and 5 Digit Extension
Maxi Code
German Post Code
MSI-3
POSTNET
Code 39
RSS-14
UPC-E
Macro PDF-417
UCC/EAN 128
Micro PDF-417
EAN-8 With 2 or 5 Digit Extension
UPC-A
Code 93
Maximum Print Width 54 mm (2.13")
Recommended Use Label Print
Connectivity Technology Wired
Features LCD Display
Compact
Dual Wall Frame
Maximum Mono Print Speed 152 mm/s
Print Color Capability Monochrome
Optional Connectivity Serial (RS-232)
Wireless LAN
Real-Time Clock Yes
Maximum Print Resolution (dpi) 300
Physical Characteristics
Weight (Approximate) 1.63 kg
Height 169.2 mm
Width 138.7 mm
Depth 242.9 mm
Fonts & Emulation
Language Emulation ZPL II
EPL2
ZPL
XML
EZPL
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD6AH23-T0PE00EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation

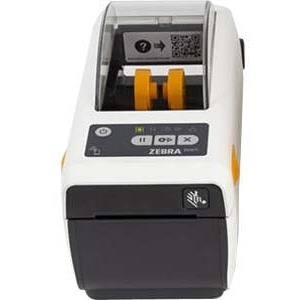

Product Model ZD611T-HC
Product Name ZD611T-HC Thermal Transfer Printer
Brand Name Zebra
Miscellaneous
Package Contents
ZD611T-HC Thermal Transfer Printer
Empty Ribbon Take-up core - Thermal Transfer Model (0.5 in.)
AC Power Supply
Power cord(s)
USB cable
Quick Start Guide
Regulatory Guide
Platform Supported iOS
Android
PC
Environmentally Friendly Yes
Environmental Certification REACH
RoHS
Cables Included USB
AC
Energy Star Yes
Power Cable Localization UK
AUS
JP
EU
Power Adapter Included Yes
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Tag Stock
Label
Gap
Wristband
Continuous Label
Notch
Continuous Receipt
Die-cut Label
Roll Fed
Fanfold
Media Sensor Multi-position Transmissive/Gap Sensor
Moveable Reflective/Black Mark Sensor
Maximum Label Width 57.15 mm
Maximum Label Length 39 mm
