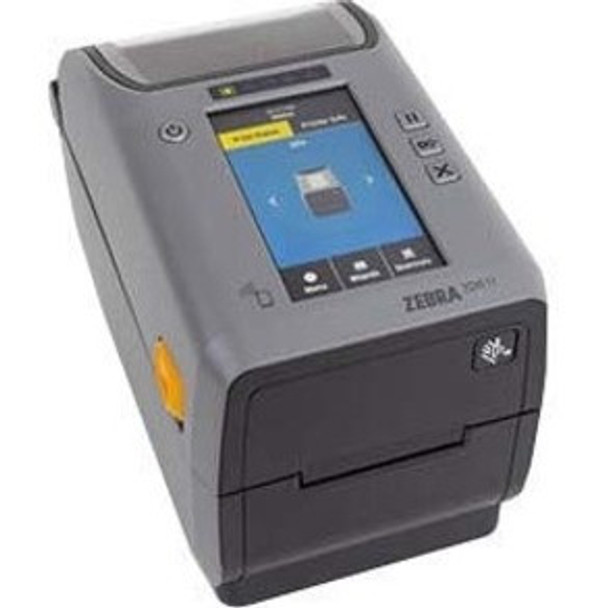

ZEBRA D/TOP ZD611 300DPI T/T BT/ETH/USB/WIFI
Specifications are provided for reference and are based on printer tests using Zebra brand supplies. Results may vary in actual application settings or when using other than recommended. Zebra supplies. Zebra recommends always qualifying any application with thorough testing.
Features
8 ips maximum print speed
ZPL II® and EPL2™ programming languages
Connectivity: Ethernet, USB 2.0, USB Host
4.3 in. full-color touch LCD (480 × 272 resolution), 5 status icons, 3 button user interface
Tested for robust tolerance to temperature, humidity, dust and other tough environmental challenges
Standard on thermal transfer models
Printer setup mobile app for Android™ and iOS via Bluetooth® Low Energy 5 (BLE) connection
BLE is best used for printer setup and light data transfer events. For best performance when printing, use a printer with Bluetooth Classic.
Technical Specs
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported
Link-OS
Warranty
Limited Warranty 2 Year
Environmental Conditions
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Interfaces/Ports
USB Yes
USB Host Yes
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Technical Information
Application/Usage Desktop
Barcode Symbology Supported EAN-8 With 2 or 5 Digit Extension
German Post Code
Code 93
Interleaved 2 of 5
Macro PDF-417
EAN-13
UPC-E
UPC-E with EAN 2 or 5 Digit Extension
Code 128 (A/B/C)
Maxi Code
UPC-A
EAN-8
Code 39
POSTNET
PDF417
Codabar
Plessey
UPC-A with 2 and 5 Add-on
UCC/EAN 128
RSS-14
Micro PDF-417
EAN-13 With 2 and 5 Digit Extension
Data Matrix
MSI-3
Maximum Print Width 54 mm (2.13")
Recommended Use Label Print
Connectivity Technology Wired & Wireless
Features LCD Display
Compact
Maximum Mono Print Speed 152 mm/s
Print Color Capability Monochrome
Maximum Print Length 991 mm
Optional Connectivity Serial (RS-232)
Real Time Clock Yes
Maximum Print Resolution (dpi) 300
Physical Characteristics
Weight (Approximate) 1.63 kg
Height 169.2 mm
Width 138.7 mm
Depth 242.9 mm
Fonts & Emulation
Language Emulation XML
ZPL
EZPL
ZPL II
EPL2
Network & Communication
Bluetooth Yes
Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Ethernet Technology Fast Ethernet
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD6A123-T0PB02EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD611
Product Name ZD611 Thermal Transfer Printer
Brand Name Zebra
Miscellaneous
Platform Supported iOS
Android
PC
Energy Star Yes
Power Cable Localization JP
AUS
EU
UK
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Roll Fed
Continuous Label
Tag Stock
Fanfold
Continuous Receipt
Die-cut Label
Label
Gap
Wristband
Linerless
Notch
Media Sensor Label Taken Sensor
Maximum Label Width 59.94 mm
Maximum Label Length 39 mm
