Product Description

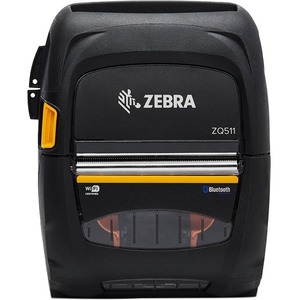

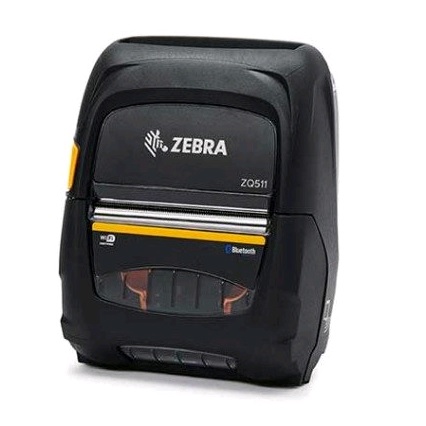

Zebra ZQ511 Mobile Label Printer, 3 Inch, Bluetooth 4
Zebra ZQ511 Direct Thermal Printer - Monochrome - Handheld - Label/Receipt Print - Bluetooth - 990.60 mm Print Length - 72 mm (2.83") Print Width - 127 mm/s Mono - 203 dpi - 80 mm Label Width
EXCEPTIONAL DURABILITY AND RELIABILITY FOR THE TOUGHEST ENVIRONMENTS
Zebra's ZQ500™ Series just got tougher. The premium ZQ511™ and ZQ521™ printers - both available in RFID models - give you best-in-class, rugged mobile printing for applications in any industry. Experience ultimate durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents, and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability and military-grade design mean this printer will work as hard as you do.
PRINT IT ALL: RECEIPTS, RFID TAGS, LABELS, AND LINERLESS
Optimized for on-demand receipt printing in 3" (72mm) and 4" (104mm) print widths, the ZQ511 and ZQ521 printers also print a variety of labels including UHF RFID tags for all your tracking needs. Zebra's comprehensive RFID portfolio is the only one to include mobile printers to help you reduce errors, and print and encodes RFID labels on the go.
TOUGH. RELIABLE. BUILT TO ENDURE.
The Most Rugged Printers on the Market
You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3' (1M), the ZQ511 and ZQ521 printers can withstand more than the average mobile printer.
Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case.
If this isn't enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6' to 10' and improves the IP rating to IP65.
Built to Last
New over-molding helps increase longevity and keeps your ZQ500 Series looking good over the life of the printer.
ON-THE-GO POWER, FUNCTIONALITY, AND PREMIUM PERFORMANCE
Get All the Benefits of Linerless Media
Eliminate waste and improve your company's green initiative with linerless printing. Linerless media also allows your workforce to spend less time disposing waste and more time on the task at hand - improving your workforce productivity. And, since there are more labels on a roll, there are fewer rolls of media to carry and fewer media roll changes.
Optimize Your Printing Quality and Power
Consistent outstanding print quality and performance are key. A new printhead and print mechanism, as well as a new processor and added memory, deliver it. Keep your employees on task and on schedule with the ZQ500 Series' secondary Bluetooth communication channel. Send print jobs to the printer via one channel, while a second channel performs additional functions such as device management.
Boost print speeds (5+ inches per minute) with the "draft mode" feature for text-only printing. Do more on a single battery charge with Zebra's patented Power Smart Print Technology™ that delivers the exact amount of power required for the highest quality printing. And, experience consistently sharp print quality-even in hot and cold temperatures with enhanced temperature compensation.
Power Your Team to Do More
The ZQ511 and ZQ521 printers' high-capacity 3250 mAh PowerPrecision+ battery powers your team - even during the longest shift. The printer also conserves battery life by entering sleep mode when not in use, then automatically wakes up when a print job is sent.
Features
Android, Apple iOS, and Windows Mobile connectivity
Bluetooth specification 4.1 EDR + LE
WLAN 802.11ac
Fast roaming 802.11r supported
528 MHz ARM processor
3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion)
USB On-The-Go ports (with optional strain relief)
Power Smart Print Technology - anticipates upcoming printing to optimize battery consumption and print speed
Direct thermal printing of barcodes, text and graphics
IP54 rated for protection against solid and liquid ingress
Technical Specs
Memory
Standard Memory 4 GB
Power Description
Power Source Battery
Warranty
Limited Warranty 2 Year
Miscellaneous
Platform Supported PC
Android
iOS
Network & Communication
Bluetooth Yes
Wireless LAN No
Near Field Communication (NFC) Yes
Physical Characteristics
Weight (Approximate) 630.5 g
Form Factor Handheld
Height 61 mm
Width 119.4 mm
Depth 149.9 mm
Technical Information
Maximum Print Width 72 mm (2.83")
Recommended Use Label/Receipt Print
Maximum Print Resolution 203 dpi
Maximum Mono Print Speed 127 mm/s
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 990.60 mm
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZQ51-BAE000A-00
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZQ511
Product Name ZQ511 Direct Thermal Printer
Product Series ZQ500
Brand Name Zebra
Media Types & Handling
Maximum Roll Diameter 51 mm
Media Type Black Mark
Gap
Linerless
Tag
Receipt
Label
Maximum Label Width 80 mm
