Product Description
Exceptional durability and reliability for the toughest environments
Zebra's ZQ500™ Series just got tougher. The premium ZQ511™ and ZQ521™ printers - both available in RFID models - give you best-in-class, rugged mobile printing for applications in any industry. Experience ultimate durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents, and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability, and military-grade design mean this printer will work as hard as you do.
Tough. Reliable. Built to Endure.
The Most Rugged Printers on the Market
You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3' (1M), the ZQ511 and ZQ521 printers can withstand more than the average mobile printer.
Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case.

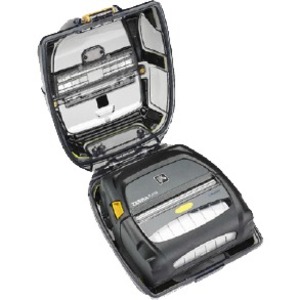

If this isn't enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6' to 10' and improves the IP rating to IP65.
Built to Last
New over-molding helps increase longevity and keeps your ZQ500 Series looking good over the life of the printer.
Print it All: Receipts, RFID tags, Labels, and Linerless
Optimized for on-demand receipt printing in 3" (72mm) and 4" (104mm) print widths, the ZQ511 and ZQ521 printers also print a variety of labels including UHF RFID tags for all your tracking needs. Zebra's comprehensive RFID portfolio is the only one to include mobile printers to help you reduce errors, and print and encode RFID labels on the go.
Features
Android, Apple iOS, and Windows Mobile connectivity
Bluetooth specification 4.1 EDR + LE
528 MHz ARM processor
3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion)
The printer can be used in any orientation
Supports vertical and horizontal printing
"Clamshell" design for easy media loading
Label odometer
Technical Specs
Battery Information
Battery Capacity 3250 mAh
Technical Information
Application/Usage Mobile
Barcode Symbology Supported Data Matrix
Code 49
Codabar
Interleaved 2 of 5
Code 39
UPC-A
GS1 DataBar
Code 93
Industrial 2 of 5
MSI
Plessey
QR Code
ISBT-128
Maxi Code
POSTNET
Micro PDF
EAN-13
Planet Code
LOGMARS
UPC-E
UCC/EAN 128
Codablock
Code 128
EAN With 2 and 5 Digit Extension
EAN-8
PDF417
Standard 2 of 5
TLC 39
Aztec Code
Maximum Print Width 104 mm (4.09")
Recommended Use Label/Receipt Print
Features Tear Bar
Rugged
Drop Resistant
LCD Display
Maximum Mono Print Speed 127 mm/s
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 990.60 mm
Real-Time Clock Yes
Maximum Print Resolution (dpi) 203
Display & Graphics
Display Screen Yes
Interfaces/Ports
USB Yes
Memory
Standard Memory 3.91 GB
Power Description
Power Source Battery
Software
Operating System Supported
Link-OS
Fonts & Emulation
Language Emulation CPCL
ZPL
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Environmental Conditions
Storage Relative Humidity 10% - 90%
Storage Temperature -30°C - 66°C
Operating Temperature -20°C - 55°C
Operating Relative Humidity 10% - 90%
Miscellaneous
Platform Supported Android
PC
iOS
Certifications & Standards
Emissions: FCC Part 15
Subpart B
EN55022 Class-B
EN55024
ICES- 003
EN55032
EN301489
Physical Characteristics
Weight (Approximate) 784.7 g
Height 66 mm
Width 154.9 mm
Depth 157.5 mm
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZQ52-BAE000A-00
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZQ521
Product Name ZQ521 Direct Thermal Printer
Product Series ZQ500
Brand Name Zebra
Media Types & Handling
Media Thickness 152.4 µm
Maximum Roll Diameter 57 mm
Media Type Black Mark
Gap
Linerless
Tag
Label
Receipt
Maximum Label Width 113 mm
What's in the box?
Zebra ZQ521 (ZQ52-BAE000A-00) 4" Bluetooth Mobile Label Printer
User Guide
