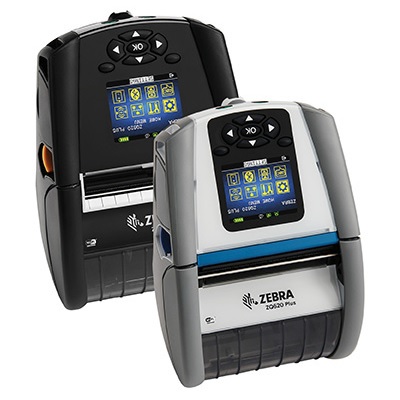

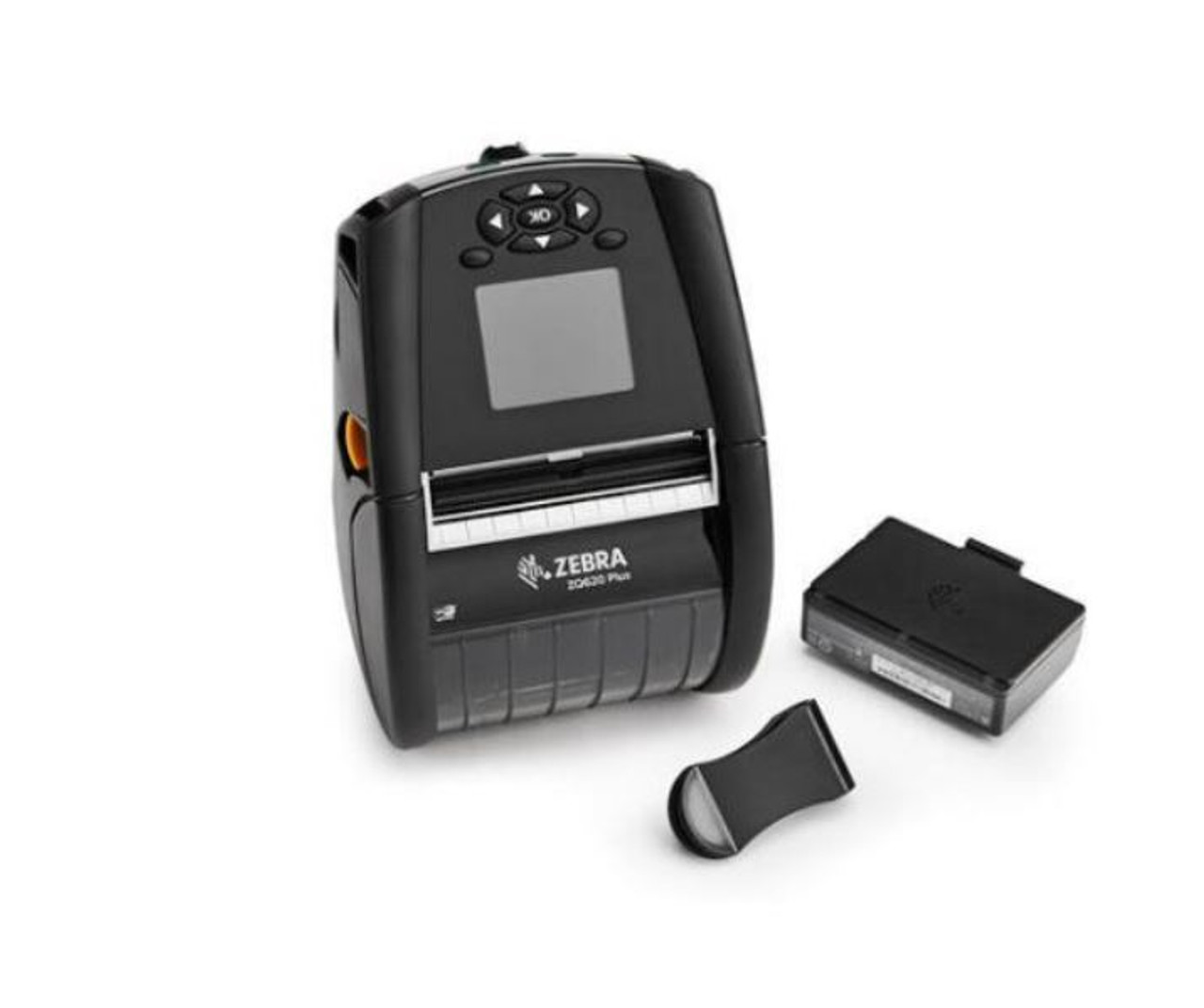

ZEBRA MOB ZQ620 PLUS 3IN BT4
Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease of use, and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, set up, and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.
Premium Features for Maximum Productivity
The Latest Wireless Connections
The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.
Industry-Standard 802.11r Fast Roaming for Seamless Access
With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
Instant Wake-Up Over Wi-Fi
This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a Snap
The ZQ600/ZQ600 Plus Series provides a large display, a user-friendly interface, and an easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop, and industrial printers.
Business Tough-Built for All-Day Every Day Enterprise Use
While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display, and a seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
Unsurpassed Battery Power Management
Do More on a Single Charge
With the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power
Features
Apple® iOS, Android™ and Windows® Mobile connectivity
Direct thermal printing of barcodes, text, and graphics
CPCL, EPL™ and ZPL® programming languages
512 MB Flash supports downloadable programs, receipt formats, fonts, and graphics (128 MB available for user storage)
Built-in battery charger
Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
Black mark and gap media sensing using fixed center position sensors
Easy-to-use peel and present mode
Label present sensor for issuing labels one at a time
Tear bar for easy media dispensing
Technical Specs
Battery Information
Battery Capacity 3250 mAh
Display & Graphics
Display Screen Yes
Technical Information
Application/Usage Mobile
Industrial
Desktop
Barcode Symbology Supported TLC 39
Interleaved 2 of 5
Codabar (NW-7)
POSTNET
PDF417
Code 93
Code 39
EAN-8
EAN-13
GS1 DataBar
UPC E with 2 and 5 add on
UCC/EAN 128
Micro PDF-417
MSI PLESSEY
AZTEC
QR Code
UPC-A
Code 128
2 and 5 Digits Add-on
Data Matrix
Maxi Code
FIM
Maximum Print Width 72 mm (2.83")
Recommended Use Label/Receipt Print
Features Shoulder Strap
Dust Resistant
Water Resistant
Belt Clip
Maximum Mono Print Speed 115 mm/s
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 813 mm
Character Sets Universal Font Scaling Technology (UFST)
Agfa Monotype
Optional Connectivity Wireless LAN
Ethernet
Serial (RS-232)
USB
Ingress Protection (IP) Rating IP54
Maximum Print Resolution (dpi) 203
Memory
Standard Memory 256 MB
Power Description
Power Source Battery
Software
Operating System Supported Link-OS
Warranty
Limited Warranty 1 Year
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Environmental Conditions
Storage Relative Humidity 10% - 90%
Storage Temperature -25°C - 65°C
Operating Temperature -20°C - 50°C
Operating Relative Humidity 10% - 90%
Fonts & Emulation
Language Emulation ZBI 2.0
CPCL
ZPL
EPL
Miscellaneous
Platform Supported iOS
Android
PC
Certifications & Standards
Emissions:
FCC Part 15
Subpart B
EN55022 Class-B
EN60950
EN55024
VCCI class B
Susceptibility:
EN55024
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
Safety:
CE
TUV
CSA
Physical Characteristics
Weight (Approximate) 730 g
Height 77 mm
Width 117.9 mm
Depth 173.7 mm
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZQ62-AAFAA04-00
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZQ620 Plus
Product Name ZQ620 Plus Direct Thermal Printer
Product Series ZQ600
Brand Name Zebra
Media Types & Handling
Media Thickness 165.1 µm
Maximum Roll Diameter 66.04 mm
Media Type Label
Die-cut Label
Black Mark
Receipt
Black Bar
Linered Media
Tag
Gap
Media Sensor Gap Sensor
Black Mark Sensor
Maximum Label Width 79.38 mm
Maximum Label Length 812.80 mm
