Product Description

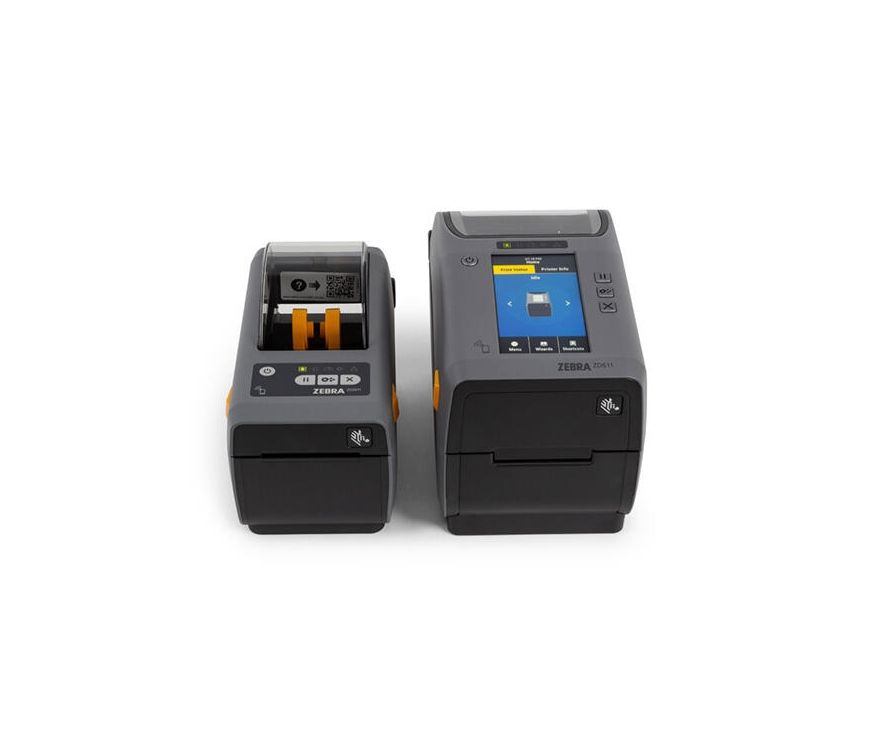

ZEBRA D/TOP ZD611 203DPI D/T BT/ETH/USB PEEL
Invest in the best: premium features, maximum performance, and unmatched security for years of quality printing
You need a premium, compact printer that's feature-rich and built to perform flawlessly - day in and day out. Don't compromise. Get it all with Zebra's ZD611 desktop printers, featuring an innovative new architecture to power our ever-expanding printer capabilities and software. They offer unmatched security that's constantly evolving to safeguard your sensitive data and shield you from cyberattacks. And, add enhanced features, connectivity and media-handling options whenever you're ready. The full-color LCD touch display with intuitive menu - standard on all thermal transfer models - and increased remote-management capabilities make ZD611 printers easy to use. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security.
Expect the Best | Premium Printing Performance

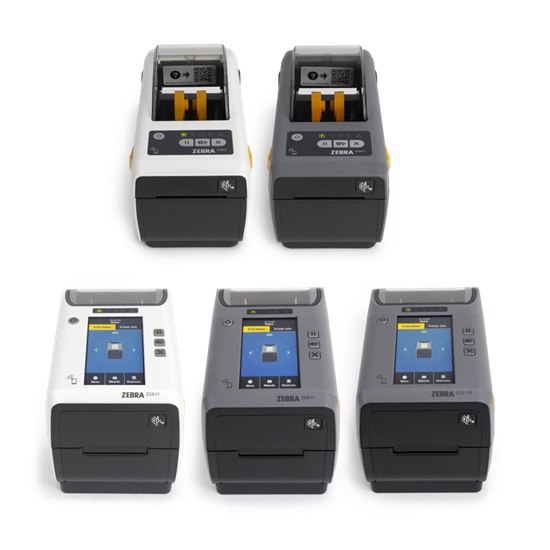

Rely on the ZD611 to help you power through - day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD611 stands apart. Available in direct thermal, thermal transfer, linerless, healthcare and RFID models, the ZD611 supports a wide variety of use cases.
Simple to Setup, Easy to Maintain | Operate with Ease, Securely
Backed by Zebra's innovative Print DNA software suite, ZD611 printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface is easy to use with minimal training and allows you to see status at a glance with the five LED icons. Take advantage of robust remote management capabilities that alleviate IT burdens. And, built-in security hardens your infrastructure from cyberattacks.
Load Media Easily
Color-coded touch points and a new media-handling design guide you through speedy media changes to keep your printers operational and your workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.
Your Future Printing Starts Here | Technology for Today, Innovation for Tomorrow
Technology is constantly advancing and so will ZD611 printers. They're engineered to power future printing at the highest level with an innovative architecture that can perform more operations simultaneously and evolve with emerging technology.
Engineered for Outstanding Print Quality
Like Zebra's industrial printers, the ZD611 thermal transfer printer includes a media dancer to ensure maximum quality on every label and tag, regardless of print speed. Further boost print quality with the optional 300 dpi print resolution.
Features
Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
4.3" full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface (thermal transfer and RFID models)
5 status icons, 3 button user interface (direct thermal model
Ethernet, USB 2.0, USB Host
Printer setup a mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection*
BLE is intended for use with the Zebra printer setup mobile app only
Real-Time Clock (RTC)
Media dancer for excellent print quality (thermal transfer models)
OpenACCESS™ for easy media loading
Technical Specs
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported
Link-OS
Warranty
Limited Warranty 2 Year
Interfaces/Ports
USB Yes
USB Host Yes
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Technical Information
Application/Usage Desktop
Barcode Symbology Supported EAN-8
Maxi Code
Standard 2 of 5
POSTNET
Interleaved 2 of 5
Planet Code
UPC-E
EAN-13
Micro PDF
LOGMARS
Codablock
Code 11
EAN With 2 and 5 Digit Extension
QR Code
AZTEC
Code 128
PDF417
Code 93
Code 49
Plessey
UPC-A
ISBT-128
Code 39
MSI
Codabar
UPC
Data Matrix
Industrial 2 of 5
Maximum Print Width 56 mm (2.20")
Recommended Use Label/Receipt Print
Connectivity Technology Wired
Features Dual Wall Frame
LCD Display
Dispenser
Maximum Mono Print Speed 203 mm/s
Peel Facility Yes
Print Color Capability Monochrome
Optional Connectivity Wireless LAN
Serial (RS-232)
Real-Time Clock Yes
Maximum Print Resolution (dpi) 203
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Fast Ethernet
Near Field Communication (NFC) Yes
Physical Characteristics
Weight (Approximate) 1.07 kg
Height 151 mm
Width 115 mm
Depth 220 mm
Fonts & Emulation
Language Emulation XML
ZPL
EPL
ZPL II
ZBI
EZPL
EPL2
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZD6A022-D1PE00EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD611
Product Name ZD611 Direct Thermal Printer
Brand Name Zebra
Miscellaneous
Package Contents
ZD611 Direct Thermal Printer
AC Power Supply
Power Cord
USB Cable
Quick Start Guide
Regulatory Guide
Platform Supported Android
iOS
PC
Environmentally Friendly Yes
Environmental Certification REACH
RoHS
Cables Included USB
Energy Star Yes
Power Cable Localization UK
AUS
JP
EU
Power Adapter Included Yes
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Fanfold
Roll Fed
Die-cut Label
Wristband
Continuous Receipt
Continuous Label
Tag Stock
Receipt
Label
Media Sensor Multi-position Transmissive/Gap Sensor
Moveable Reflective/Black Mark Sensor
Full-Width Sensor
Maximum Label Width 57 mm
Maximum Label Length 991 mm
