Product Description
Invest in the best: premium features, maximum performance, and unmatched security for years of quality printing

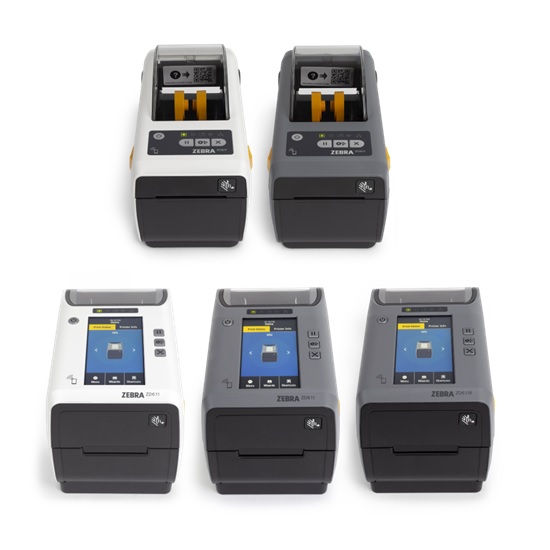

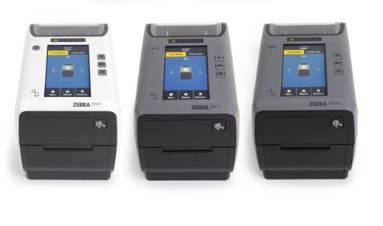

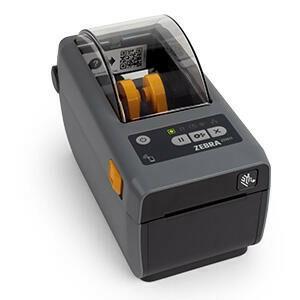

You need a premium, compact printer that's feature-rich and built to perform flawlessly - day in and day out. Don't compromise. Get it all with Zebra's ZD611 desktop printers, featuring an innovative new architecture to power our ever-expanding printer capabilities and software. They offer unmatched security that's constantly evolving to safeguard your sensitive data and shield you from cyberattacks. And, add enhanced features, connectivity and media-handling options whenever you're ready. The full-color LCD touch display with intuitive menu - standard on all thermal transfer models - and increased remote-management capabilities make ZD611 printers easy to use. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security.
Expect the Best | Premium Printing Performance
Rely on the ZD611 to help you power through - day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD611 stands apart. Available in direct thermal, thermal transfer, linerless, healthcare and RFID models, the ZD611 supports a wide variety of use cases.
Simple to Setup, Easy to Maintain | Operate with Ease, Securely
Backed by Zebra's innovative Print DNA software suite, ZD611 printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface is easy to use with minimal training and allows you to see status at a glance with the five LED icons. Take advantage of robust remote management capabilities that alleviate IT burdens. And, built-in security hardens your infrastructure from cyberattacks.
Load Media Easily
Color-coded touch points and a new media-handling design guide you through speedy media changes to keep your printers operational and your workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.
Your Future Printing Starts Here | Technology for Today, Innovation for Tomorrow
Technology is constantly advancing and so will ZD611 printers. They're engineered to power future printing at the highest level with an innovative architecture that can perform more operations simultaneously and evolve with emerging technology.
Engineered for Outstanding Print Quality
Like Zebra's industrial printers, the ZD611 thermal transfer printer includes a media dancer to ensure maximum quality on every label and tag, regardless of print speed. Further boost print quality with the optional 300 dpi print resolution.
Features
Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
4.3" full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface (thermal transfer and RFID models)
5 status icons, 3 button user interface (direct thermal model
Ethernet, USB 2.0, USB Host
Printer setup a mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection*
BLE is intended for use with the Zebra printer setup mobile app only
Real-Time Clock (RTC)
Media dancer for excellent print quality (thermal transfer models)
OpenACCESS™ for easy media loading
Technical Specs
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported
Link-OS
Warranty
Limited Warranty 2 Year
Interfaces/Ports
USB Yes
USB Host Yes
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Environmental Conditions
Storage Relative Humidity 5% - 95%
Storage Temperature -40°C - 60°C
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Physical Characteristics
Weight (Approximate) 1.07 kg
Height 151 mm
Width 115 mm
Depth 220 mm
Technical Information
Application/Usage Desktop
Barcode Symbology Supported POSTNET
Industrial 2 of 5
Planet Code
AZTEC
Interleaved 2 of 5
EAN-8
Codabar
QR Code
Maxi Code
Code 39
PDF417
Code 128
Codablock
UPC-E
MSI
Code 93
Standard 2 of 5
ISBT-128
EAN With 2 and 5 Digit Extension
UPC
LOGMARS
EAN-13
Code 49
Data Matrix
Micro PDF
Code 11
Plessey
UPC-A
Maximum Print Width 56 mm (2.20")
Recommended Use Label/Receipt Print
Connectivity Technology Wired & Wireless
Features LCD Display
Dual Wall Frame
Maximum Mono Print Speed 203 mm/s
Print Color Capability Monochrome
Optional Connectivity Serial (RS-232)
Real-Time Clock Yes
Maximum Print Resolution (dpi) 203
Network & Communication
Bluetooth Yes
Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Ethernet Technology Fast Ethernet
Near Field Communication (NFC) Yes
Fonts & Emulation
Language Emulation ZPL
ZPL II
EPL2
EPL
ZBI
XML
EZPL
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZD6A022-D2PB02EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD611
Product Name ZD611 Direct Thermal Printer
Brand Name Zebra
Miscellaneous
Package Contents
ZD611 Direct Thermal Printer
AC Power Supply
Power Cord
USB Cable
Quick Start Guide
Regulatory Guide
Platform Supported PC
Android
iOS
Environmentally Friendly Yes
Environmental Certification REACH
RoHS
Cables Included USB
Energy Star Yes
Power Cable Localization JP
AUS
UK
EU
Power Adapter Included Yes
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Continuous Receipt
Continuous Label
Label
Die-cut Label
Wristband
Fanfold
Roll Fed
Receipt
Tag Stock
Media Sensor Multi-position Transmissive/Gap Sensor
Moveable Reflective/Black Mark Sensor
Full-Width Sensor
Maximum Label Width 57 mm
Maximum Label Length 991 mm
