Product Description

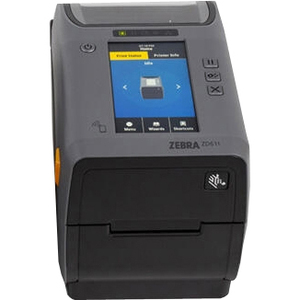

Thermal Transfer Printer 74M ZD611 Color Touch LCD 203 dpi USB USB Host Ethernet 802.11ac BT4 All Countries Except USA Canada and Japan Cutter APAC Cord Bundle EU UK AUS JP Swiss Font EZPL
Specifications are provided for reference and are based on printer tests using Zebra brand
supplies. Results may vary in actual application settings or when using other than recommended
Zebra supplies. Zebra recommends always qualifying any application with thorough testing.
Features
8 ips maximum print speed
ZPL II® and EPL2™ programming languages
Connectivity: Ethernet, USB 2.0, USB Host
4.3 in. full-color touch LCD (480 × 272 resolution), 5 status icons, 3 button user interface
Tested for robust tolerance to temperature, humidity, dust and other tough environmental challenges
Standard on thermal transfer models
Printer setup mobile app for Android™ and iOS via Bluetooth® Low Energy 5 (BLE) connection
BLE is best used for printer setup and light data transfer events. For best performance when printing, use a printer with Bluetooth Classic.
Technical Specs
Cutter
Cutter Yes
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported
Link-OS
Warranty
Limited Warranty 2 Year
Environmental Conditions
Operating Temperature 4.4°C - 40.6°C
Operating Relative Humidity 10% - 90%
Interfaces/Ports
USB Yes
USB Host Yes
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Display Screen Type LCD
Technical Information
Application/Usage Desktop
Barcode Symbology Supported Interleaved 2 of 5
UPC-A
Code 93
UPC-A with 2 and 5 Add-on
Data Matrix
MSI-3
UPC-E
EAN-8
UCC/EAN 128
PDF417
Codabar
Maxi Code
Plessey
EAN-8 With 2 or 5 Digit Extension
Code 39
Code 128 (A/B/C)
EAN-13
German Post Code
RSS-14
EAN-13 With 2 and 5 Digit Extension
POSTNET
Micro PDF-417
UPC-E with EAN 2 or 5 Digit Extension
Macro PDF-417
Maximum Print Width 56 mm (2.20")
Recommended Use Label Print
Connectivity Technology Wired & Wireless
Features Compact
LCD Display
Maximum Mono Print Speed 203 mm/s
Print Color Capability Monochrome
Maximum Print Length 991 mm
Optional Connectivity Serial (RS-232)
Real Time Clock Yes
Maximum Print Resolution (dpi) 203
Physical Characteristics
Weight (Approximate) 1.63 kg
Height 169.2 mm
Width 138.7 mm
Depth 242.9 mm
Fonts & Emulation
Language Emulation XML
EZPL
EPL2
ZPL II
ZPL
Network & Communication
Bluetooth Yes
Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Ethernet Technology Fast Ethernet
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD6A122-T2PB02EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD611
Product Name ZD611 Thermal Transfer Printer
Brand Name Zebra
Miscellaneous
Platform Supported Android
PC
iOS
Energy Star Yes
Power Cable Localization JP
UK
EU
AUS
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 127 mm
Media Type Continuous Receipt
Gap
Die-cut Label
Wristband
Linerless
Notch
Tag Stock
Roll Fed
Continuous Label
Label
Fanfold
Media Sensor Label Taken Sensor
Maximum Label Width 59.94 mm
Maximum Label Length 39 mm
What's in the box?
ZD611 Direct Thermal Printer
AC Power Supply
Power Cord
USB Cable
Quick Start Guide
Regulatory Guide
Product Specifications
Max. Print Speed 203mm/s
Max. Print Res 203 dpi
256MB Standard Memory
4.3" full-color touch LCD
ZPL II, EPL2, EZPL & XML
USB, Network & Wireless
2 Years Limited Warranty
